User’s Manual of GS-5220 LCD Series
331
4.10 Access Control Lists
ACL is an acronym for Access Control List. It is the list table of ACEs, containing access control entries that specify
individual users or groups permitted or denied to specific traffic objects, such as a process or a program.
Each accessible traffic object contains an identifier to its ACL. The privileges determine whether there are
specific traffic object access rights.
ACL implementations can be quite complex, for example, when the ACEs are prioritized for the various situation.
In networking, the ACL refers to a list of service ports or network services that are available on a host or server,
each with a list of hosts or servers permitted or denied to use the service. ACL can generally be configured to
control inbound traffic, and in this context, they are similar to firewalls.
ACE is an acronym for Access Control Entry. It describes access permission associated with a particular ACE ID.
There are three ACE frame types (Ethernet Type, ARP, and IPv4) and two ACE actions (permit and deny). The
ACE also contains many detailed, different parameter options that are available for individual application.
4.10.1 Access Control List Status
This page shows the ACL status by different ACL users. Each row describes the ACE that is defined. It is a conflict
if a specific ACE is not applied to the hardware due to hardware limitations. The maximum number of ACEs is
512 on each switch. The Voice VLAN OUI Table screen in Figure 4-10-1 appears.

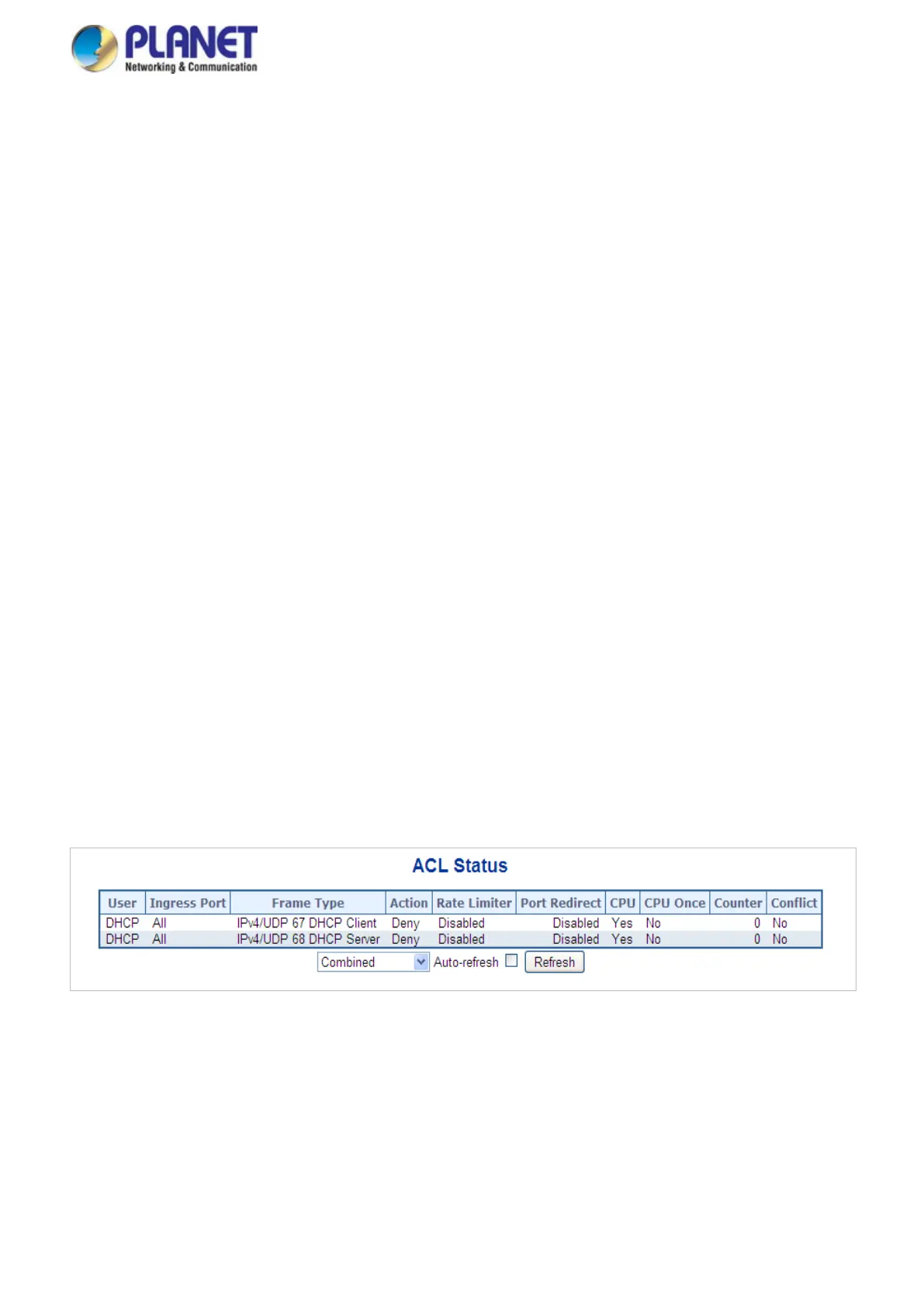

Figure 4-10-1: ACL Status Page Screenshot
