4.13.2 MAC Address Table Status
Dynamic MAC Table
Entries in the MAC Table are shown on this page. The MAC Table contains up to 16k entries, and is sorted first by
VLAN ID, then by MAC address. The MAC Address Table screen in Figure 4-13-2 appears.

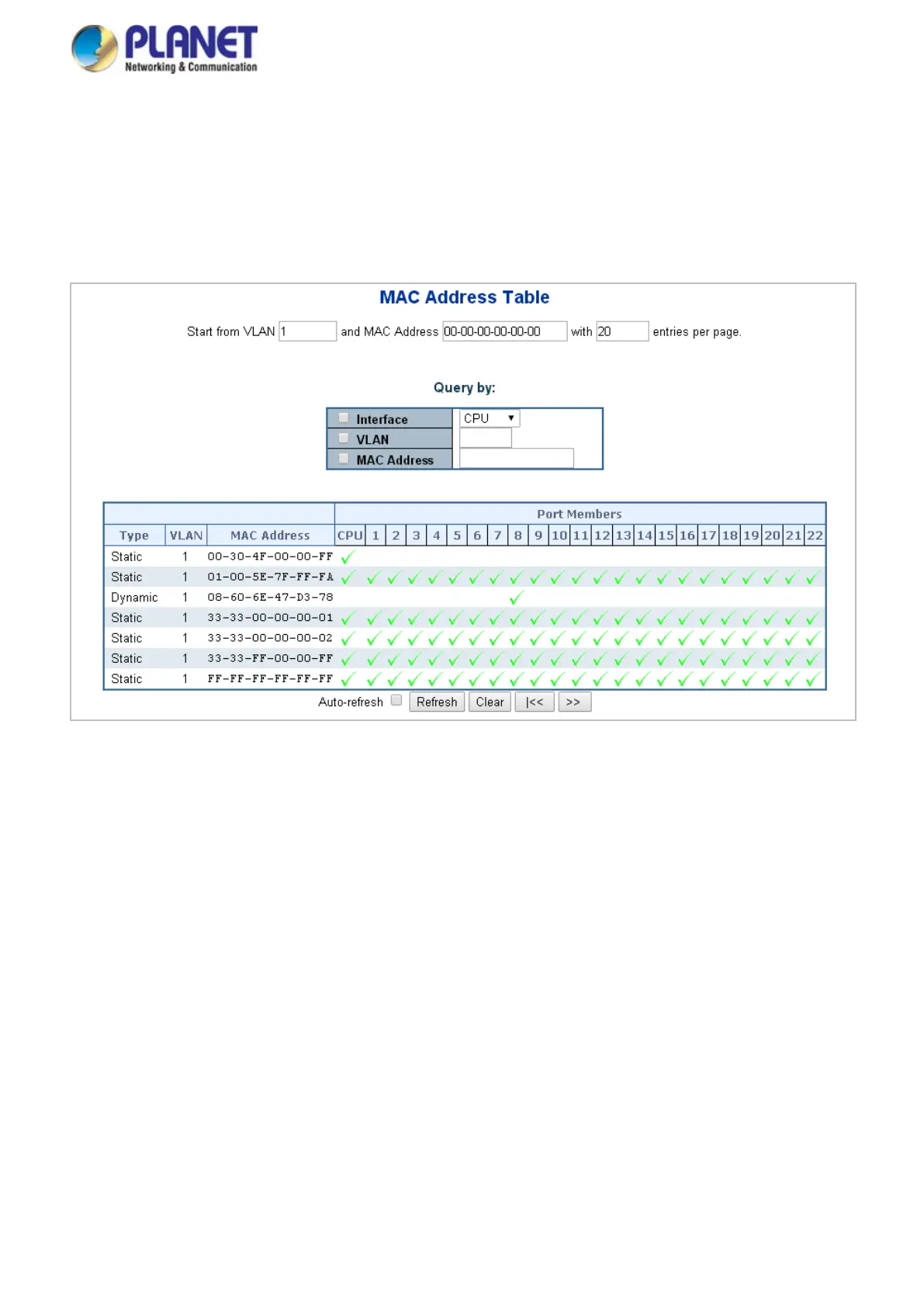

Figure 4-13-2: MAC Address Table Status Page Screenshot
Navigating the MAC Table
Each page shows up to 999 entries from the MAC table, default being 20, selected through the "entries per
page" input field. When first visited, the web page will show the first 20 entries from the beginning of the
MAC Table. The first displayed will be the one with the lowest VLAN ID and the lowest MAC address found
in the MAC Table.
The "Start from MAC address" and "VLAN" input fields allow the user to select the starting point in the
MAC Table. Clicking the “Refresh” button will update the displayed table starting from that or the closest
next MAC Table match.
In addition, the two input fields will - upon a “Refresh” button click - assume the value of the first displayed
entry, allowing for continuous refresh with the same start address.
