4.6.8 MAC-based VLAN
The MAC-based VLAN entries can be configured here. This page allows for adding and deleting MAC-based VLAN
entries and assigning the entries to different ports. This page shows only static entries. The MAC-based VLAN
screen in Figure 4-6-18 appears.

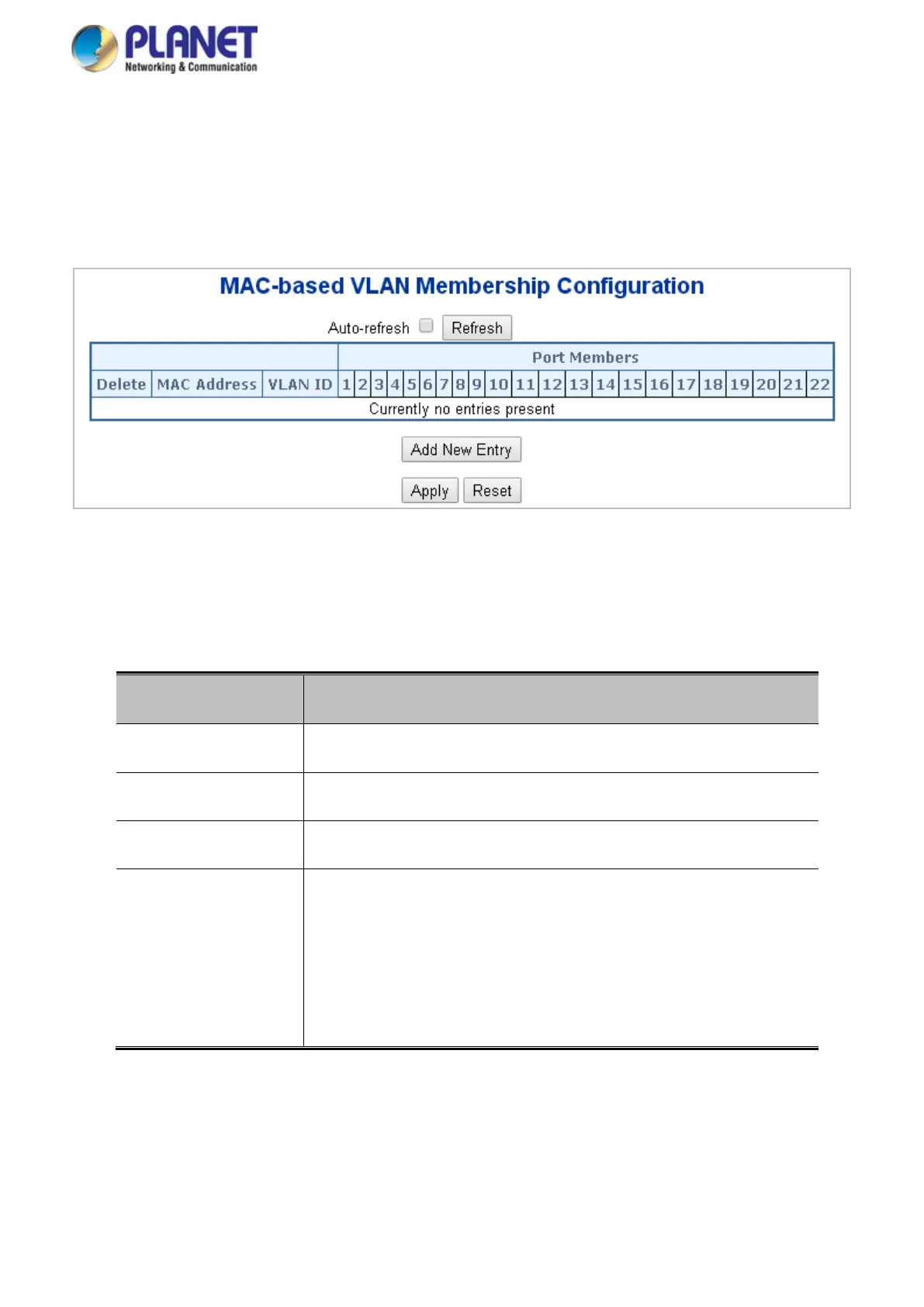

Figure 4-6-18: MAC-based VLAN Membership Configuration Page Screenshot
The page includes the following fields:
Object Description
• Delete
To delete a MAC-based VLAN entry, check this box and press save.
• MAC Address
Indicates the MAC address.
• VLAN ID
Indicates the VLAN ID.
• Port Members
A row of check boxes for each port is displayed for each MAC-based
VLAN entry. To include a port in a MAC-based VLAN, check the box. To
remove or exclude the port from the MAC-based VLAN, make sure the
box is unchecked. By default, no ports are members, and all boxes are
unchecked.
