4.10.3 ACE Configuration
Configure an ACE (Access Control Entry) on this page. An ACE consists of several parameters. These
parameters vary according to the frame type that you select. First select the ingress port for the ACE,
and then select the frame type. Different parameter options are displayed depending on the frame type
selected. A frame that hits this ACE matches the configuration that is defined here. The ACE
Configuration screen in Figure 4-10-3 appears.

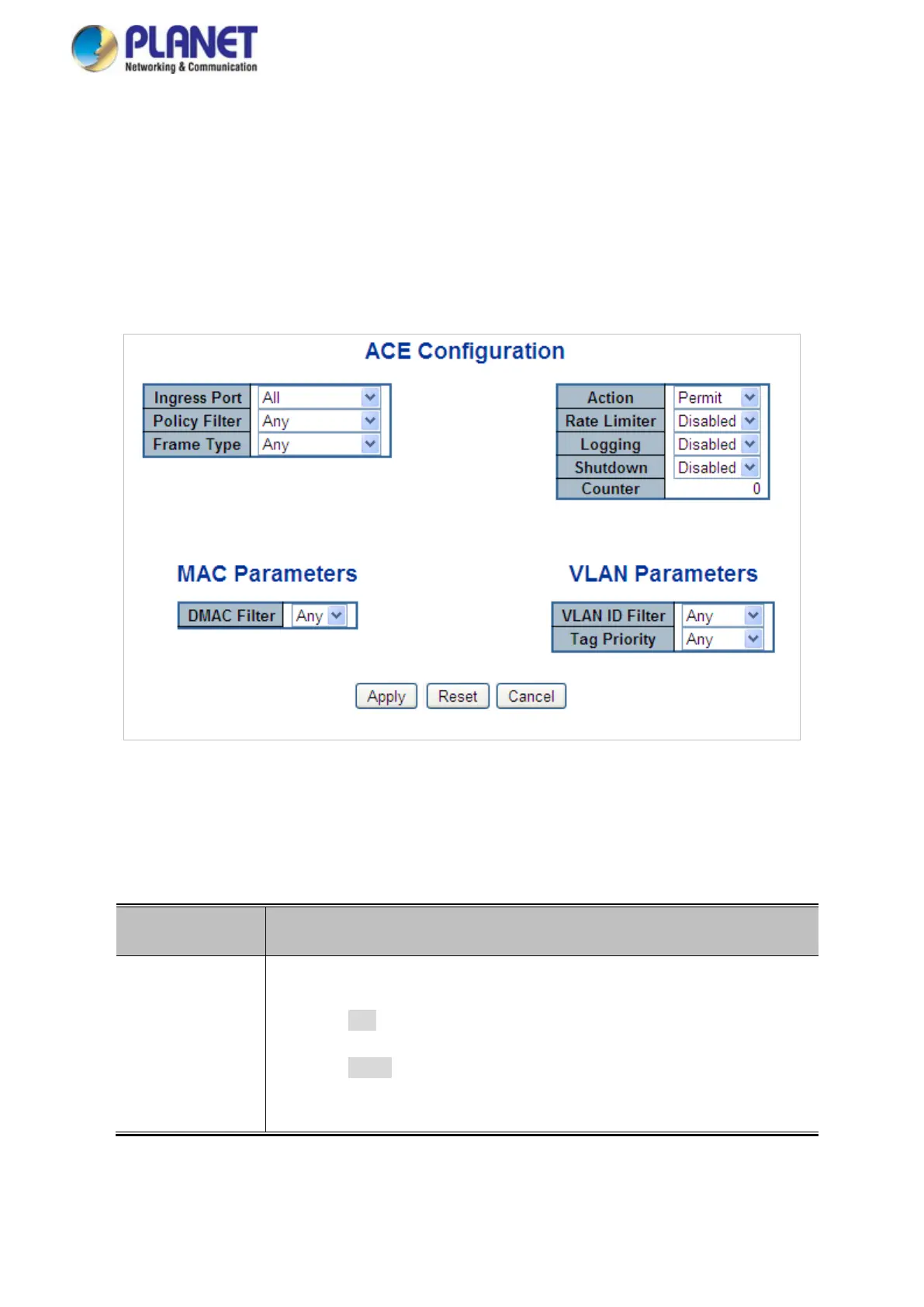

Figure 4-10-3: ACE Configuration Page Screenshot
The page includes the following fields:
Object Description
• Ingress Port
Select the ingress port for which this ACE applies.
â– Any: The ACE applies to any port.
â– Port n: The ACE applies to this port number, where n is the
number of the switch port.
