‧ Normal -- Rapid Spanning Tree Protocol (RSTP) : Detects and uses of network topologies that provide
faster spanning tree convergence, without creating forwarding loops.
‧ Extension – Multiple Spanning Tree Protocol (MSTP) : Defines an extension to RSTP to further
develop the usefulness of virtual LANs (VLANs). This "Per-VLAN" Multiple Spanning Tree Protocol
configures a separate Spanning Tree for each VLAN group and blocks all but one of the possible
alternate paths within each Spanning Tree.
The STP System Configuration screen in Figure 4-7-4 appears.

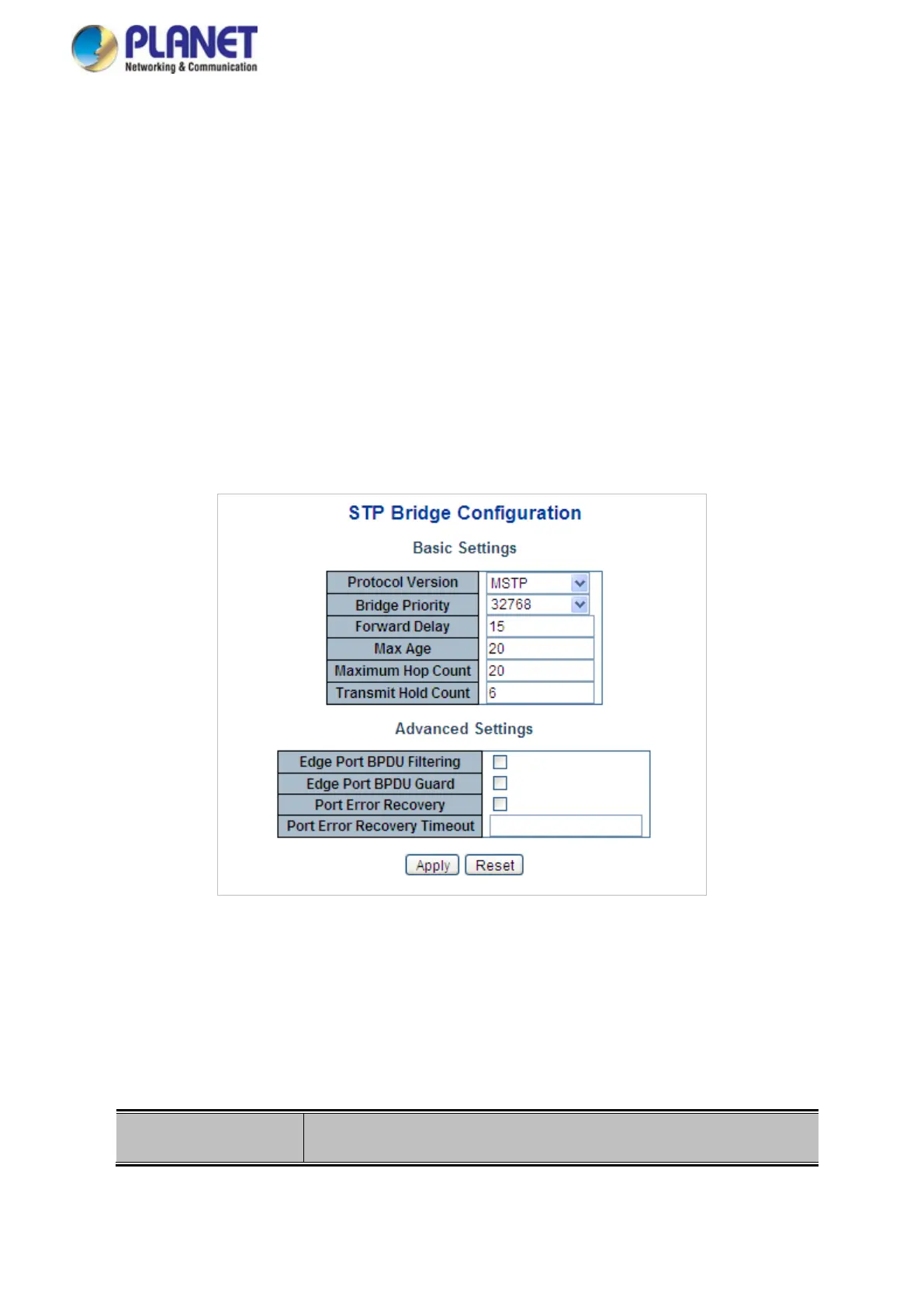

Figure 4-7-4: STP Bridge Configuration Page Screenshot
The page includes the following fields:
Basic Settings
Object Description
