User’s Manual of GS-5220 LCD Series
324

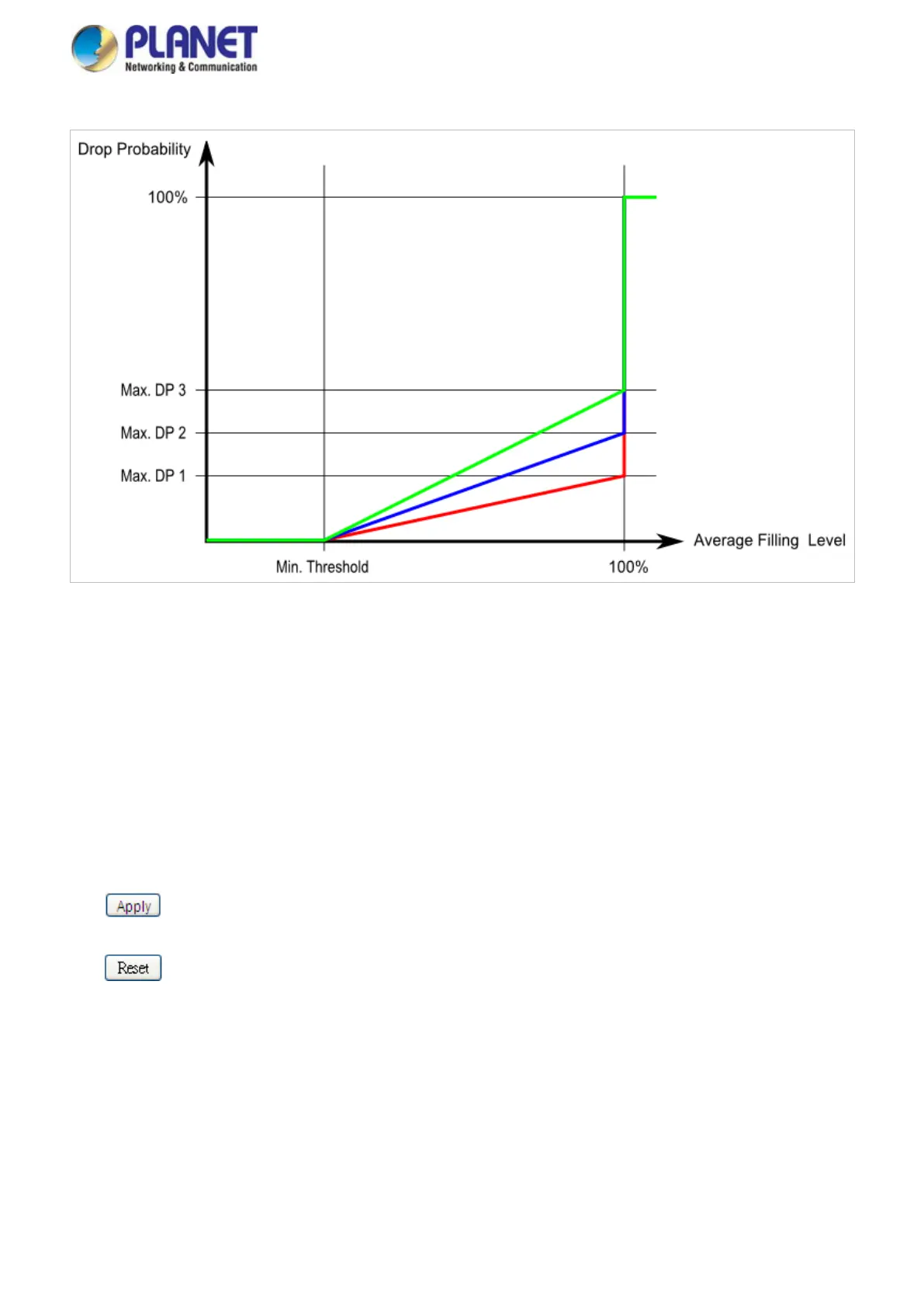

Max. DP 1-3 is the drop probability when the average queue filling level is 100%. Frames marked with Drop
Precedence Level 0 are never dropped. Min. Threshold is the average queue filling level where the queues
randomly start dropping frames. The drop probability for frames marked with Drop Precedence Level n increases
linearly from zero (at Min. Threshold average queue filling level) to Max. DP n (at 100% average queue filling
level).
Buttons
: Click to apply changes
: Click to undo any changes made locally and revert to previously saved values.
