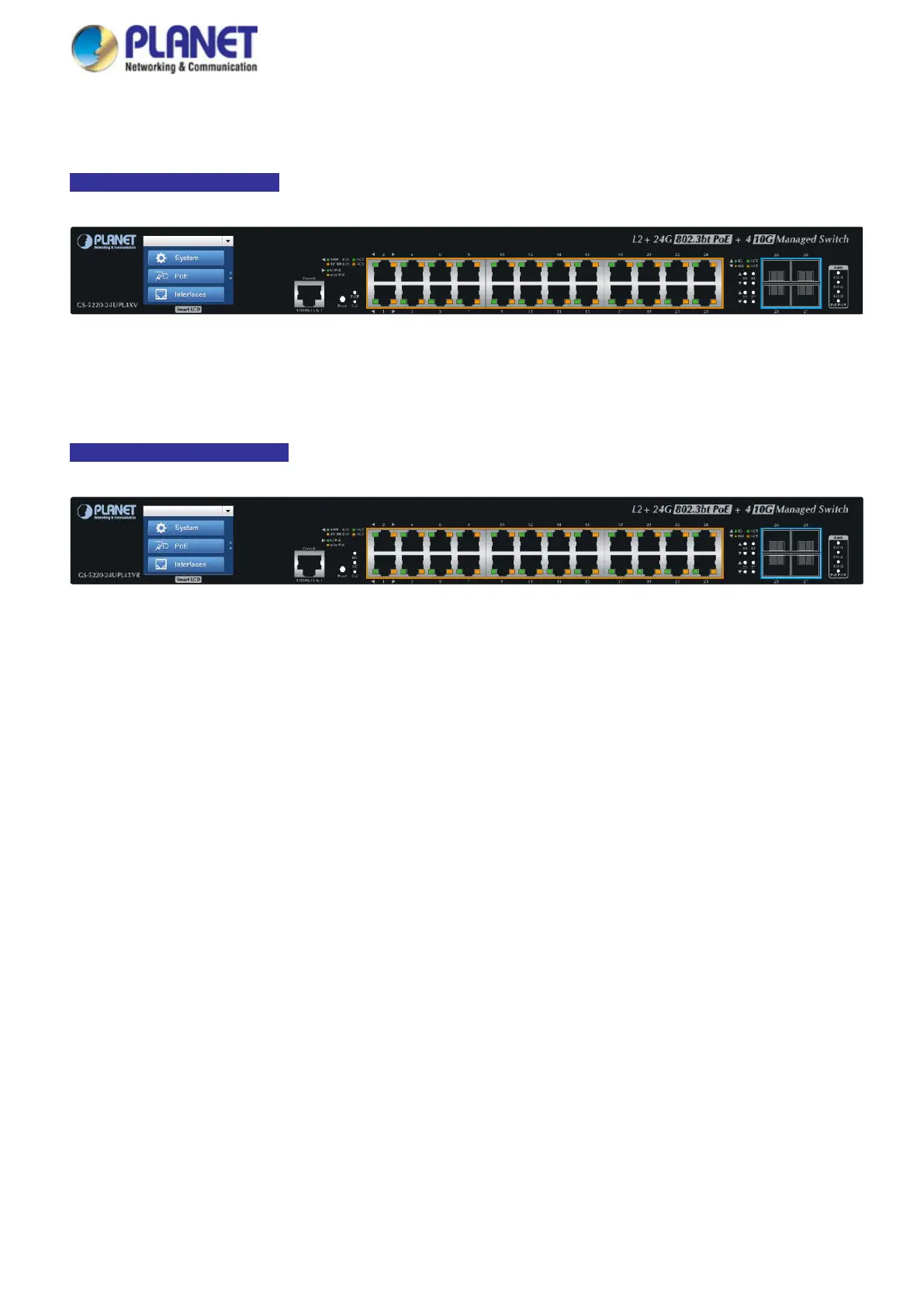

GS-5220-24UPL4XV Front Panel
Figure 2-1-15: Front Panel of GS-5220-24UPL4XV
GS-5220-24UPL4XVR Front Panel
Figure 2-1-16: Front Panel of GS-5220-24UPL4XVR
■ 10 Gigabit TP interface
10/100/1000BASE-T Copper, RJ45 twisted-pair: Up to 100 meters.
■ 10 Gigabit SFP+ slot
10GBASE-SR/LR mini-GBIC slot, SFP+ (Small Factor Pluggable Plus) Transceiver module supports from 300
meters (multi-mode fiber) up to 10 kilometers (single mode fiber)
■ Console port
The console port is a RJ45 port connector. It is an interface for connecting a terminal directly. Through the
console port, it provides rich diagnostic information including IP address setting, factory reset, port
management, link status and system setting. Users can use the attached DB9 to RJ45 console cable in the
