User’s Manual of GS-5220 LCD Series
63
 10/100/1000BASE-T Interfaces (Port-1 to Port-24)
LED Color Function
Ethernet
Green
Lights: To indicate that the port is operating at 1000Mbps.
Blinks: To indicate that the switch is actively sending or receiving data over
that port.
Orange
Lights: To indicate that the port is operating at 10/100Mbps.
Blinks: To indicate that the switch is actively sending or receiving data over
that port.
 1/10GBASE-SR/LR SFP+ Interfaces (Port-25 to Port-28)
LED Color Function
10G Orange
Lights: To indicate that the port is operating at 10Gbps.
Blinks: To indicate that the switch is actively sending or receiving data over
that port.
1000 Green
Lights: To indicate that the port is operating at 1000Mbps.
Blinks: To indicate that the switch is actively sending or receiving data over
that port.

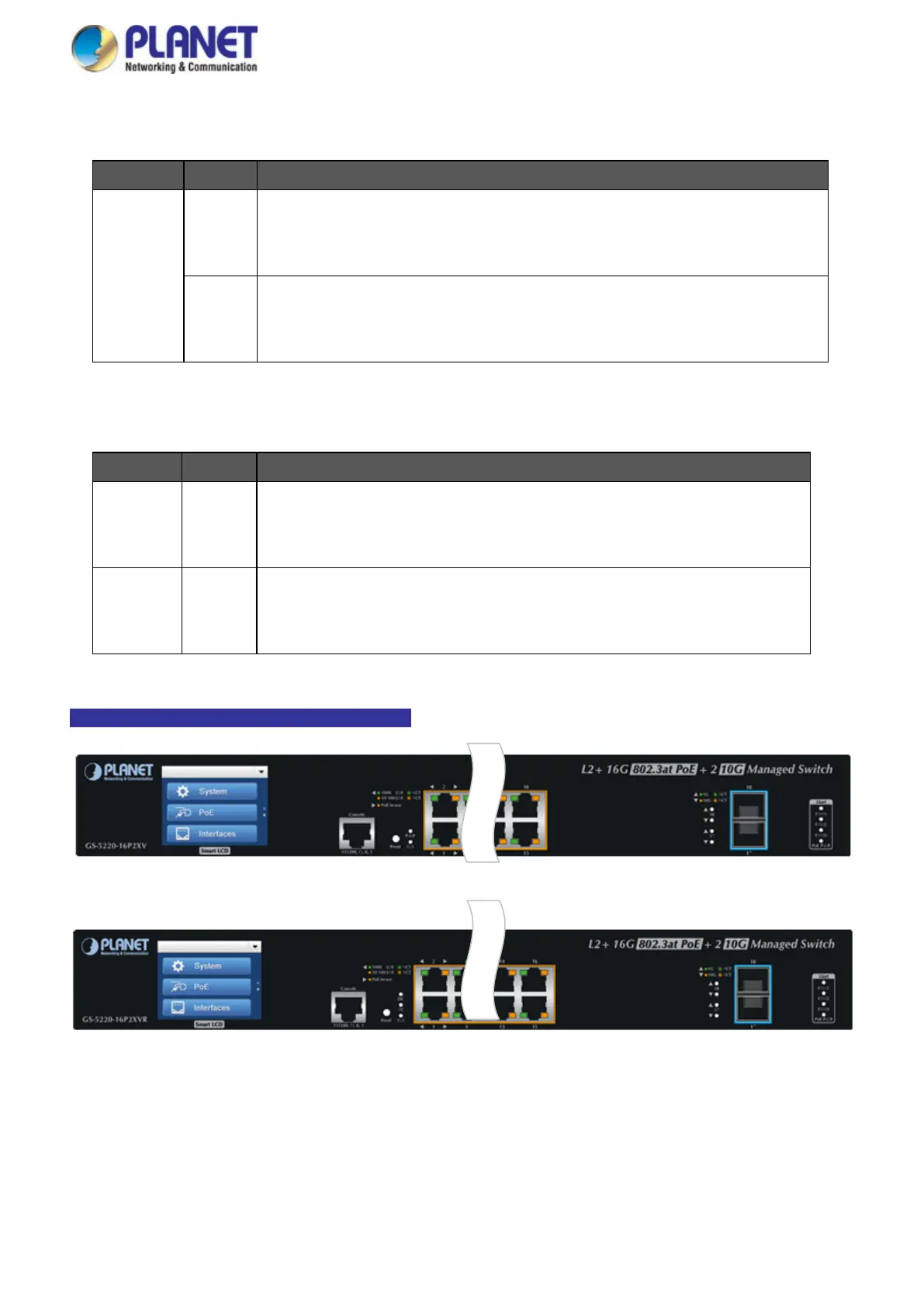

GS-5220-16P2XV / GS-5220-16P2XVR LED Indication
Figure 2-1-21: GS-5220-16P2XV LED on Front Panel
Figure 2-1-22: GS-5220-16P2XVR LED on Front Panel
