User’s Manual of GS-5220 LCD Series
67

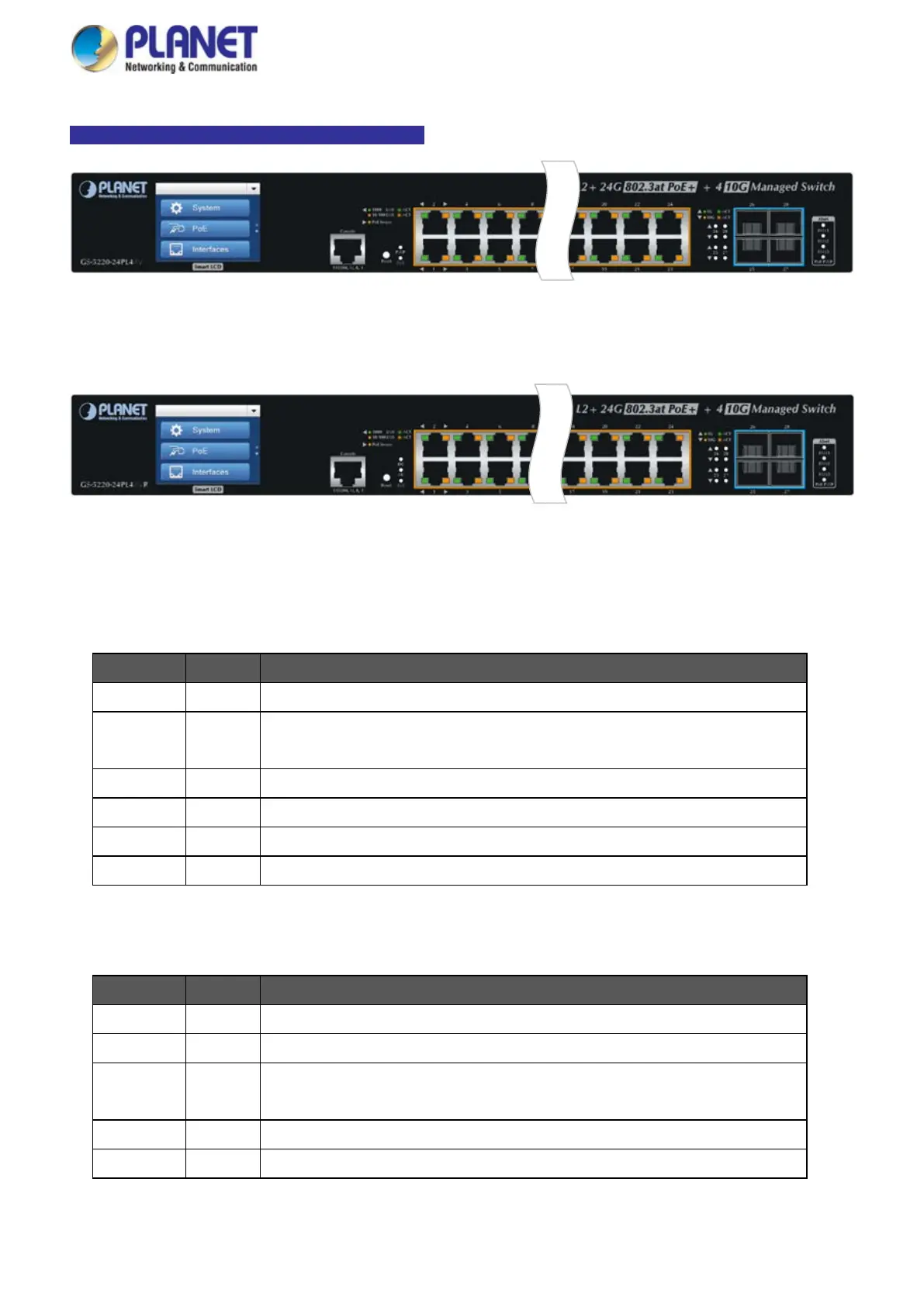

GS-5220-24PL4XV / GS-5220-24PL4XVR LED Indication
Figure 2-1-25: GS-5220-24PL4XV LED on Front Panel
Figure 2-1-26: GS-5220-24PL4XVR LED on Front Panel
 System / Alert (GS-5220-24PL4XV)
LED Color Function
PWR Green Lights to indicate that the Switch has power.
SYS Green
Lights to indicate the system is working.
Off to indicate the system is booting.
FAN 1 Red Lights to indicate that FAN1 is down.
FAN 2 Red Lights to indicate that FAN2 is down.
FAN 3 Red Lights to indicate that FAN3 is down.
PoE PWR Red Lights to indicate that the PoE power is down.
 System / Alert (GS-5220-24PL4XVR)
LED Color Function
AC Green Lights to indicate that the Switch has power from AC
DC Green Lights to indicate that the Switch has power from DC
SYS Green
Lights to indicate the system is working.
Off to indicate the system is booting.
FAN 1 Red Lights to indicate that FAN1 is down.
FAN 2 Red Lights to indicate that FAN2 is down.
