transition of L0 to L2 state or an L2 low power trim request. Value range is 0 ~ the
value of L2 ATPRT (dB).
L2 ATPRT
Type in the total maximum aggregate transmit power reduction (in dB) that is
allowed in the L2 state; the total reduction is the sum of all reductions of L2 Request
(i.e., at transition of L0 to L2 state) and L2 power trims. Value range is 0 ~ 15 (dB).
Direction DS: downstream. US: upstream.
Message
Type in the minimum rate of the message-based overhead that shall be maintained
by the ATU in upstream/downstream direction. Value range is 4 ~ 28k bit/s.
Noise Margin
Type in the Noise Margin values.
Min: Minimum noise margin (0.0~31.0,51.1db, default 0.0)
Tar: Target noise margin (0.0~31.0,51.1db, default 6.0)
Max: Maximum noise margin (0.0~31.0,51.1db, default 51.1)
Modify Click on this button to submit the modification
Delete Click on this button to delete a profile
Query Click on this button to display the profiles.
OP Mode-N
Click on this button to view/modify allowed ADSL modes of operation for the profile.

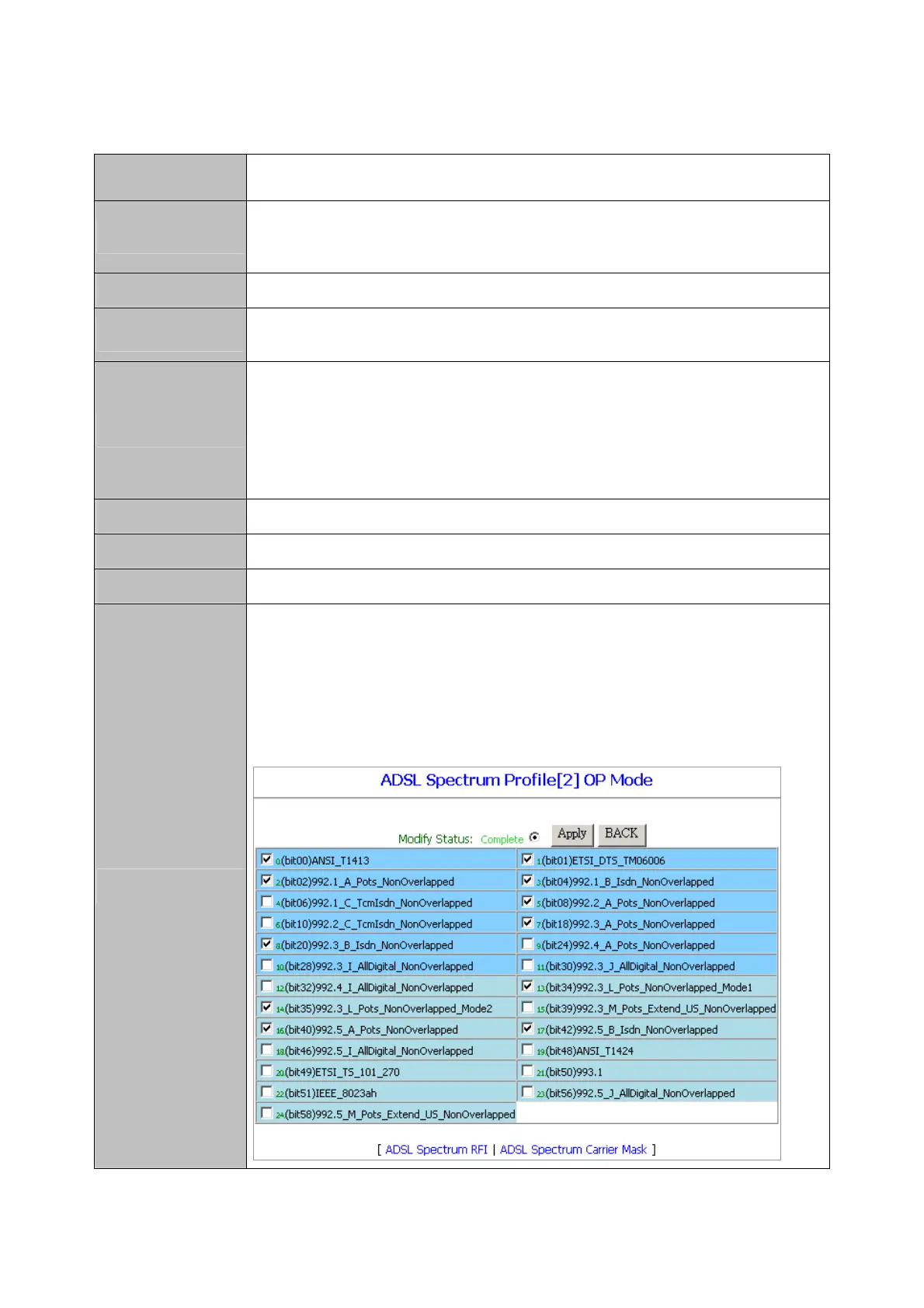

The following page is displayed.
An OP Mode is supported if the check box is selected.
Modify Status:
Complete – modems will re-train after you click on Apply button
(To be continued)
- 146 -
To Next Page
