To connect the host PC to the console port, a RJ45 (male) connector-to-RS232 DB9
(female) connector cable is required. The RJ45 connector of the cable is connected to
the Console port of the DSLAM; the DB9 connector of the cable is connected to the PC

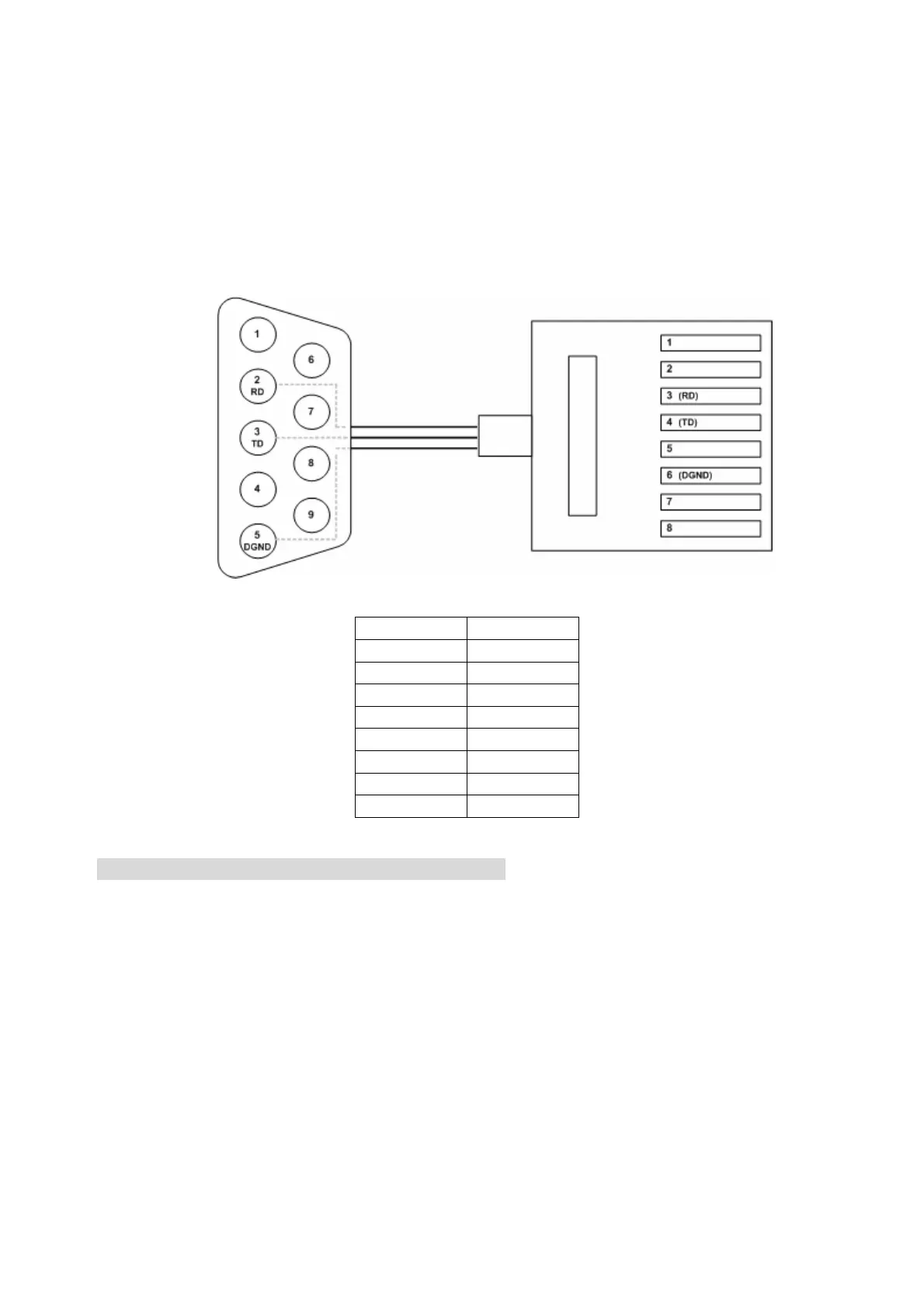

COM port. The pin assignment of the console cable is shown below:
DB-9F RJ-45M Pin
1
2
Pin 2 RD 3
Pin 3 TD 4
5
Pin 5 DGND 6
7
8
Pin Assignment of Console Cable
Step 3: Hook power cord and apply the power.
- 26 -
