REMOTE CONTROL PANEL INSTALLATION
Installation manual

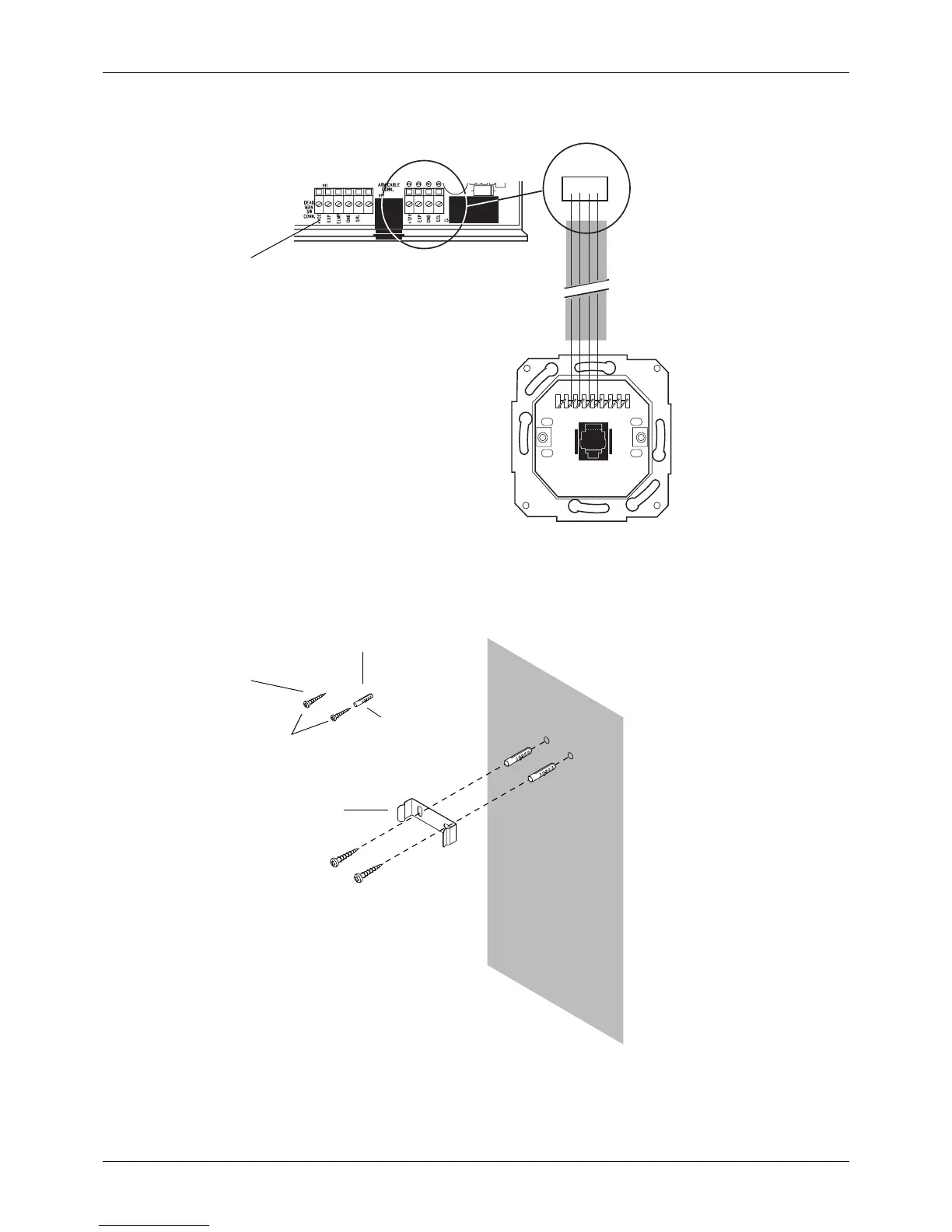

Connect the telephone cable according to the figure below.
Install the holder attachment plate to the wall with two ø4x30 DIN 7981 screws. If the wall is made of
concrete or brick, drill ø6 mm (0.23 in.), 32...35 mm (1.25 in.) in depth, holes and place the expan-
sion anchors into them. If the wall is made of wood, attach the screws to the wall without drilled
holes.
1 2345678
P13
2345
Remconnectors.eps
Generator PCB
Ins12.eps
Holder attachment plate
ø4x30 DIN 7981 screw
Expansion anchor
Wooden wall
Concrete wall

Planmeca intra Specifications

General

Manufacturer	Planmeca
Model	Planmeca Intra
Frequency	50/60 Hz
Tube Voltage	60-70 kV
Tube Current	7 mA
Type	Dental X-ray Unit
Voltage	100-240 V
Weight	Varies depending on configuration; refer to specific model documentation
