REMOTE CONTROL PANEL INSTALLATION
50 Planmeca Intra X-ray unit
Installation manual

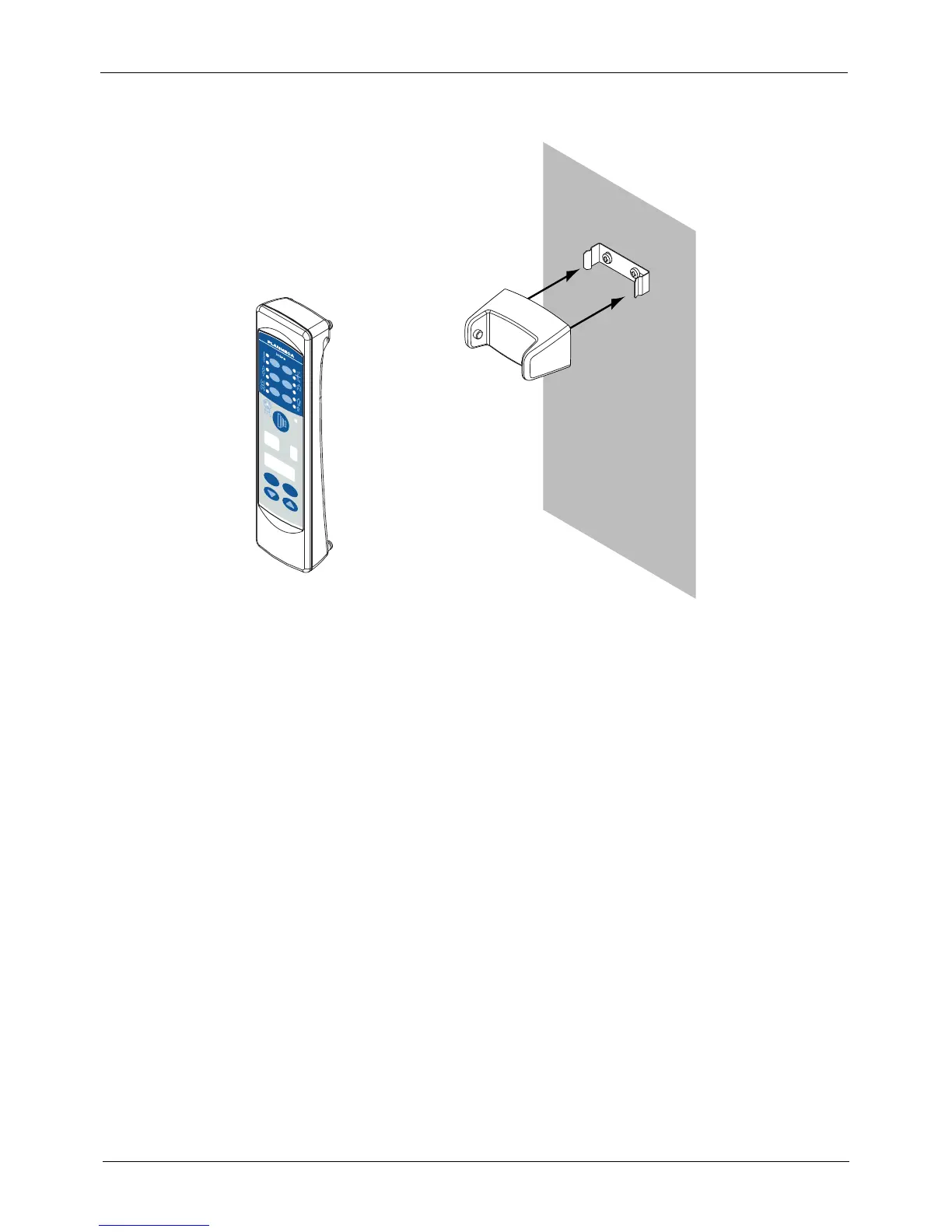

Press the control panel holder to the attachment plate. Attach the control panel to the holder and
connect the control panel cable to the control panel and to the wall socket.
NOTE The control panel holder can be attached with a sticker to a surface which can
not be drilled (e.g. glass).
READY
PRET
mA
kV
s
BW
SELECT
MODE
Ins13.eps
