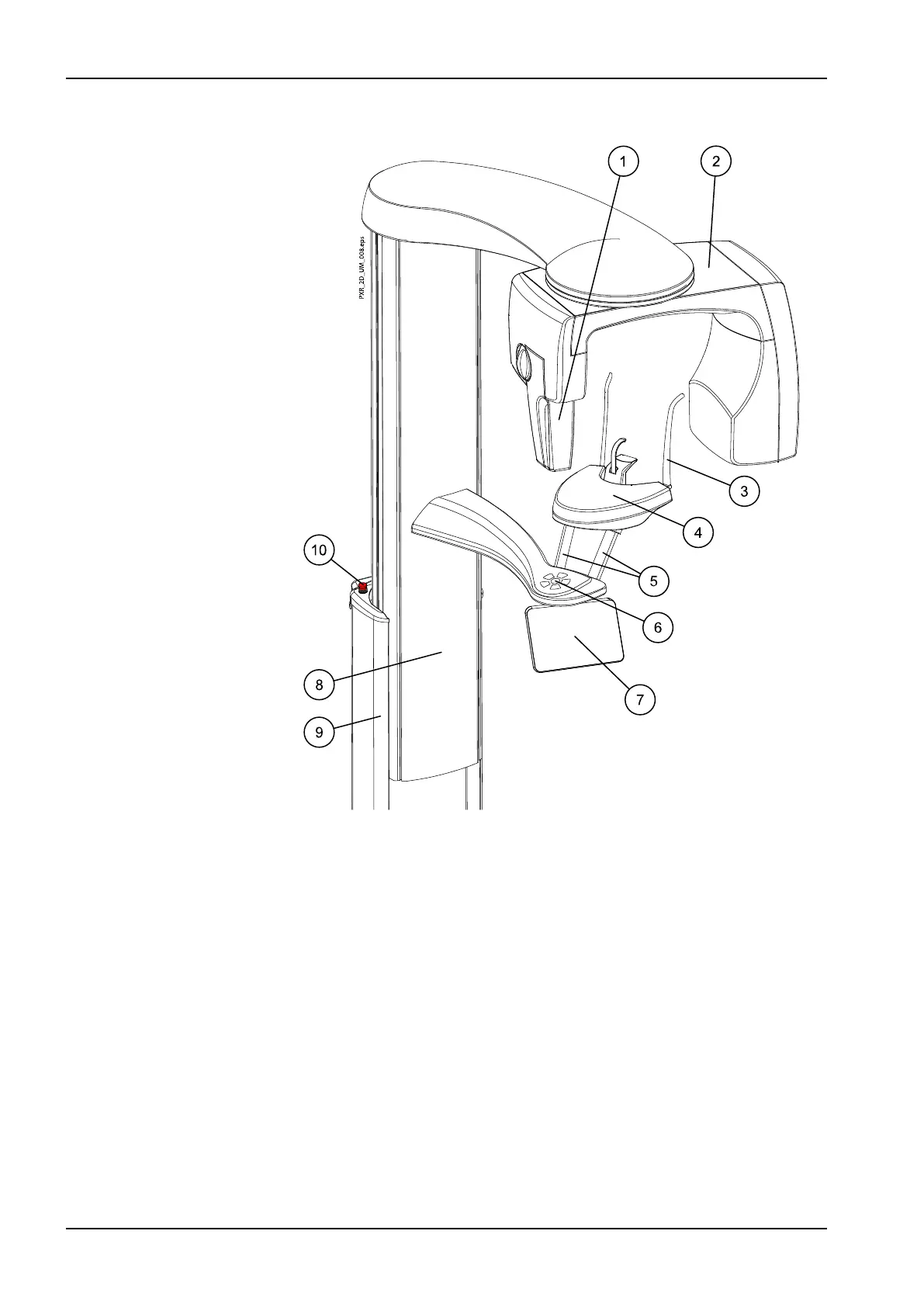

3.3 General view of X-ray unit
1. Sensor (see section "Sensor" on page 11)
2. C-arm
3. Patient supports (see section "Patient supports" on page 12)
4. Patient support table
5. Patient handles
6. Patient positioning controls (see section "Patient positioning controls" on
page 19)
7. Touch screen (see section "Touch screen" on page 14)
8. Telescopic column (see section "Telescopic column" on page 12)
9. Stationary column
10. Emergency stop button (see section "Emergency stop button" on page
13)
