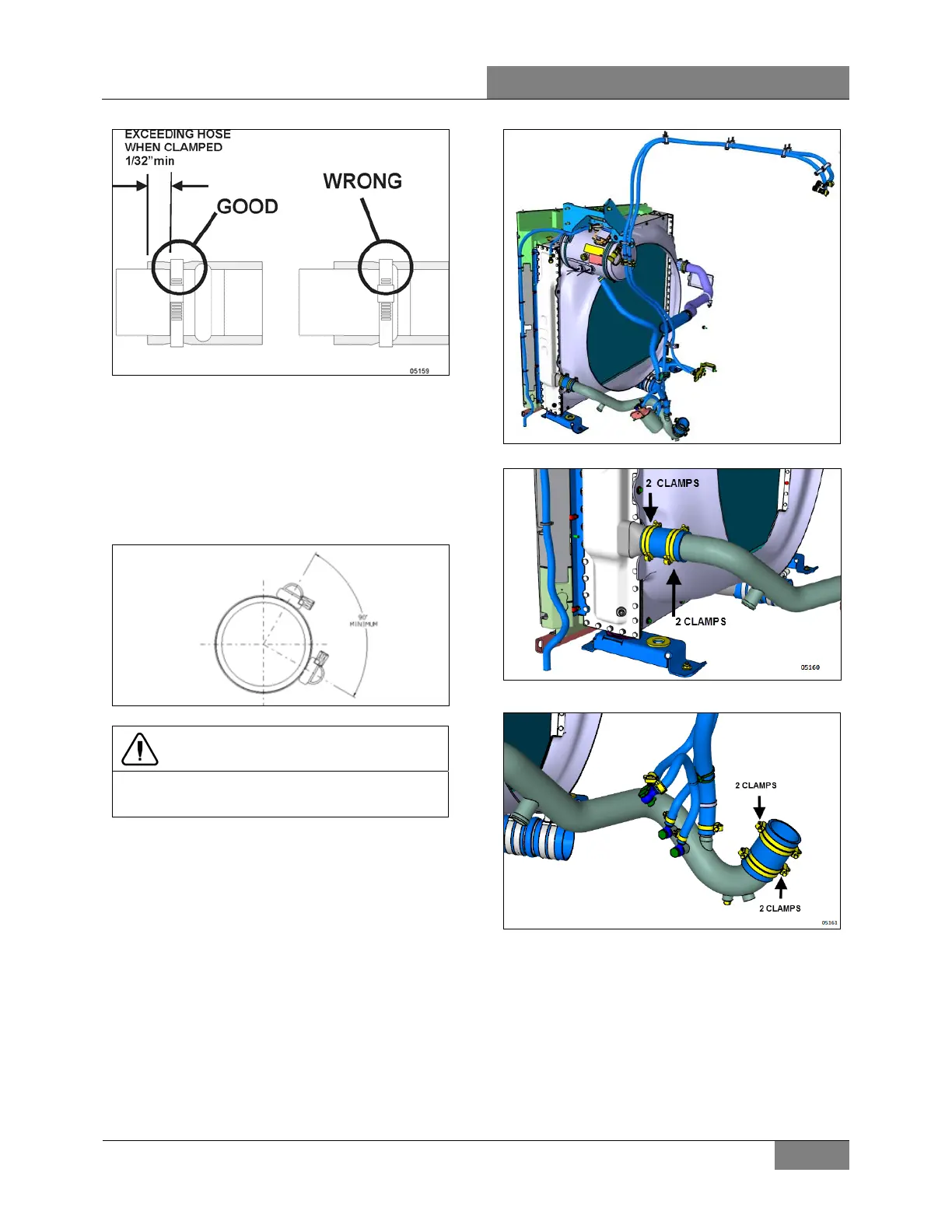

SECTION 05A: H3 SERIES COOLING SYSTEM
PA1621 Maintenance Manual All Series | January 2017
11
FIGURE 3: PROPER HOSE CLAMP INSTALLATION
All connections equal or greater than of 2-in OD
have doubled clamps (two clamps side by side)
with screw housing separated from at least 90°.
A torque wrench should be used for proper
installation. Clamps should be tightened at
ambient temperature.
TORQUE: 30 lb-in (3.39 Nm)
FIGURE 4: DOUBLED CLAMP POSITIONING
CAUTION
Do not over-tighten, especially during cold
weather when hose has contracted.
FIGURE 5: COOLANT FLOW TO RADIATOR (VOLVO D13)
FIGURE 6: COOLANT LINE TO THE RADIATOR
FIGURE 7: COOLANT LINE CONNECTED TO PUMP
OUTLET
