SECTION 22: HEATING AND AIR CONDITIONING
28
PA1621 Maintenance Manual All Series | Section Revised November 2017

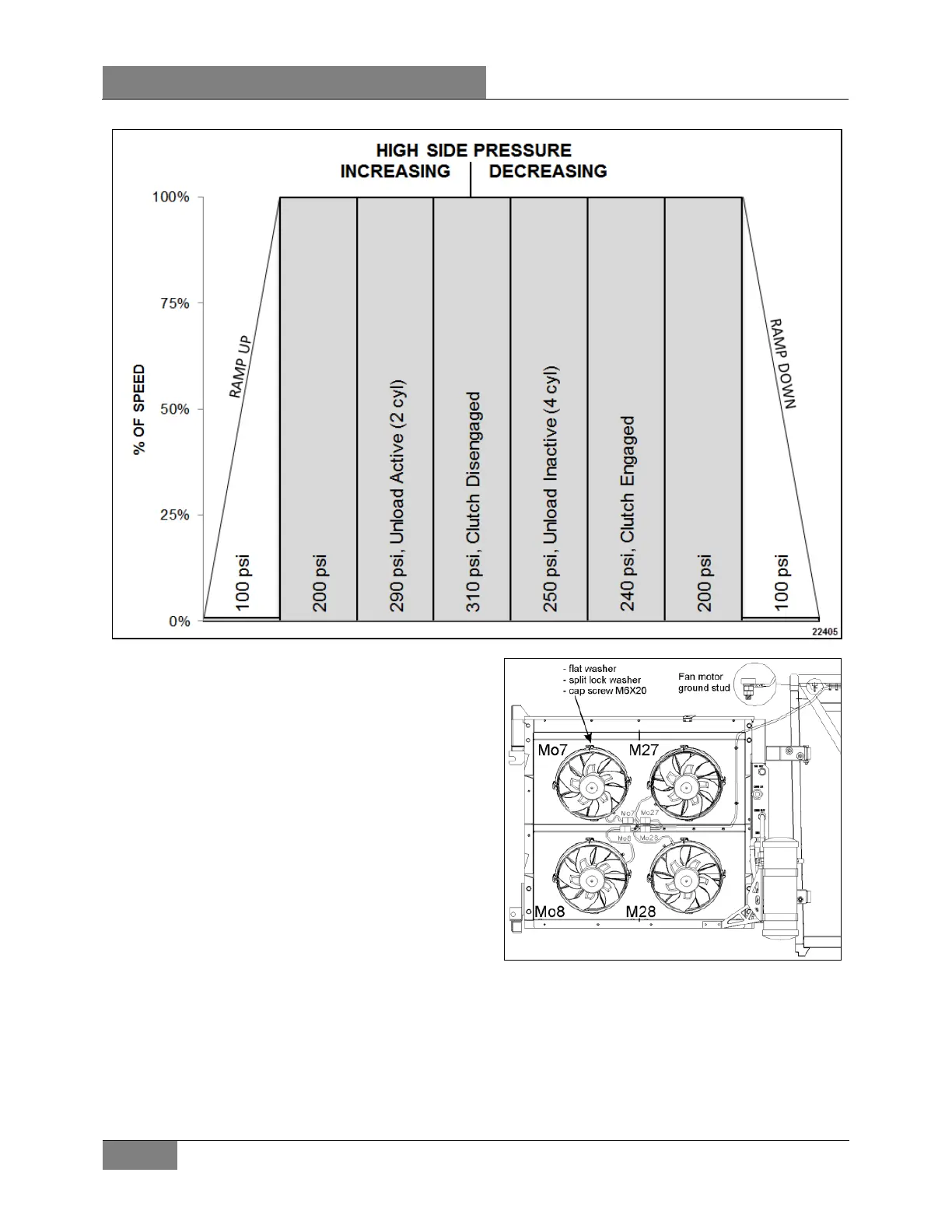

FIGURE 39: CONDENSER FAN SPEED AND COMPRESSOR EVENTS IN RELATION WITH HIGH SIDE PRESSURE
4.4.2 Condenser Fan Removal
1. Set the battery master switch to the OFF
position.
2. Unplug the fan harness connector (Figure
40).
3. Remove the four hexagonal head cap
screws retaining the fan assembly to the
shroud.
4. Remove the motor.
FIGURE 40: CONDENSER FANS 22363
4.5 CONDENSER (SMALL A/C)
On H3-series vehicles, the condenser is
installed over the radiator and benefits from the
existing airflow in this location.
On X3-series vehicles the condenser is installed
in the 4th baggage compartment and has its
own MUX controlled electrical fan.
