SECTION 18a: H3 SERIES BODY
PA1621 Maintenance Manual All Series | January 2017 11

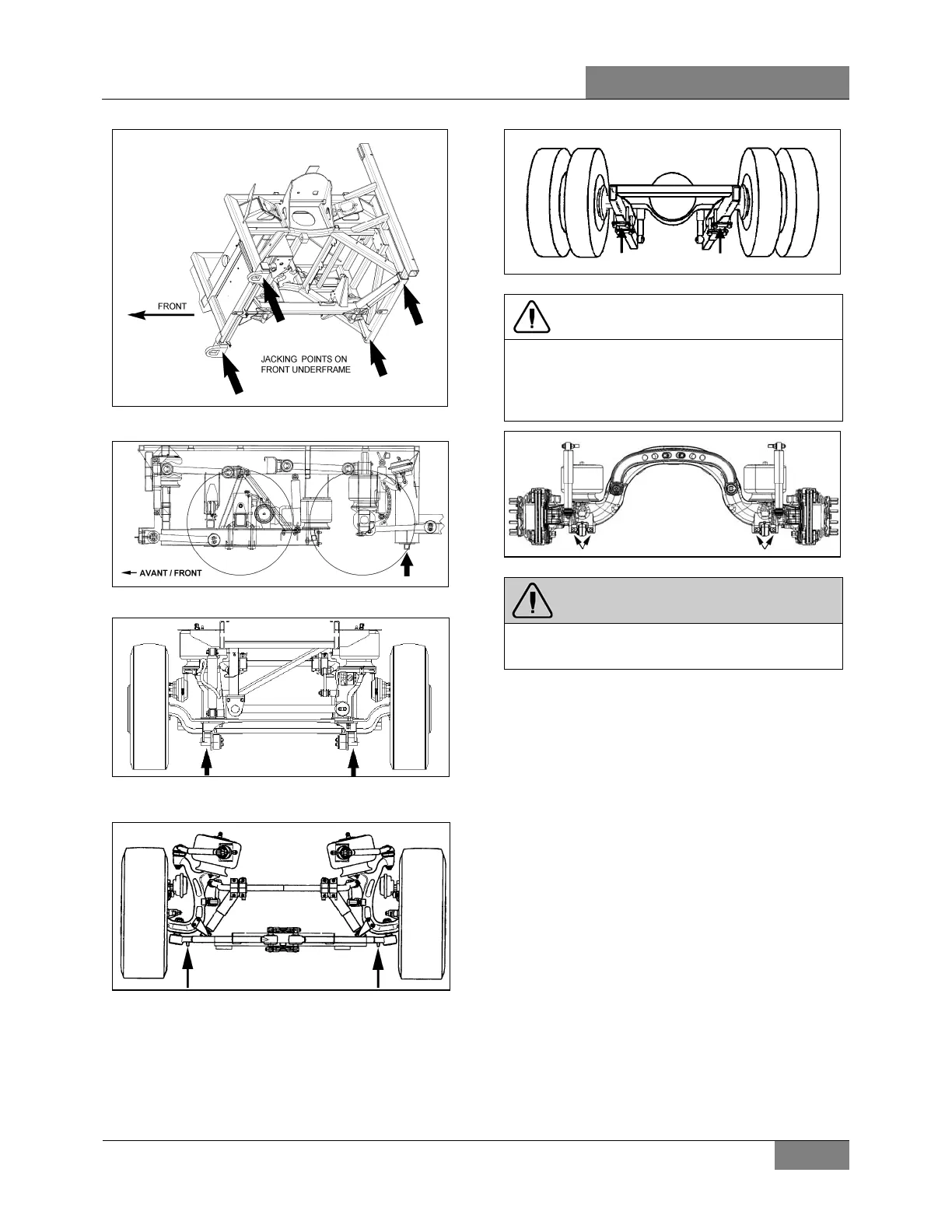

FIGURE 5: JACKING POINTS ON FRONT UNDERFRAME
– IFS
18530
FIGURE 6: JACKING POINTS ON REAR FRAME
FIGURE 7: JACKING POINTS ON FRONT AXLE – I BEAM
AXLE
10000
FIGURE 8: JACKING POINTS ON IND. SUSPENSION
FIGURE 9: JACKING POINTS ON DRIVE AXLE 18085
CAUTION
Always unload or retract the tag axle before
jacking the vehicle from the front and drive
axle jacking points to prevent damage to
suspension components.
FIGURE 10: JACKING POINTS ON TAG AXLE
WARNING
The jacking points on the tag axle must be
used for raising the tag axle only.
4. TOWING THE VEHICLE
The vehicle can be transported on a low bed
semi-trailer of adequate gross axle weight
capacity. When transporting a vehicle, apply
parking brake and shut down the engine. Block
all wheels and secure vehicle with tie-downs.
Check that overall height will clear obstacles on
the route to follow, and obtain required permits.
The vehicle can also be towed by lifting the front
axle or by towing from the front with all wheels
on the ground. These two methods are
described below under their respective
headings. Whatever the method used, the
vehicle should be towed by truck operators
authorized and experienced in towing highway
coaches.
