SECTION 12: BRAKE AND AIR SYSTEM
PA1621 Maintenance Manual All Series | January 2017
5

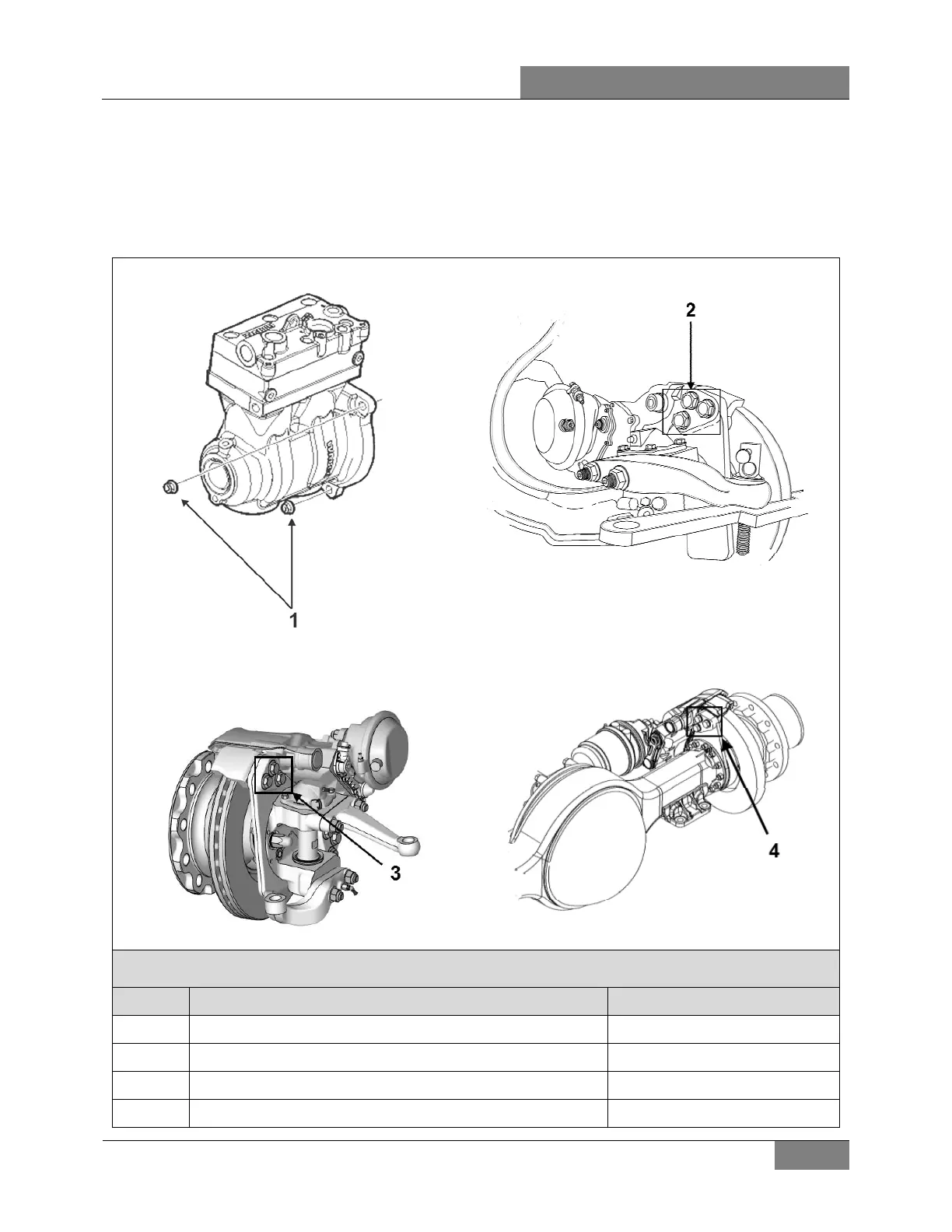

1. TORQUE
TABLES
1.1
BRAKE AND AIR SYSTEM
BRAKE AND AIR SYSTEM
No
DESCRIPTION
TORQUE
1
Compressor flange mounting nuts
63 lb-ft (85 Nm)
2
Front IFS suspension caliper mount
ing bolts
405-495 lb-ft (549-671 Nm)
3
Front I-beam caliper mounting bolts
350-393 lb-ft (475-533 Nm)
4
Meritor drive axle & Tag axle caliper mounting bolts
405-495 lb-ft (549-671 Nm)
450
452
