SECTION 05B: X3 SERIES COOLING SYSTEM
PA1621 Maintenance Manual All Series | January 2017 5
1.3 COOLING ASSEMBLY

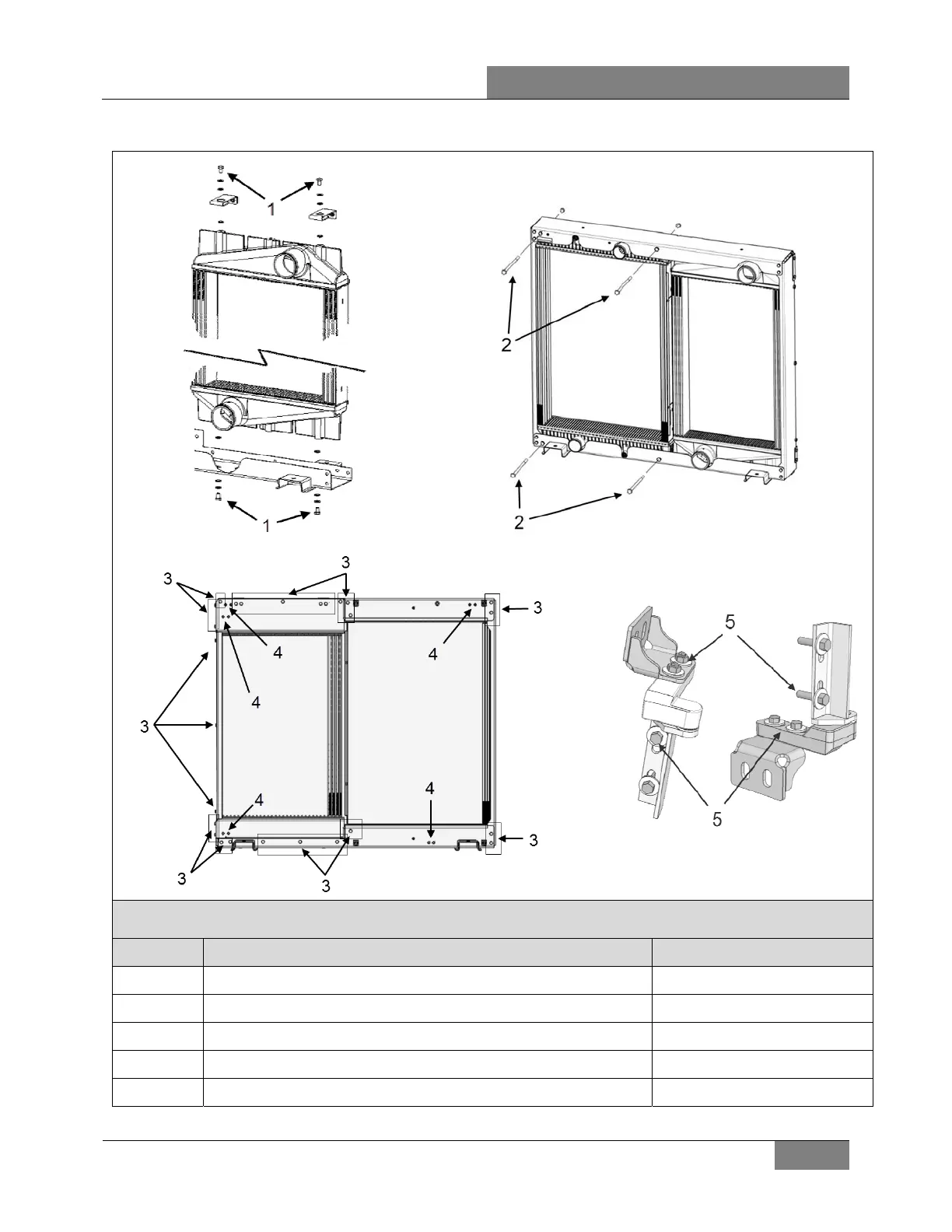

COOLING ASSEMBLY
No DESCRIPTION TORQUE
1 CAC upper & lower mounting bolts (with plastic bushings) 9 lb-ft (12 Nm)
2 Radiator to cooling pack frame mounting bolts (pass through) 9 lb-ft (12 Nm)
3 Cooling pack frame bolts (all 8mm bolts – both sides) 9 lb-ft (12 Nm)
4 Brackets, fan shroud hinge, shroud support & upper support 9 lb-ft (12 Nm)
5 Fan shroud hinge bolts (upper & lower) 68 lb-in (8 Nm)
