SECTION 14: STEERING
12
PA1621 Maintenance Manual All Series | January 2017
NOTE
Use a new sealing ring. Check that the fuel
pump drive axle sits correctly in the power
steering pump.
11. Start the engine and let run for 5 minutes.
Make sure that there are no leaks.
7. STEERING COLUMN
7.1 REMOVAL
To disassemble the steering column from system,
refer to Figure 9 & Figure 10. The steering
column has no lubrication points. The lower
steering column U-joint is easily accessible
through the front service compartment. The upper
steering column U-joint and the steering slip joint
are accessible from the front driver's area. To
access these joints, proceed as follows:

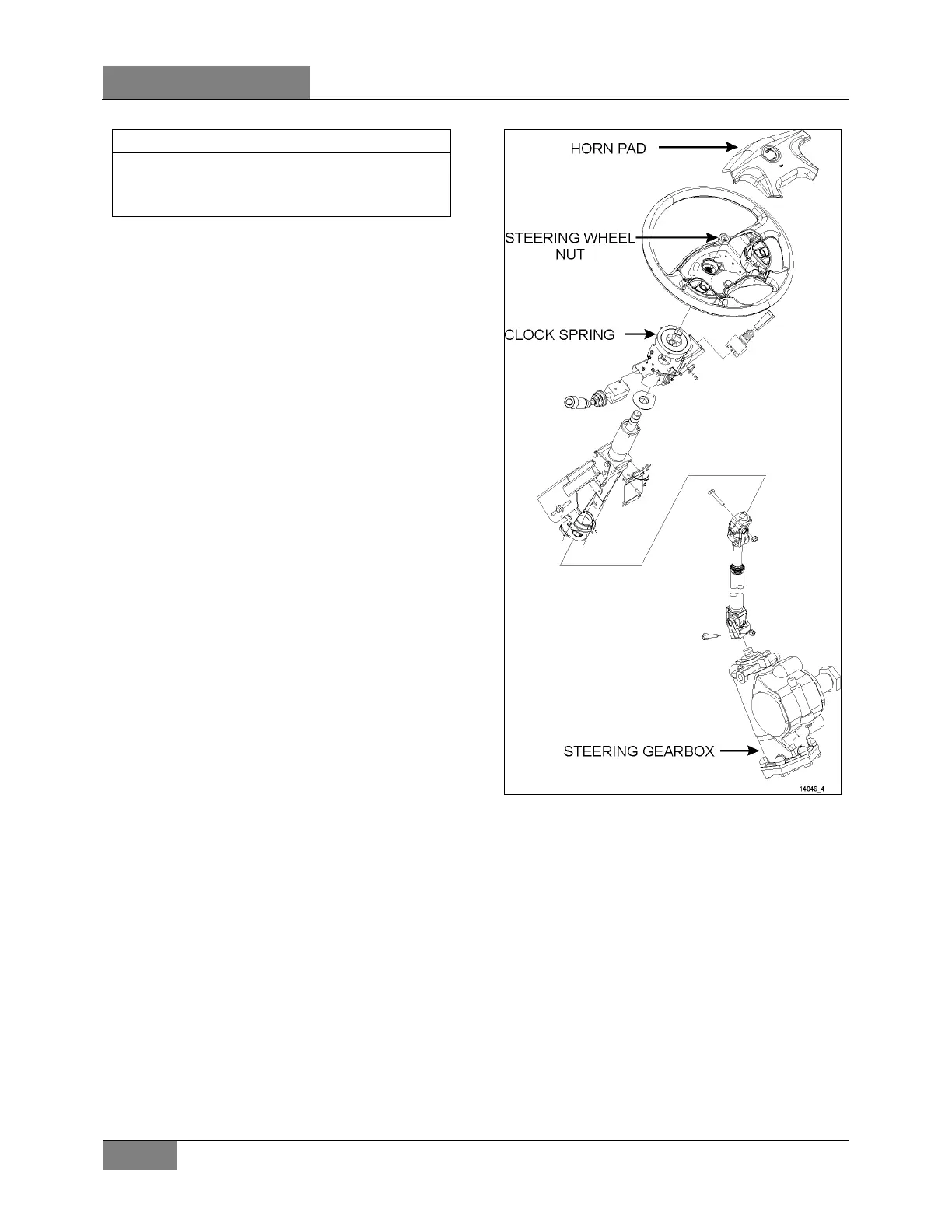

FIGURE 9: STEERING COLUMN
1. From the front driver's compartment area,
remove the three plastic fasteners on steering
column lower cover. Remove the lower cover
(Figure 10).
2. Unscrew the four retaining screws on steering
column middle cover.
3. Unscrew the four retaining screws fixing
steering column upper cover to middle cover.
Remove the steering column middle and
upper covers.
4. Position the steering wheel in order to gain
access to the joints.
