2.2 OVERVIEW

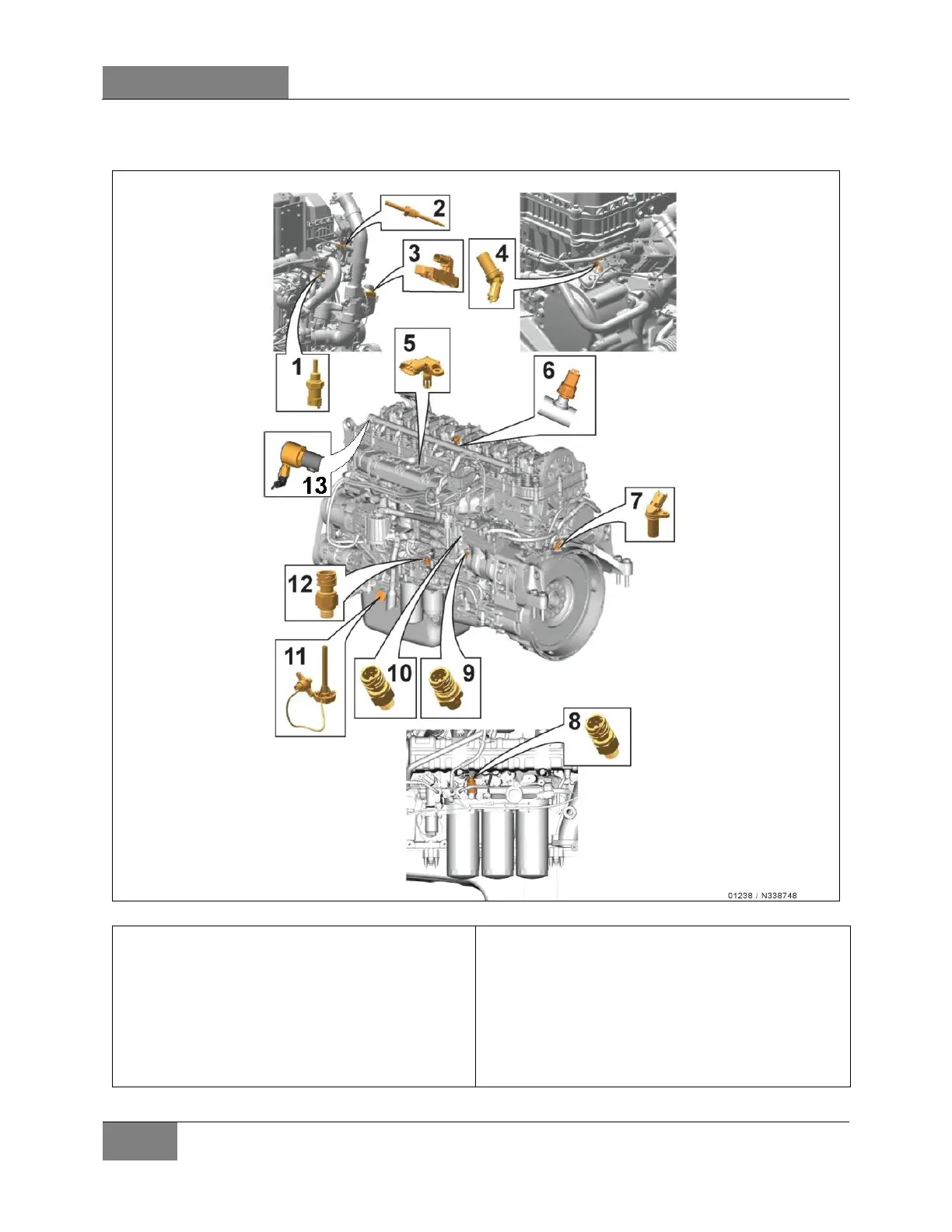

FIGURE 1: ENGINE SENSORS
1. Engine coolant temperature sensor
2. EGR temperature sensor
3. EGR differential pressure sensor
4. Camshaft position sensor
5. Intake air temperature and pressure sensor
6. Rail pressure sensor (high pressure fuel syst.)
7. Crankshaft position sensor
8. OBD Oil pressure sensor
9. Crankcase pressure sensor
10. Engine oil pressure sensor
11. Engine oil level and temperature sensor
12. Fuel pressure sensor (low pressure fuel syst.)
13. Rail pressure relief (ePRV)
