SECTION 06A: H3 SERIES ELECTRICAL
PA1621 Maintenance Manual All Series | January 2017
5
1. TORQUE TABLES

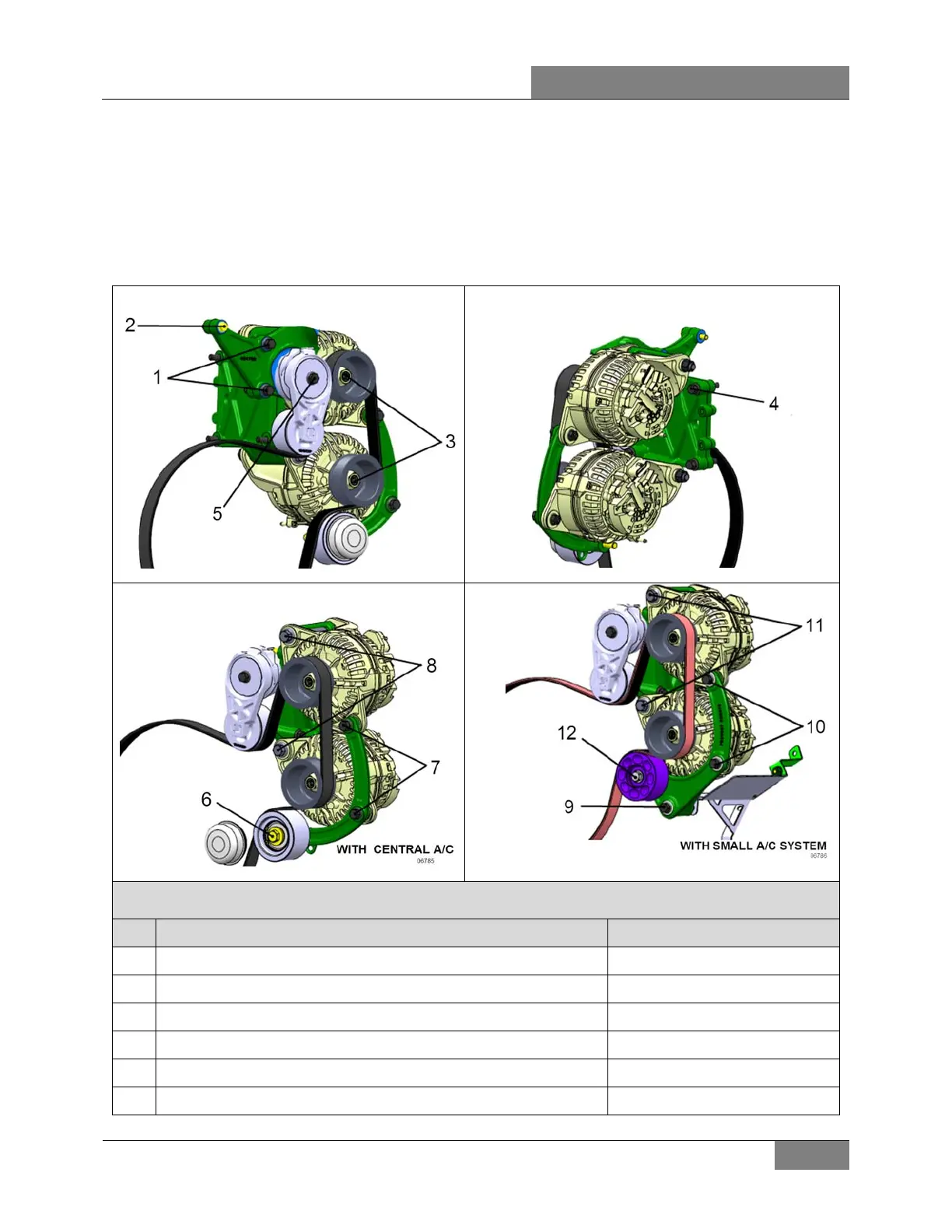

1.1 ALTERNATORS AND SURROUNDING COMPONENTS
06783
06784
BOSCH HD10 ALTERNATORS
No DESCRIPTION TORQUE
1 A/C tensioner / idler bracket mounting bolts (2) 43 lb-ft (58 Nm)
2 A/C tensioner / idler bracket mounting bolt (1) 22 lb-ft (30 Nm)
3 Alternator pulley (2) LH threads 70-80 lb-ft (95-108 Nm)
4 Alternator mounting bracket mounting bolts 48 lb-ft (65 Nm)
5 Alternator belt tensioner mounting bolt 48 lb-ft (65 Nm)
6 Alternator belt idler mounting bolt (central A/C config.) 82 lb-ft (111 Nm)
