SECTION 18a: H3 SERIES BODY
44 PA1621 Maintenance Manual All Series | January 2017
WARNING
Nozzle is hot.
4. Always add an extra inch of filler bead at the
beginning and at the end of repair.
5. Perform steps indicated in paragraphs 9, 10
and 11.
15. PASSENGER SEATS
H3-41 and H3-45 coaches can be equipped with
any of 2 basic seat models and installed in a
variety of seating arrangements:
1. The "Tourismo 2" seat is the base model
and is available in heights of 40" (102 cm)
and 42" (107 cm). Seating arrangement
includes 2 card tables which can be folded
and removed, and pivoting seats ahead of
each card table. Each pair of seats is built
on a welded steel frame fastened to the side
wall and on a track-mounted pedestal.
Standard seating capacity is 48 in H3-41
and 56 in H3-45.
2. The "V.I.P." seat model is an optional seat.
"V.I.P." seats are mounted on one row of
paired seats built on a common frame on
one side of the vehicle, and a row of single
seats on the other side of the vehicle with an
off-center aisle. Each "V.I.P." seat has its
own set of armrests.
Each seat has a easily removable bottom
cushion. Upholstery is clipped on the cusion
frame for cleaning or replacement. To remove
the fabric, simply unclip from the frame. The
"Tourismo 2" seats have 3 armrests. The aisle
and center armrests can be folded up and down
manually, while the window armrest is fixed.
15.1 ROTATING SEATS
1. Remove 1 wing nut holding each seat
bottom cushion from under the seat frame.
2. Lift front part of cushions and remove
cushions.
3. Remove 4 wing screws fastening seat
assembly to seat frame.
4. Pull seat toward aisle and rotate.
5. Align mounting holes and reinstall 4 wing
screws.
6. Reinstall seat bottom cushions with wing
nuts.
15.2 REMOVING FIXED SEATS
NOTE
Seats on one row are not interchangeable with
seats of the other row.
To remove fixed seats, proceed as follows:
1. Remove 1 nut holding each seat bottom
cushion from under the front part of the seat
frame.
2. Lift front part of cushions and remove
cushions.
3. Remove 4 finishing screws holding plastic
cover between side wall and seat frame.
4. Remove 2 cap screws, nuts, and washers
holding seat frame to side wall and retain
the 2 holding brackets. See Figure 36 and
Figure 37.

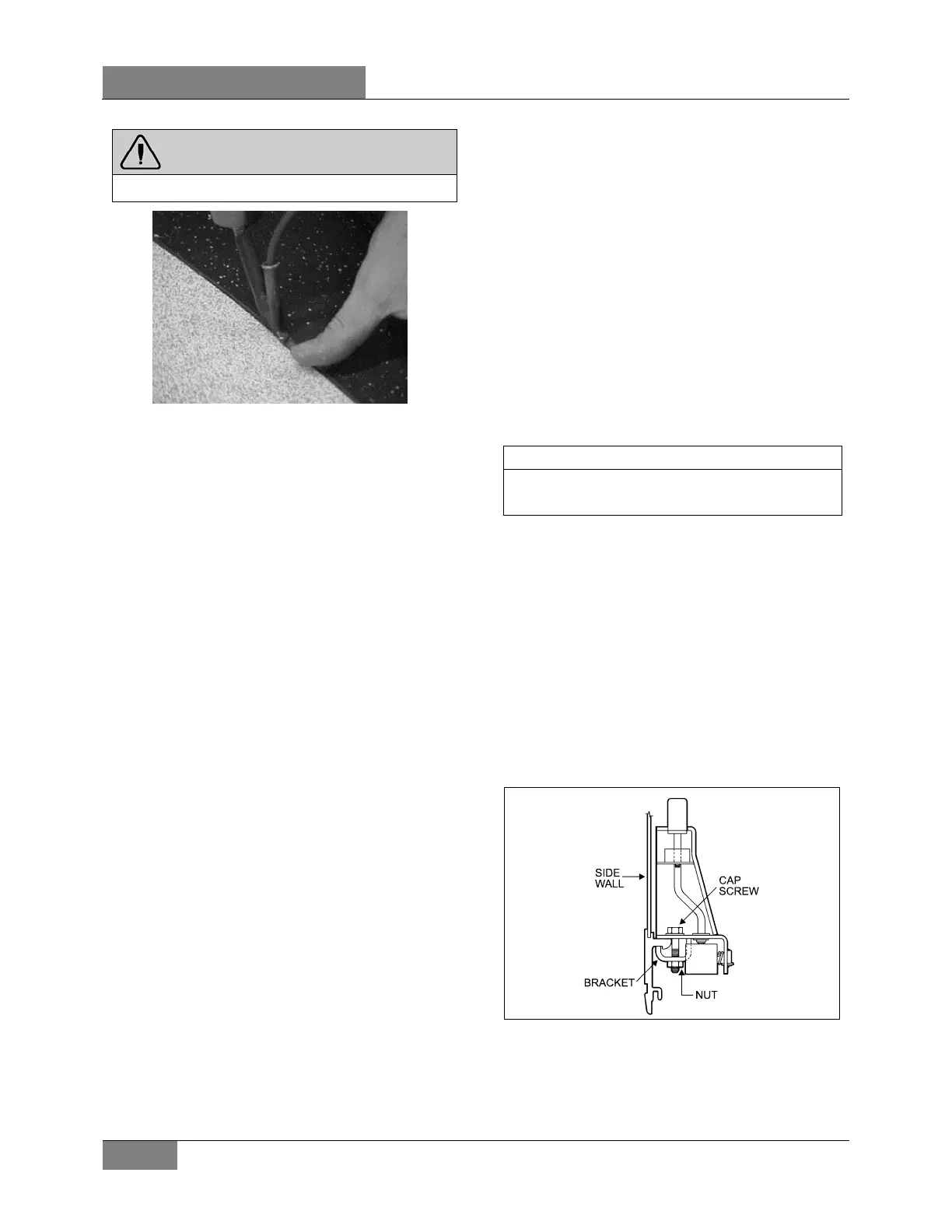

FIGURE 36: SIDE WALL MOUNTING 18106
5. Remove 2 nuts and washers holding seat
frame to pedestal rods.
