PA1621 Maintenance Manual All Series | January 2017
16191
16193

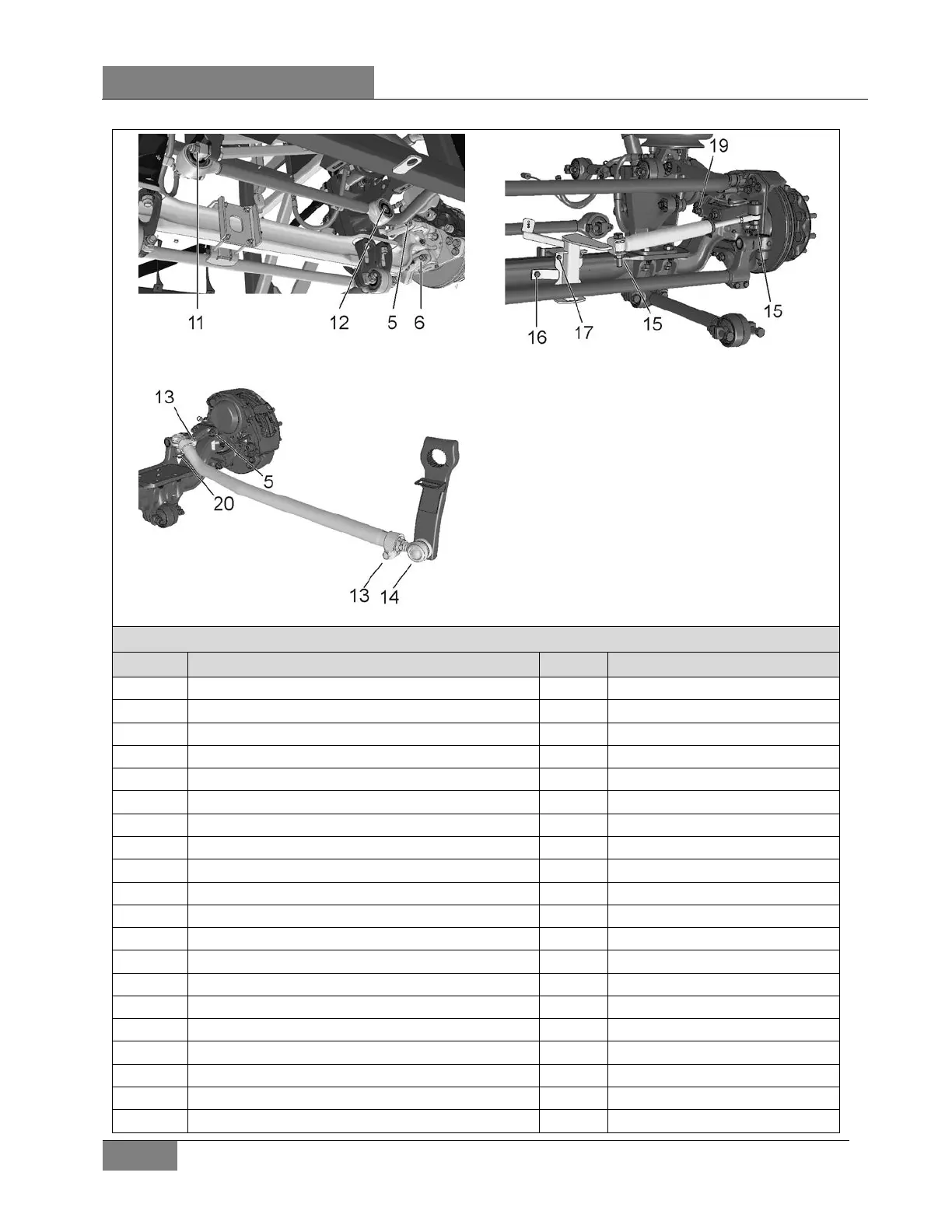

FRONT I-BEAM AXLE
1 Sway bar link, upper and lower nuts 4 165-200 lb-ft (224-271 Nm)
2 Sway bar bushing collars (front suspension) 8 80-100 lb-ft (108-136 Nm)
3 Tie rod end clamp bolts 4 65-75 lb-ft (88-102 Nm)
4 Tie rod end ball pin nuts 2 150-200 lb-ft (203-271 Nm)
5 Steering arm stud nuts 2
285-315 lb-ft (386-427 Nm)
6 Tie rod arm stud nuts 4 285-315 lb-ft (386-427 Nm)
7 I-beam axle mount nuts 8 230-280 lb-ft (312-380 Nm)
8 Shock absorber upper & lower mounting nuts 2 99-121 lb-ft (134-164 Nm)
9 Shock absorber pins, upper & lower 2 350-400 lb-ft (475-542 Nm)
10 Radius rod retaining studs 4 90-110 lb-ft (122-149 Nm)
11 Radius rod retaining nuts 18 225-255 lb-ft (305-346 Nm)
12 Transverse radius rod taper pin screw 1 206 lb-ft (279 Nm)
13 Drag link clamp bolts 2 118-133 lb-ft (160-180 Nm)
14 Drag link ball joint stud nut, fore 1 165-236 lb-ft (224-320 Nm)
15 Steering damper nuts 2 100-120 lb-ft (136-163 Nm)
16 Steering damper bracket bolt 1 39-45 lb-ft (53-61 Nm)
17 Steering damper bracket nuts 4 30-36 lb-ft (41-49 Nm)
18 Air spring nut 4
19 Steering damper arm nuts 2 285-315 lb-ft (386-427 Nm)
20 Drag link ball joint stud nut, aft 1 140-200 lb-ft (190-271 Nm)
