PA1621 Maintenance Manual All Series | January 2017
158-193 lb-ft (214-262 Nm)
26 Torque rod, stud 2 90-110 lb-ft (122-149 Nm)
27 Sway bar bushing collar (front suspension) 8 80-100 lb-ft (108-136 Nm)
28 Shock absorber mounting stud nut 1 99-121 lb-ft (134-164 Nm)
29 Shock absorber mounting stud 1 350-400 lb-ft (475-542 Nm)
Shock absorber lower mounting pin nut
31 Torque rod lever bolt (M20-2.5) 2 520-575 lb-ft (705-780 Nm)
32 Steering arm bolt (M22-2.5) 2 642-708 lb-ft (870-960 Nm)
* Tighten nut to specified torque, then advance to next aligning cotter pin slot and install a new cotter pin.
Apply corrosion-protective compound on exposed threads.

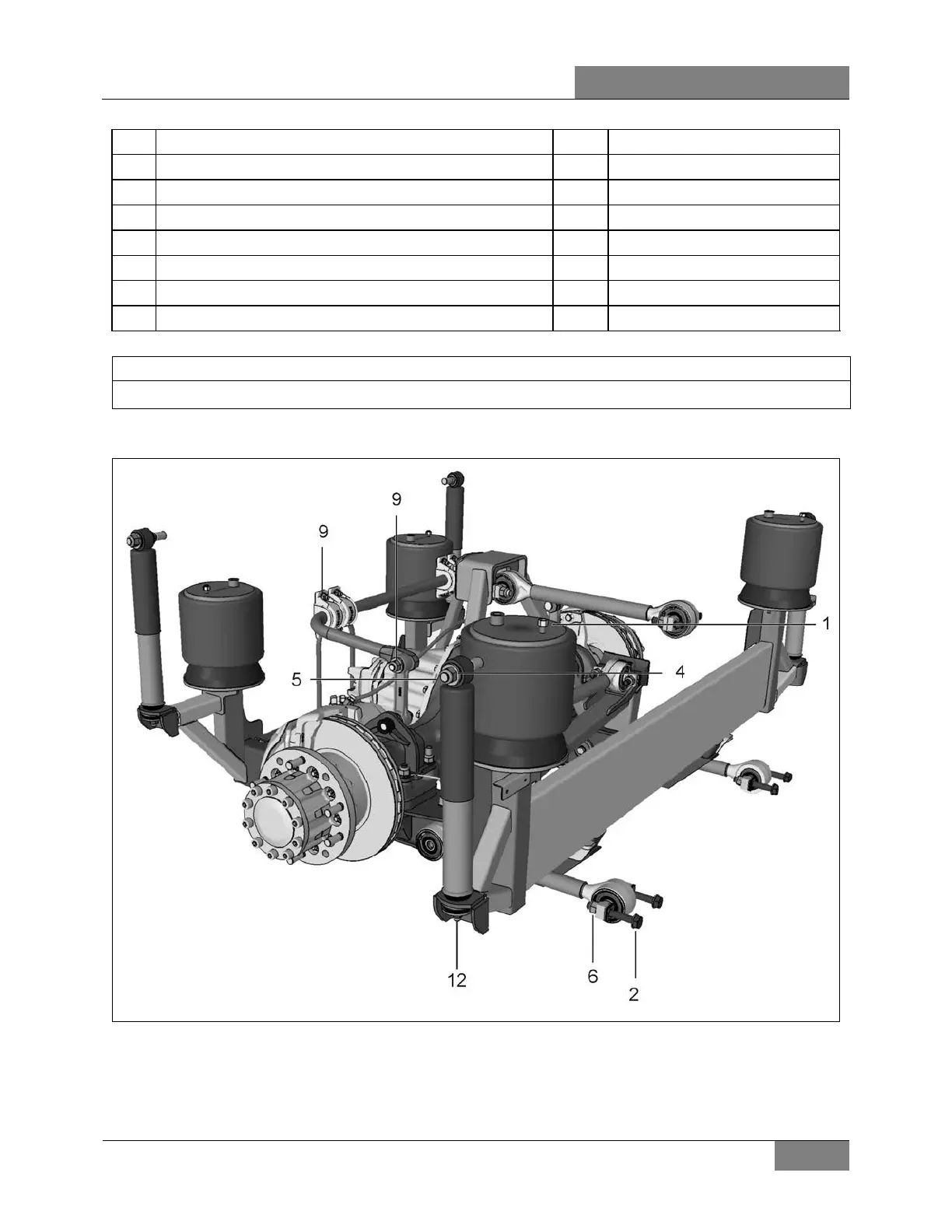

1.3 REAR SUSPENSION
