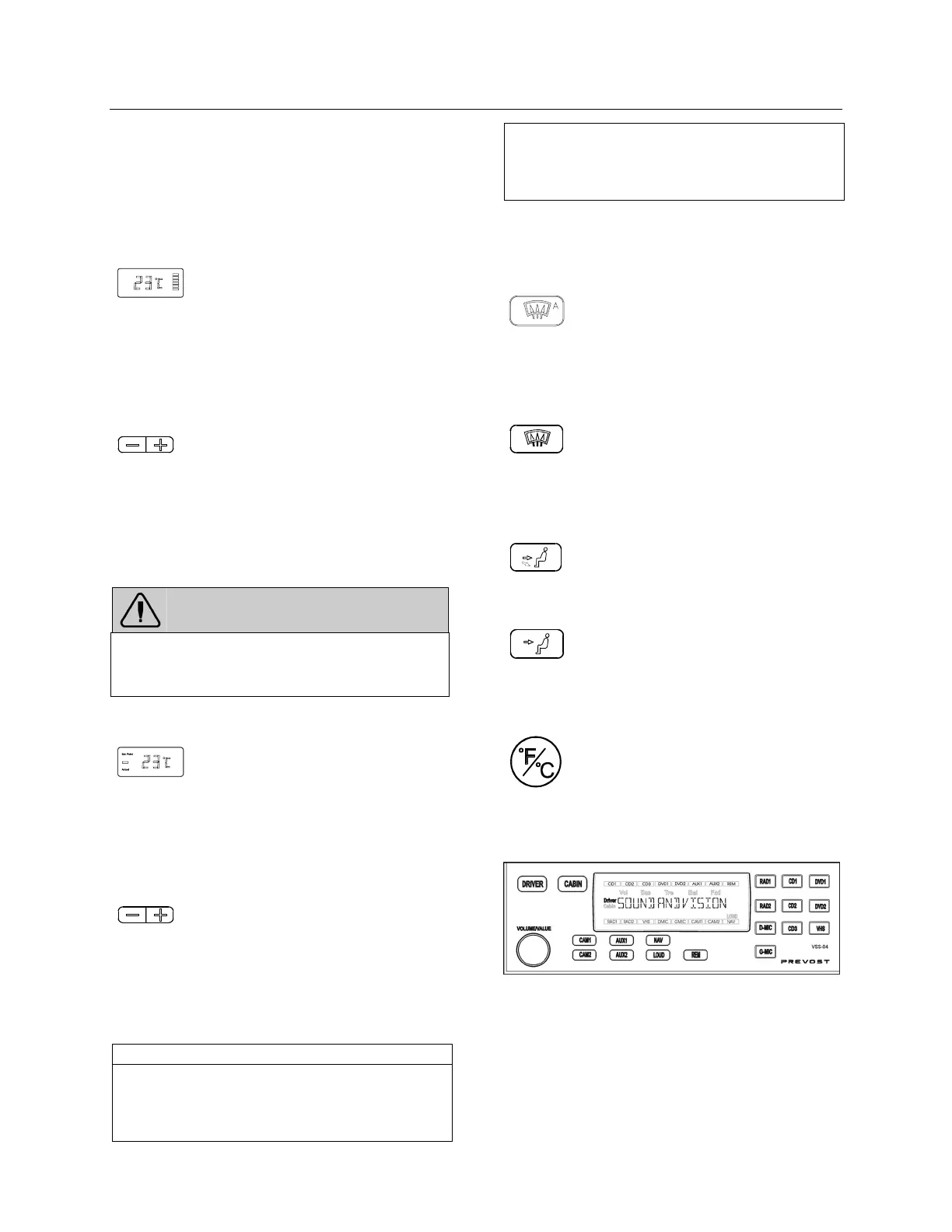

Controls and Instruments
36
A red LED in the top right corner of the button
illuminates when air is recirculated. Use for
faster driver’s section heating.
This feature is automatically cancelled when
defogging is activated.
Driver's section temperature setting
22303
The temperature displayed on the
driver's side HVAC control unit is the
temperature set point.
22132
To increase the temperature set
point, press on the "+" sign, to
decrease the temperature set point,
press on the "-" sign. Temperature
range is between 60°F and 82°F
(16°C to 28°C). On the driver’s side
only, asking for a temperature set
point above 82°F (28°C) will keep
the coolant valve open and “FUL”
will be displayed.
In case of interior temperature
sender unit failure, the coolant valve
will remain open and three lines “---“
will be displayed.
WARNING
Warm temperatures may cause drowsiness
and affect alertness while driving. Keep the
temperature comfortable but not too high.
Passenger's section temperature setting
22304
The temperature displayed on the
passenger's side HVAC control unit is
the actual temperature in the
passenger's area.
22132
To increase or decrease the
temperature set point in the
passenger's area, press on the "+" or
the "-" sign. Pressing these buttons
will flash the displayed set point and
the word "SET" will highlight.
Temperature range is between 60°F
and 82°F (16°C to 28°C).
In case of interior temperature
sender unit failure, the coolant valve
will remain open and three lines “---“
will be displayed.
NOTE
Upon starting of the vehicle, when the ambient
temperature is very cold and so is the inside of
the vehicle, the HVAC control unit will permit a
temperature overshoot up to 3° over the
passenger’s area set point to help warming up
of the area because some parts of the vehicle
like the seats and the overhead compartments
accumulate cold.
Windshield Defogger
22305
Upon pressing this button, the
dashboard damper sends air only to
the lower windshield. The fan is
turned on to maximum speed, the
fresh air damper opens completely
(REC off) and the driver set point is
increased to 4°F (2°C) over the
passenger's section set point.
22139
The dashboard damper sends air only
to the lower windshield when
activated. The footwell damper is
closed also but the fan speed can be
reduced or increased.
Panel and Footwell
22137
The dashboard damper sends air to
the panel vents and footwell.
Panel
22136
Air is sent to panel registers. The
footwell damper is closed.
Temperature Degree Selector
22133
Toggles the HVAV control unit
temperature units between Fahrenheit
and Celsius. The driver’s section must
be on. Also toggles the outside
temperature units displayed on the
telltale panel.
VSS-04 Sound Selector
23350
The VSS-04 Sound Selector enables the driver
to independently select audio and video
entertainment, control volume level and sound
settings in the passenger and driver’s areas.
The dashboard radio, DVD player, video
cassette player, the P.A. system, auxiliary
systems and other components are controlled
by this unit.
