6 Mounting
6.1 Conditions at the installation site
• The device must not be operated in a condensing atmosphere.
• The ambient air must be free of gases and aerosols that interfere with the laser radiation (e.g. organic
solvents, cigarette smoke, sulfurhexafluoride).
• Protect the device from splashes of water and dust.
• Operate the device in closed rooms only.
6.2 Installation in the laser system
6.2.1 Prepare mounting
1. Switch off the laser beam.
2. Ensure that moving parts, e.g. robot arms, etc. are at a standstill and that they cannot be set in motion
unintentionally.
NOTICE
Damage/Destruction of the device
During operation, the shutter of the device is fully opened. Obstacles in the traveling path of the
shutter can damage the device.

Before installing the device, check that a collision of the shutter with the laser system is not pos-
sible. A dimensioned view of the swivel range can be found in chapter18 „Dimensions“ on
page91.
3. Check the space available before installing the device, especially the required space for the connection
cables and shutter.
6.2.2 Possible mounting positions
The PMM can be mounted either horizontally or vertically. Due to the risk of contamination, vertical mounting
as shown in Fig. 6.1 on page17 is recommended. Close unused ports with the cover caps.
An “upside down” installation position should be avoided as the general risk of contamination is higher.
Mounting surface
Beam incidence
Mounting surface
Beam incidence
Horizontal mounting
Vertical mounting

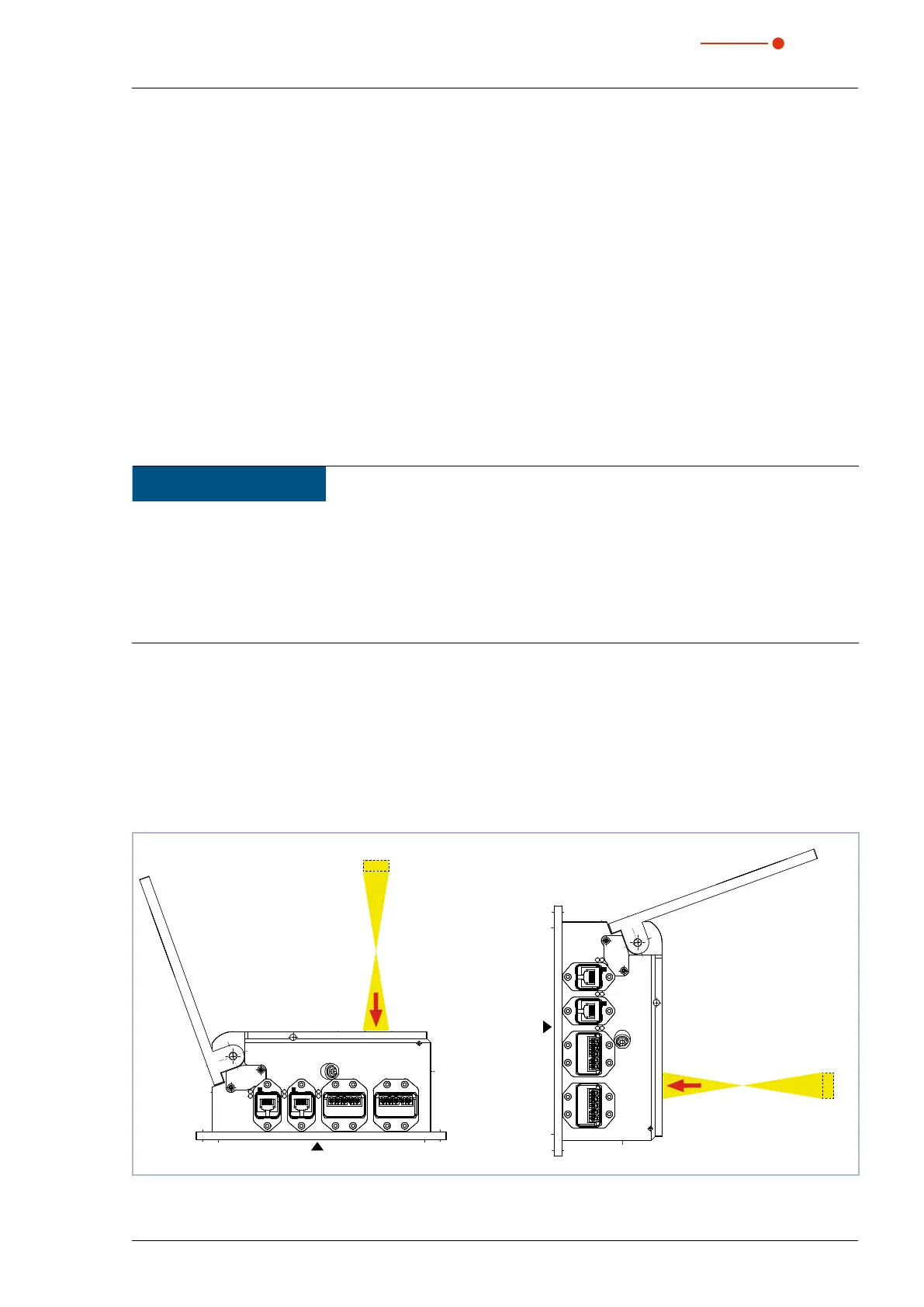

Fig. 6.1: Possible mounting positions of the device
