PowerMeasuringModule PMM
35,0(
60
Revision 13 EN - 02/2023
13 DeviceNet™ or EtherNet/IP™ connection
DeviceNet™ was developed by Rockwell Automation and the user organization ODVATM (OpenDeviceNet™
Vendor Association) as an open field bus standard, based on the CAN protocol. DeviceNet™ is in accor-
dance with the European standard EN 50325.
Just like ControlNet™ and EtherNet/IP™, DeviceNet™ is part of the family of CIP™-based networks.
CIP™ (Common Industrial Protocol) forms the common application layer of these three industrial networks.
DeviceNet™ is an object-oriented bus system which works according to the producer/consumer procedure.
DeviceNet™-devices can be client (master) or server (slave) or both. Clients and server can be producer,
consumer or both.
Based on DeviceNet™ the field bus EtherNet/IP™ was developed, which integrates the devices networked
via EtherNet/IP™ seamlessly – automatically via mapping in the I/O tree of the RSLogix programming tools.
As an option, the configuration software tool (RSNetWorx), known from DeviceNet™, can be used for the
integration of further field devices into the network.
13.1 Hardware/Software
The descriptions in this manual refer to the application of the following hardware- and software components:
13.1.1 Hardware
• Allen-Bradley Control, type 1769-L24ER-QB1B CompactLogix
• DeviceNet™ Scanner, type 1769-SDN/B

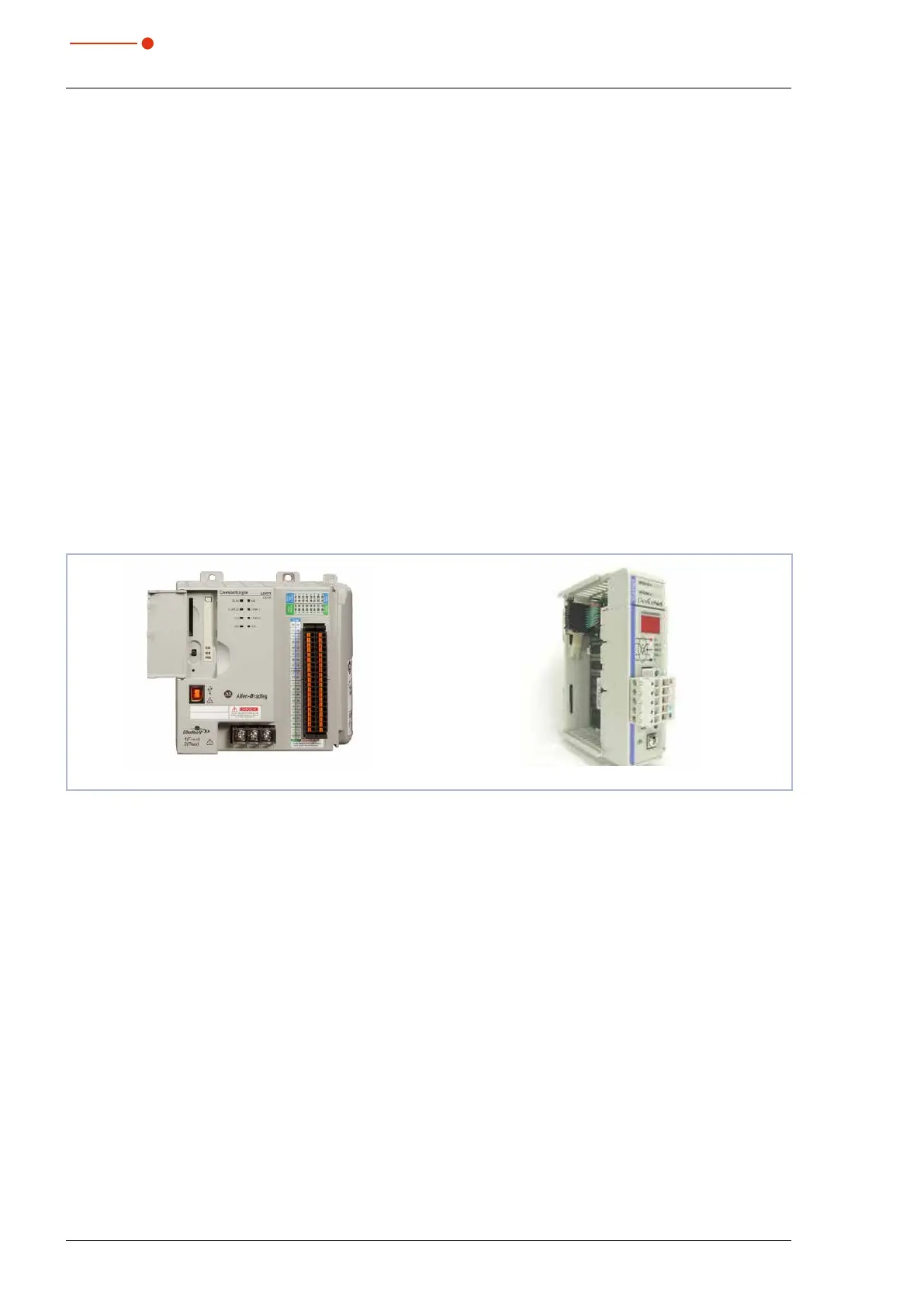

Allen-Bradley Control DeviceNet™ Scanner
Fig. 13.1: Hardware
13.1.2 Software
• Rockwell Software RSLogix 5000 (for the control programming and configuration of EtherNet/IP™)
• Rockwell Software RSNetWorx (for the network configuration)
• Rockwell Software RSLinx
Detailed information regarding the used hardware can be found on the manufacturer’s homepage:
http://www.rockwellautomation.com/literature/
