12 PROFINET
®
or PROFIBUS
®
connection
12.1 GSDML file (PROFINET
®
)
The registration of any PMM with the bus master occurs by means of the GSDML file. Within the GSDML file
all parameters and variables are summarized in blocks (e.g. status, results). The contents of the single blocks
are specified in the Tab. 11.2 on page54.
The GSDML-file for the PMM can be found on the supplied PRIMES data medium or contact PRIMES or
your PRIMES distributor.
The software also includes a PMM image as a bitmap in the format 70x40pixel (PMM icon).

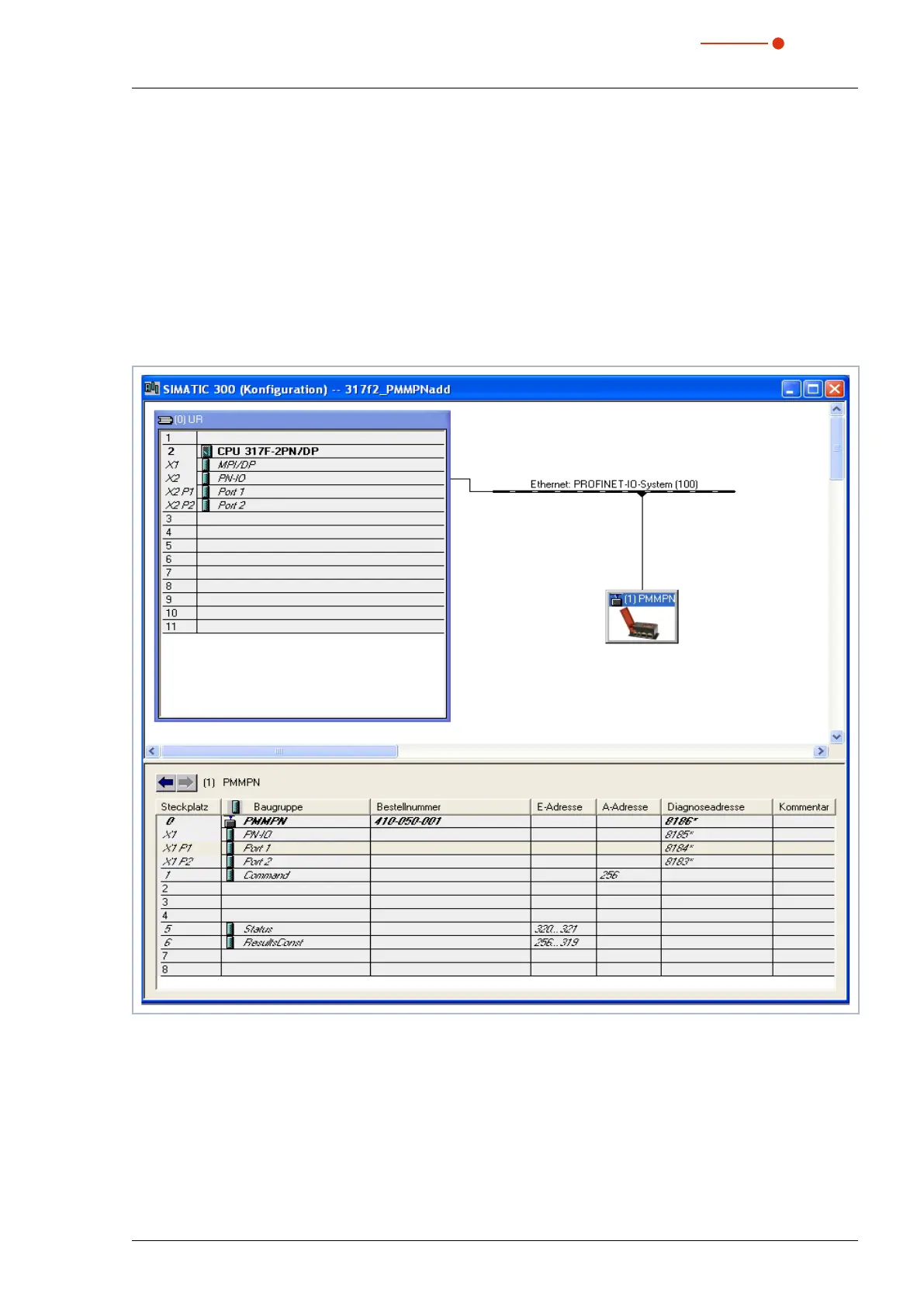

Fig. 12.1: Installed GSDML file
