Primes PROFINET - Pin Assignment Power Supply XD1; Pin Assignment Input, 4-Channel XG1 in

PowerMeasuringModule PMM
35,0(6
27
Revision 13 EN - 02/2023

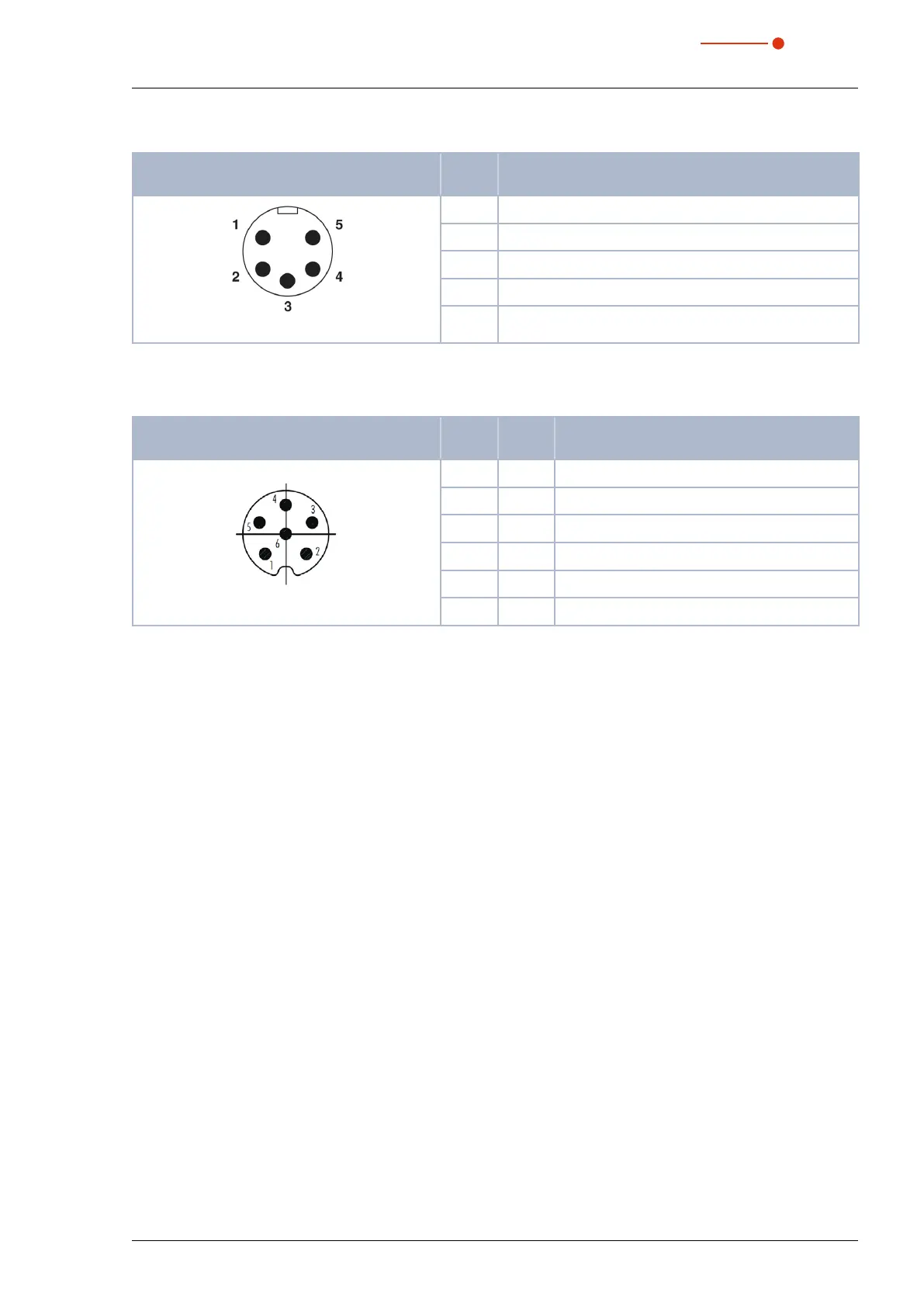

7.4.2 Pin assignment power supply XD1
Pin assignment XD1
(view on connection on the device)
Pin Function
male
1 0 V
2 Not connected
3 Not connected
4 Sensor supply 24V; 0.5A
5 Actor supply, not connected
Tab. 7.12: Pin assignment power supply XD1
7.4.3 Pin assignment input, 4-Channel XG1 In
Pin assignment XG1 In
(view on connection on the device)
Pin Name Function
male
1 Bit 0 Shutter opening
2 Bit 1 Shutter closing
3 Bit 2 Start measurement
4 Bit 3 Reset
5 Not connected
6 Ground
Tab. 7.13: Pin assignment input, 4-channel XG1 In
The inputs are electrically isolated by means of an opto coupler.
