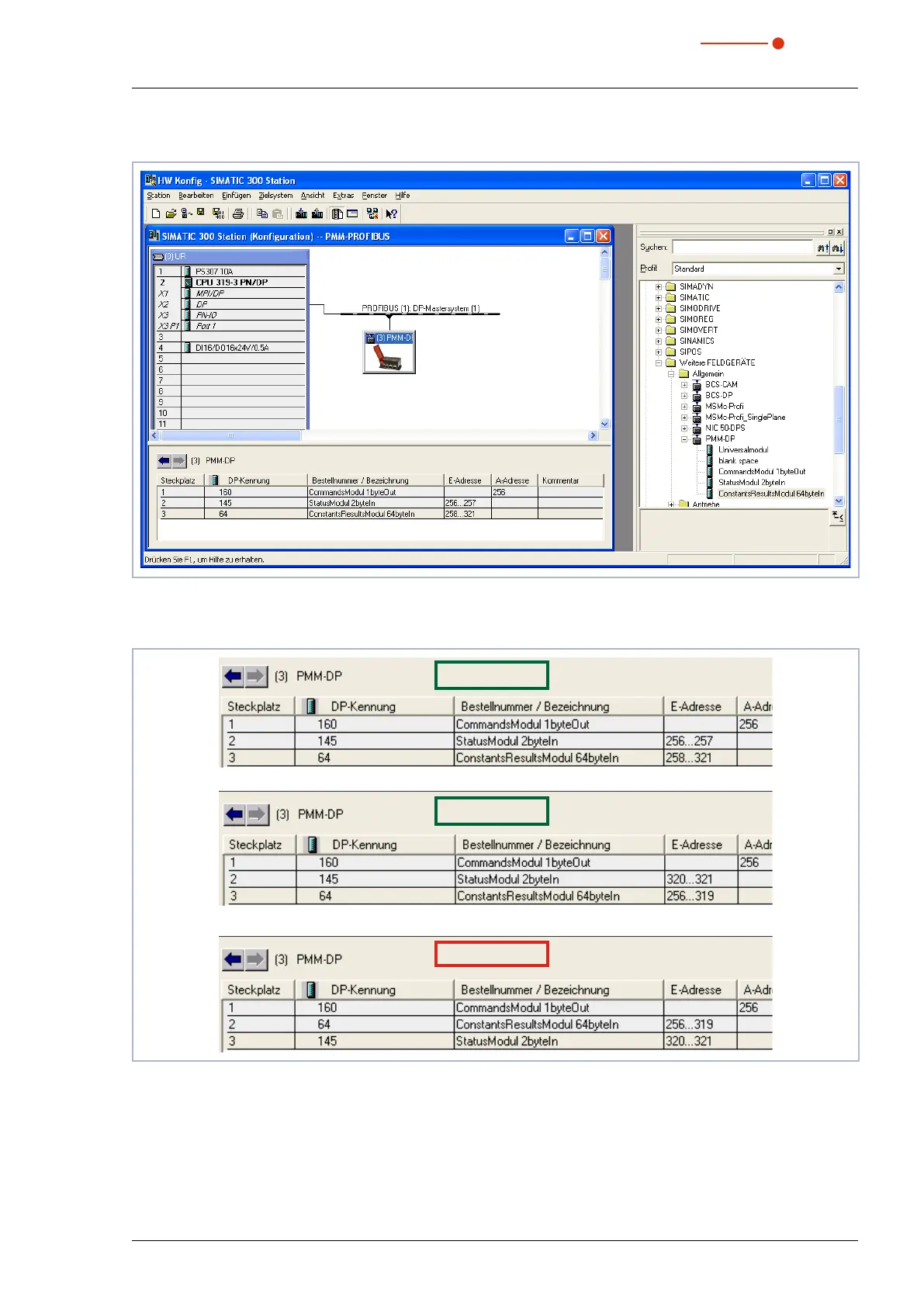

The following screenshot shows the integration of the GSD file under SIMATIC STEP 7.
Fig. 12.2: GSD file under SIMATIC STEP 7
The correct order of the input and output modules in the configuration table must be observed.
Standard
Possible
Not operable!
Fig. 12.3: Order of the input and output modules in the configuration table
