PowerMeasuringModule PMM
35,0(6
19
Revision 13 EN - 02/2023
DANGER
Serious eye or skin injury due to laser radiation
If the device is moved from its aligned position, increased scattered or directed reflection of the
laser beam occurs during measuring operation (laser class 4).
Mount the device in such a way that it cannot be moved by an unintended push or a pull on the
lines.
NOTICE
Damage/Destruction of the device
Contamination and fingerprints on the protective window can lead to damage or destruction of the
protective window during measuring operation.
Do not touch the protective window.
Regularly check the condition of the protective window. The protective window can be cleaned or
replaced in case of heavy, non-removable contamination (see chapter15 „Maintenance and ser-
vice“ on page82).
Only operate the device with a clean protective window.
2. Ensure a stable installation of the device. The device must not be able to move.
3. After mounting the device, check that a collision of the shutter with the laser system is excluded.
A dimensioned view of the swivel range can be found in chapter18 „Dimensions“ on page91.
190
Ø
6.6
5
5 90

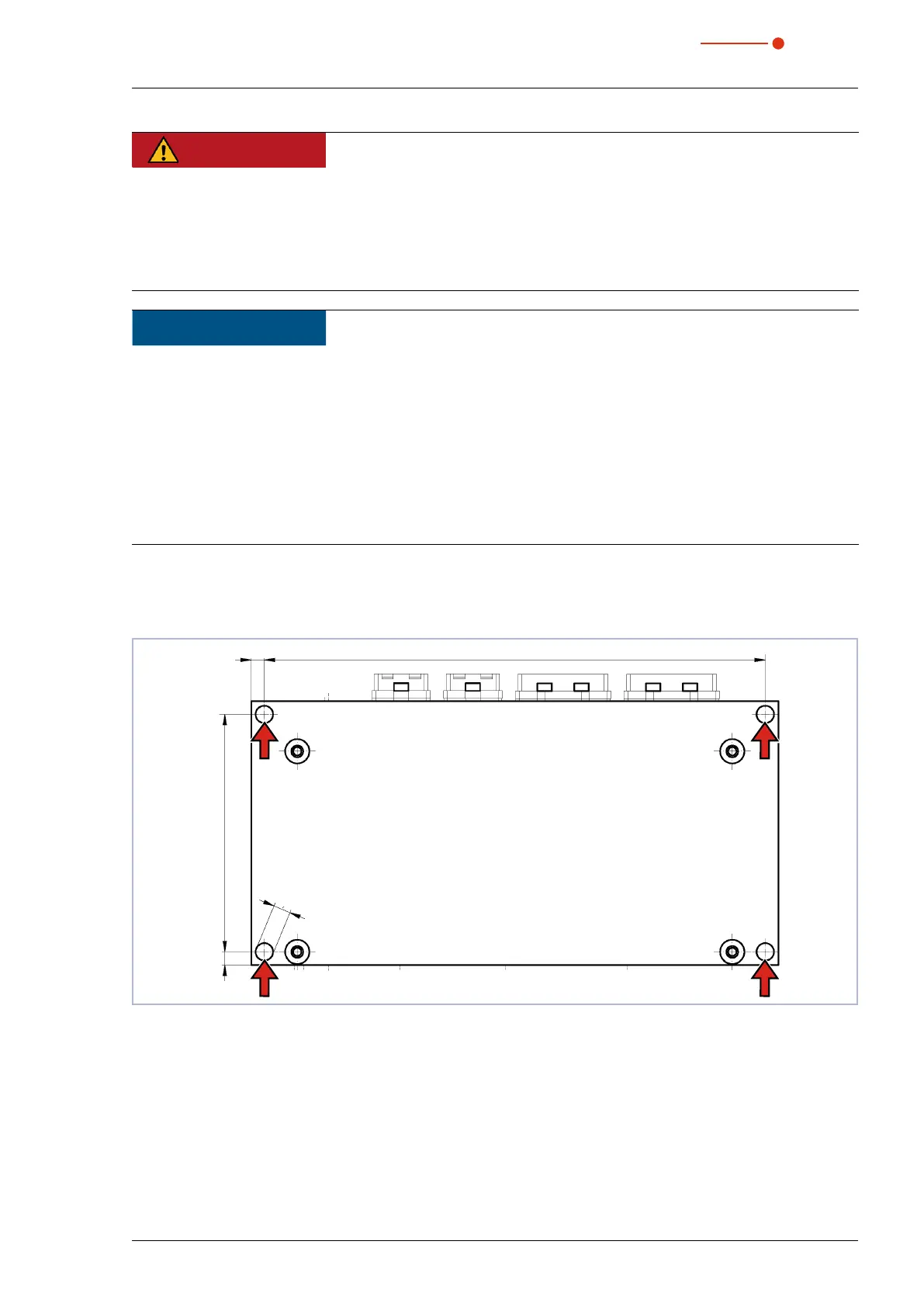

Fig. 6.3: Mounting holes, view underside (Dimensions in mm)
