Procleix TIGRIS - Figure 1.3 Waste Drawer (Liquid Waste Tube Parking Slots Not Shown); Table 1.2 Waste Drawer Component Functions; Waste Drawer

INTRODUCTION AND PRODUCT DESCRIPTION
PROCLEIX
®
TIGRIS System Operator’s Manual 1-11
Volume I: Operating the Instrument
Part # 902649EN Rev. A
Waste Drawer
The Waste Drawer, located on the right side of the Lower Bay, collects solid and liquid
waste.

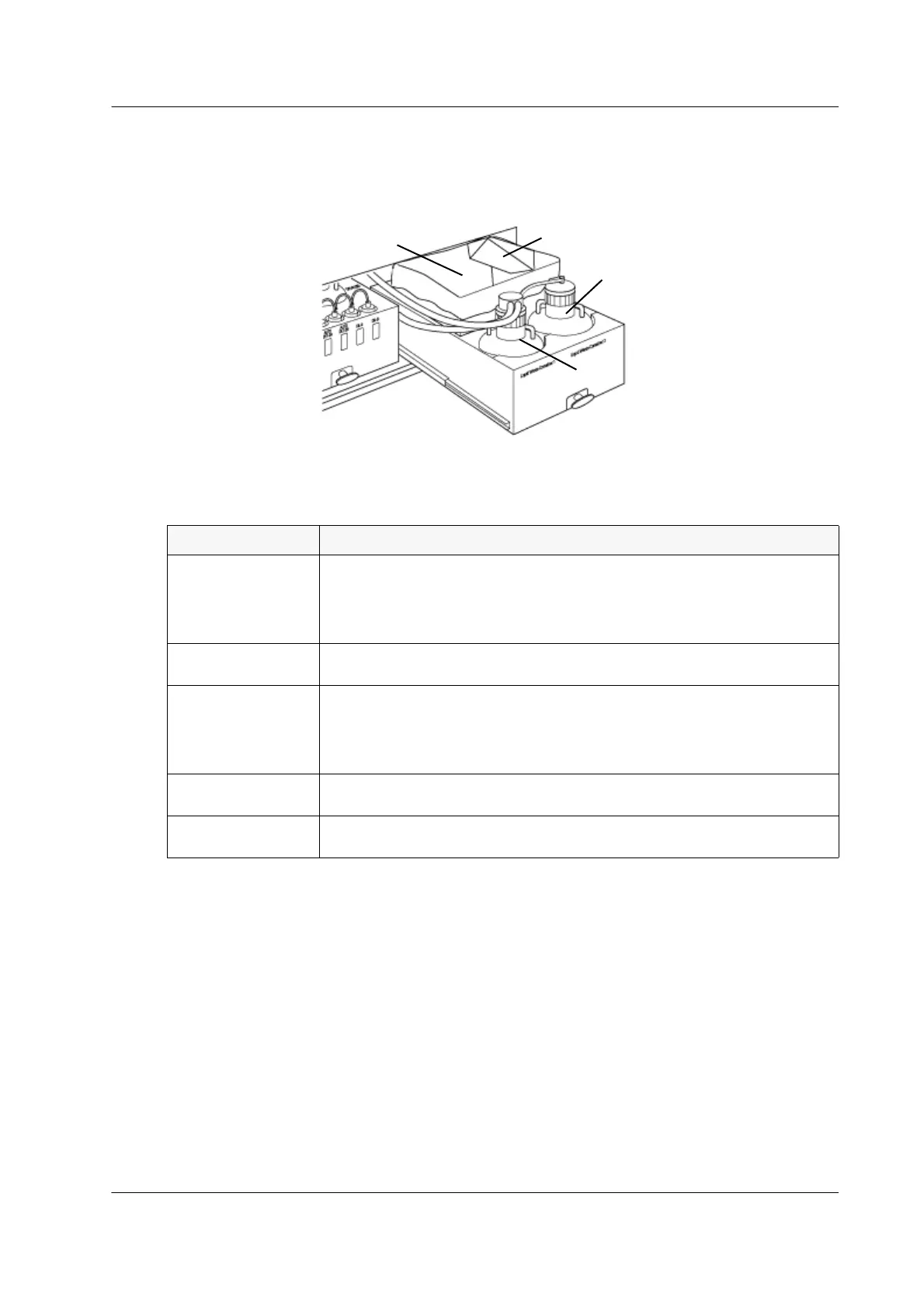

Figure 1.3 Waste Drawer (Liquid Waste tube parking slots not shown)
Table 1.2 Waste Drawer Component Functions
Component Function
Liquid Waste
Container 1
♦ Collects the Wash Solution and wTCR/Sample waste from the
Magnetic Wash Station cycle during Target Capture.
♦ Collects the reaction waste aspirated from MTUs after Deactivation
Fluid is dispensed in the deactivation queue.
Liquid Waste
Container 2
♦ Collects waste from the System Fluid used to rinse the pipettors
throughout the assay process.
MTU Waste
Container
(+ bag)
♦ Collects the used MTUs after reaction waste is aspirated and
discarded.
♦ Collects disposable pipette tips used to transfer the sample and
wTCR to the MTU.
MTU Waste
Deflector
♦ Guides MTUs and pipette tips into the MTU Waste Container to
prevent waste accumulation in one area.
MTU Waste Cover
(not shown above)
♦ Prevents splashing or spilling of waste out of the MTU Waste
Container.
MTU Waste DeflectorMTU Waste Container
Liquid Waste Container 2
Liquid Waste Container 1
