SECTION 1
1-14 PROCLEIX
®
TIGRIS System Operator’s Manual
Part # 902649EN Rev. A Volume I: Operating the Instrument
PROCLEIX ULTRIO Plus
®
Assay
For the PROCLEIX ULTRIO Plus Assay, the carousel configuration is altered to accommodate a
wedge for Target Enhancer Reagent:
♦ Quadrants 1 and 3 - Assay Reagents (see Figure 1.5)
♦ Quadrant 2 - Target Enhancer Reagent (see Figure 1.7)
♦ Quadrant 4 - Discriminatory Probe Reagents (see Figure 1.6)

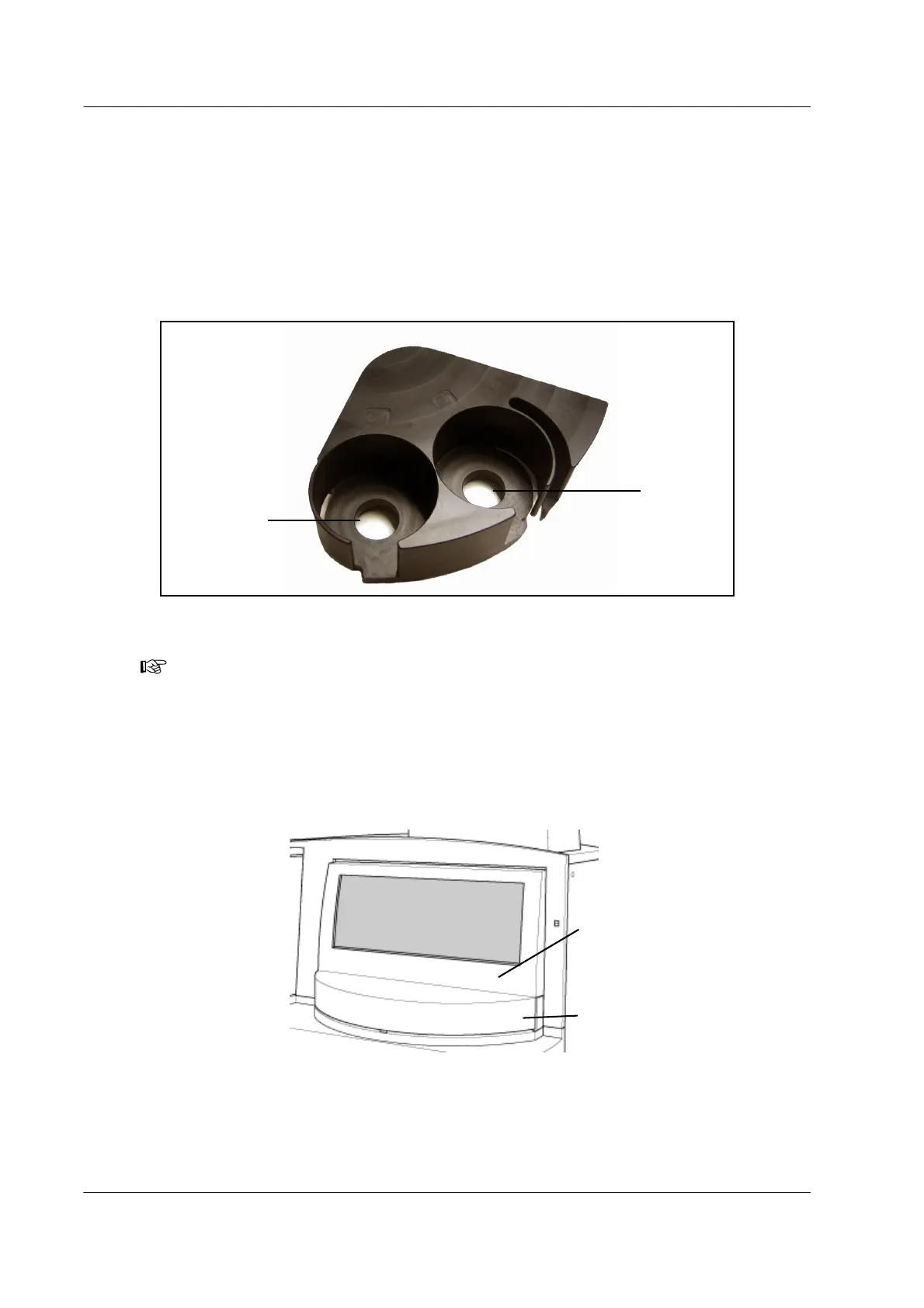

Figure 1.7 Target Enhancer Reagent Wedge
Sample Bay
The Sample Bay, located on the right side of the analyzer, contains the sample racks,
disposable pipette tips, and TCR. It is covered by a two-part door.
Figure 1.8 Sample and TCR Doors
Note: Target Enhancer Reagent loaded into Position 1 is used with ARs loaded in
quadrant 1; Target Enhancer Reagent loaded into Position 2 is used with ARs loaded in
quadrant 3.
Position 2
Position 1
Sample Door
TCR Door
