Assay Reagent Bay
The Assay Reagent (AR) Bay, located on the left side of the analyzer, holds all assay-
specific reagents (ARs) except TCR.

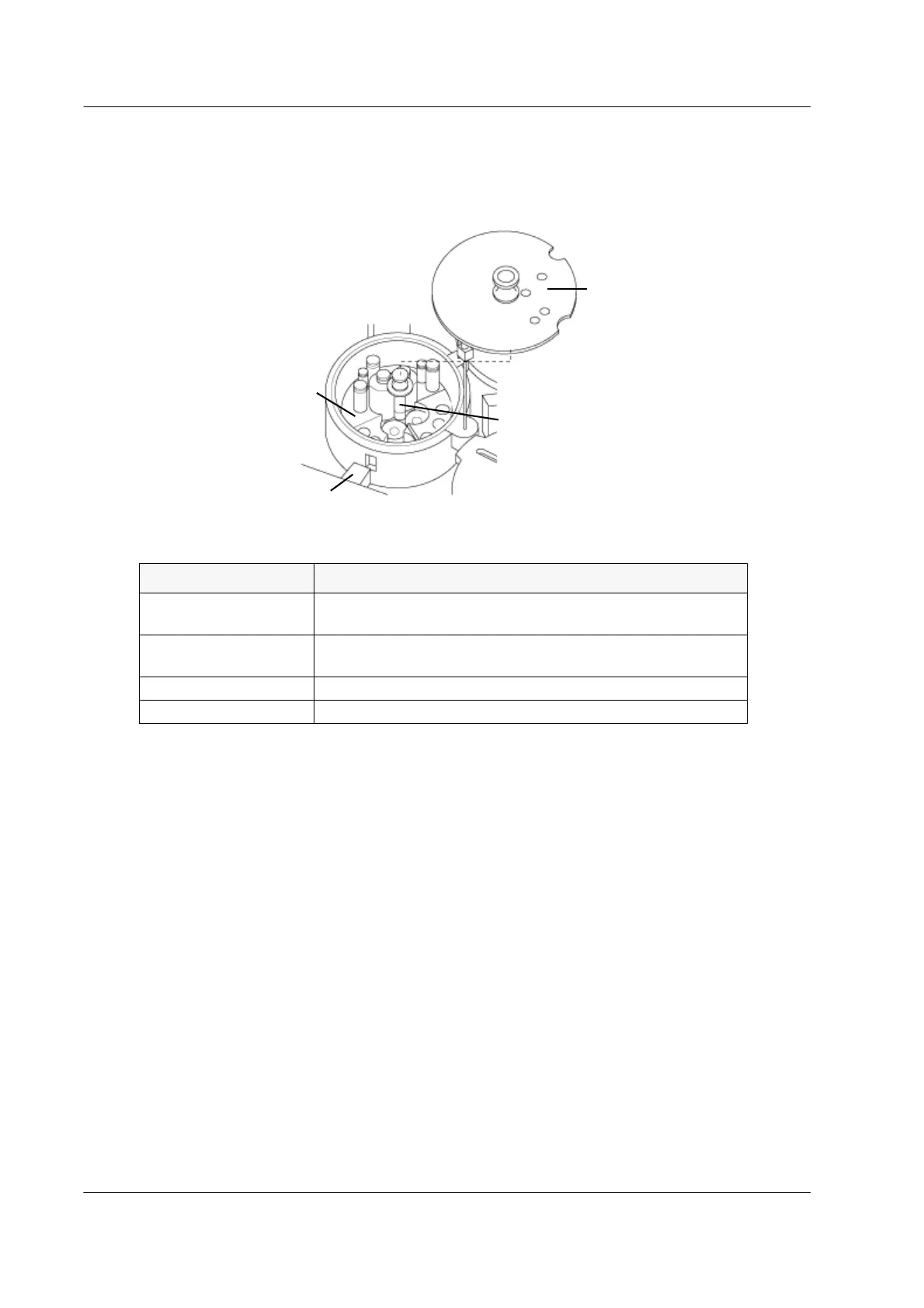

Figure 1.4 Assay Reagent (AR) Bay
Table 1.3 Assay Reagent Bay Components
Component Function
AR Barcode Scanner
Reads the barcode on each Assay Reagent during AR
inventory validation.
AR Carousel
Divided into 4 quadrants. A quadrant holds one set of ARs
(except TCR).
AR Carousel Wedge Removable bottle holder that makes up one quadrant.
AR Carousel Cover Protects opened reagents in the AR Carousel.
AR Cover
AR Carousel
AR Barcode Scanner
AR Carousel Wedge
