5. Close the Fluids Drawer and secure it in place by rotating the latch.
Emptying the Liquid Waste
To empty the Liquid Waste containers, first open the waste drawer:
1. Rotate the latch and pull out the drawer.
2. Disconnect the quick-connect fitting on the Liquid Waste Container 2 bottle cap.
3. Park the quick-connect fitting into the slot above the container on the door frame (Figure
2.6) where it will not interfere with Lower Bay maintenance.

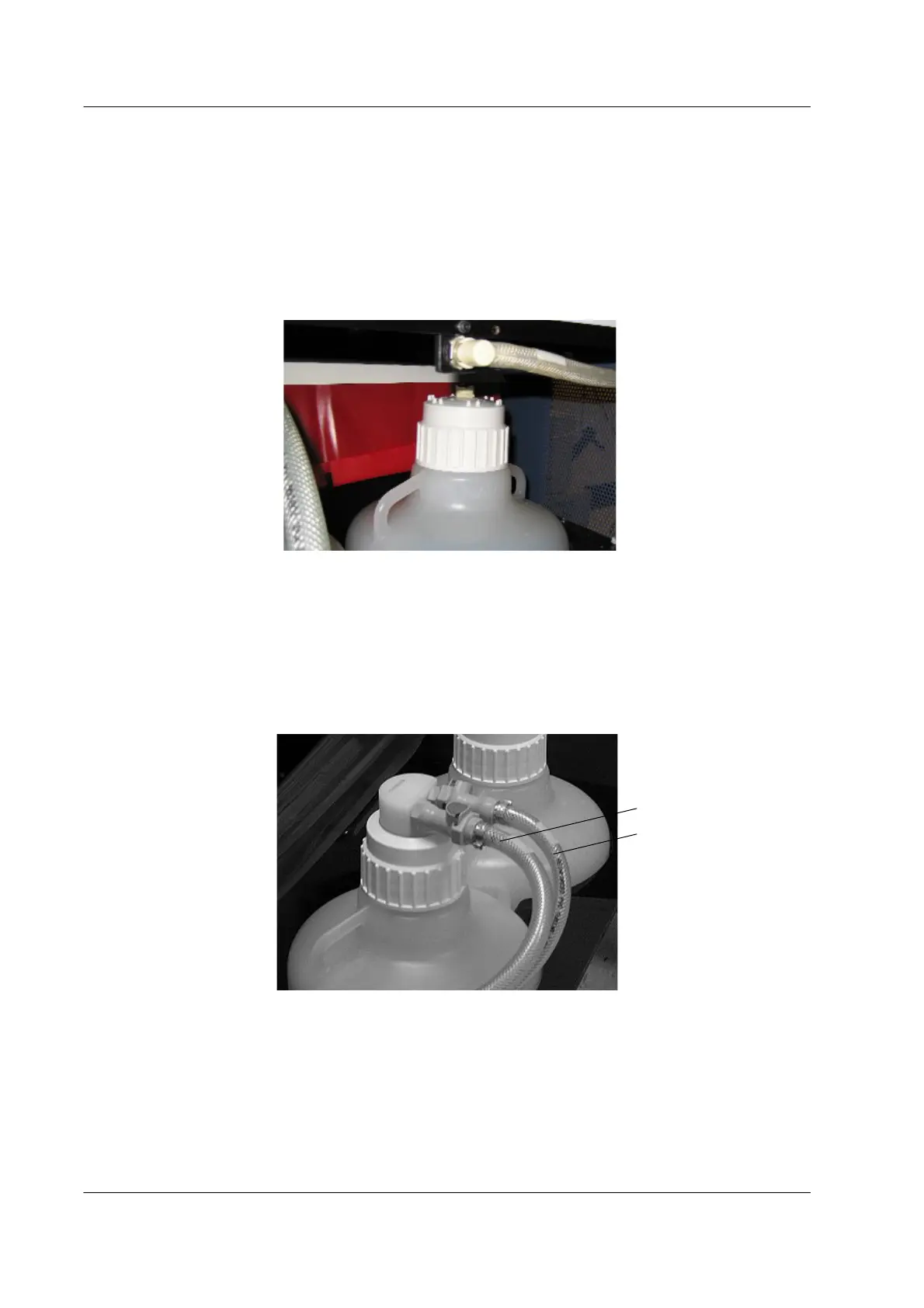

Figure 2.6 Liquid Waste Container 2 Fitting
4. After the hose is secured, pull the drawer out farther to facilitate access to the Liquid
Waste Containers and MTU Waste Container.
To empty Liquid Waste Container 1:
1. Firmly press the gray plastic vacuum fitting of the left line (leading to the vacuum manifold)
on the bottle cap of Liquid Waste Container 1. When the vacuum releases, pull the hose to
disconnect it from the bottle cap. Apply firm pressure to release the hose fitting.
Figure 2.7 Liquid Waste Container 1 Fittings
2. Firmly press the gray plastic vacuum fitting of the right line (leading to the vacuum trap) on
the bottle cap of Liquid Waste Container 1. When the vacuum releases, pull the hose to
disconnect it from the bottle cap. Apply firm pressure to release the hose fitting.
3. Inspect the o-rings on the end of the vacuum hoses to make sure they are present and
undamaged.
