Proscend M350 Series User Manual

M350 Series User Manual 201

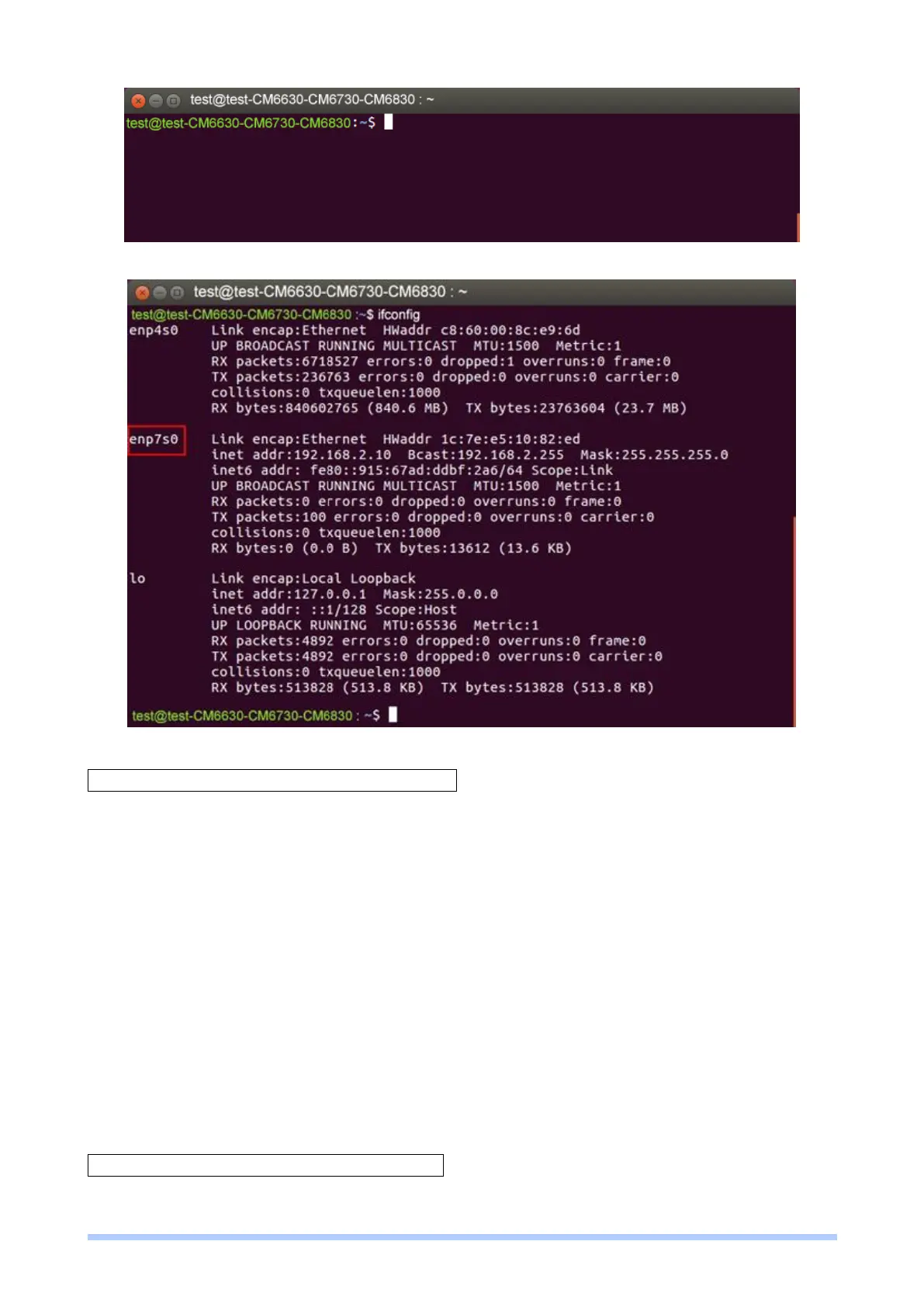

 From the following picture, it shows the interface of network card, enp7s0.
There are two examples to explain how configure VLAN settings.
Example 1: PC-A pings PC-B(Access to Trunk)
For PC-A, add default gateway and LAN's MAC to ARP.
 Load VLAN and create VLAN interface, command as below:
 sudo modprobe 8021q
 sudo vconfig rem eth1.20
 sudo vconfig add eth1.10
 Configure VLAN interface as below:
 sudo ifconfig eth1.10 192.168.1.20 netmask 255.255.255.0 up
 sudo ifconfig eth1 0.0.0.0
 sudo route add default gw 192.168.1.1 eth1.10
 sudo arp -s 192.168.1.1 LAN's MAC
 eth1 is network interface on PC-A
Therefore, PC-B will receive Tag20 traffic when PC-A sends ICMP packet to PC-B IP (192.168.2.20)
and captures traffic on PC-B.
Example 2: PC-A ping PC-B (Trunk to Access)
For PC-B, add default gateway and LAN's MAC to ARP
