3-8
VIBXPERT 11.2010
Measurement - Route
Notes about the tree view:
- If the tree is not fully opened, click on a node (‘Machine train’ or
‘Machine’) (see figure to the left and p. 2-4).
- If the 'Graphic Route' option is activated (p. 2-14), you can select
the measurement location using the machine graphic (see left).
- If the branch cannot be opened up to the measurement location
level, press MENU and select 'Expand' -> 'Meas. points' (s. below)
Notes about the list view:
- Only the measurement locations appear in the list view.
- The order of the measurement locations in the list view can vary
from the order in the tree view. The list view indicates the order of
the route. The tree view indicates the sequence in the measure-
ment location database.
• Select the measurement task (see below), and connect the sensor
specified in the info field.
•
Click to start the measurement.
Reference measurements must be carried out first (e.g. RPM
measurement for the normalization of a bearing measurement).
Various route options shorten the measurement times. Depending
on which option is enabled in the Route Setup, the measurements
can take place virtually automatically (see also p. 2-16).
•
Select the next measurement task and start the measurement.
If all measurement tasks have been completed, the message 'Route is
finished!' appears.
Note
Measurement channel and sensor
Note

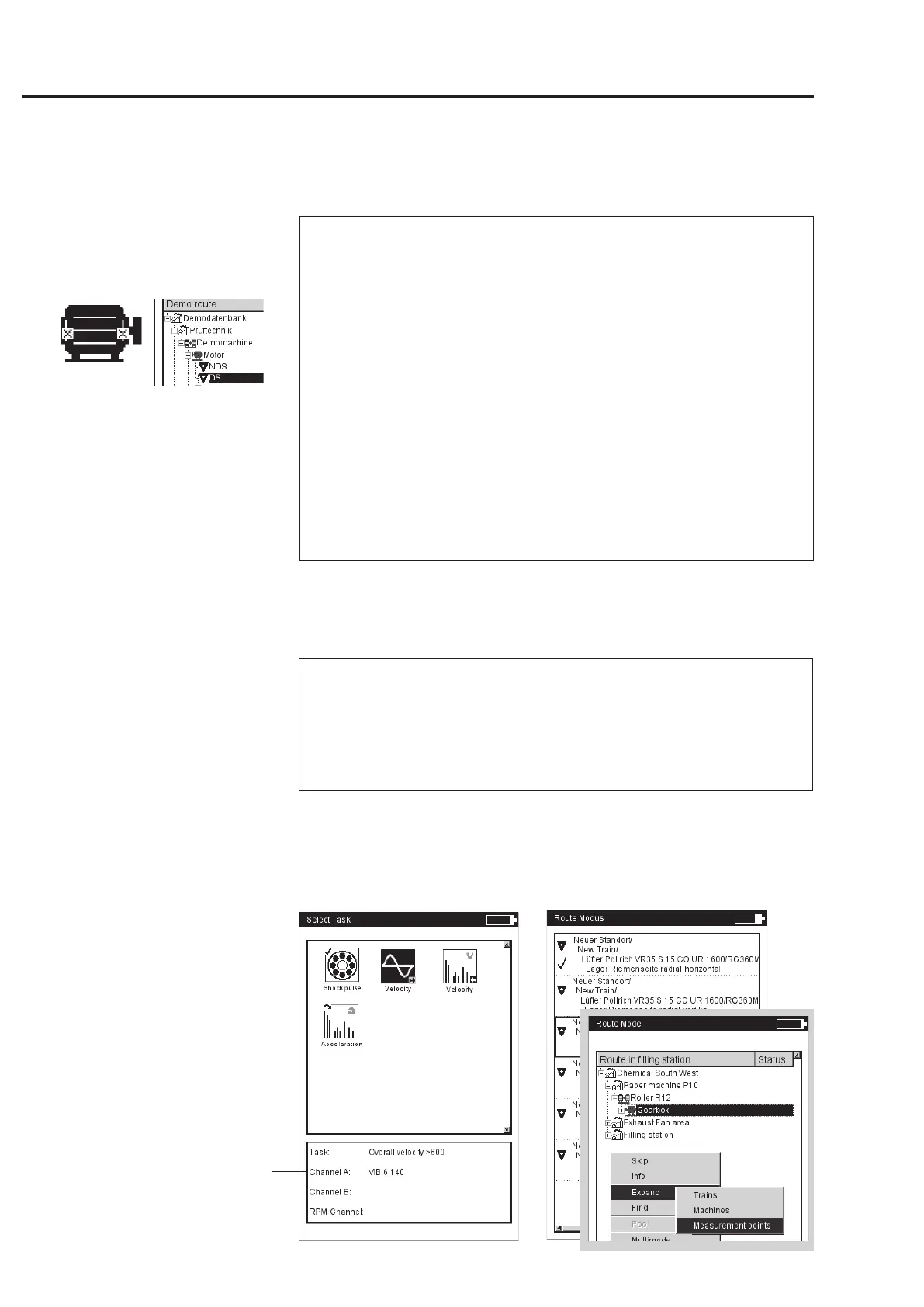

Left:
Measurement tasks in the route
Right:
Route in tree view / list view
