PCX SMS AND PCX 256 SYSTEM MANUAL
Page: 120 RINS871-3

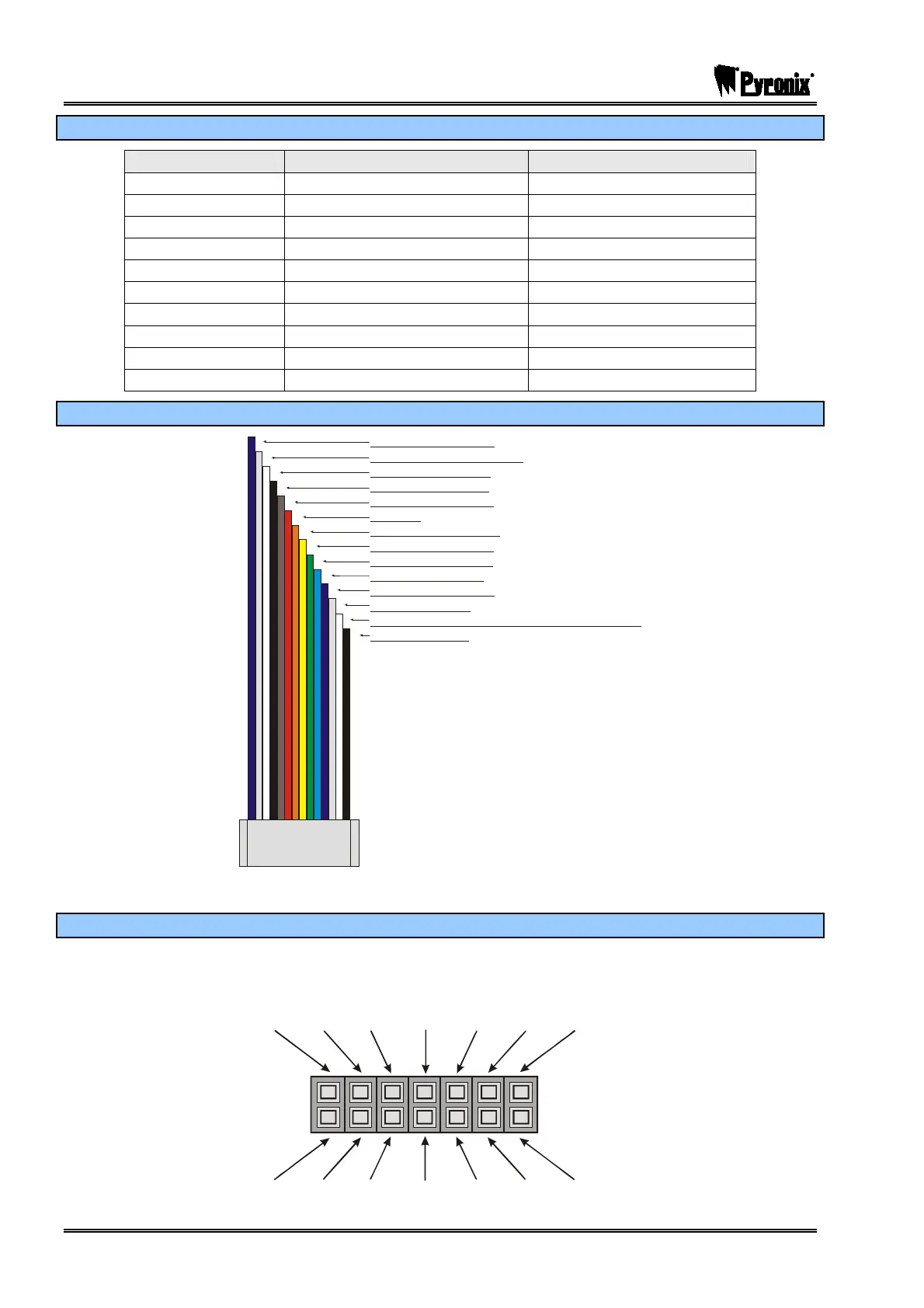

17.5.3 STU/ATE Output Pins
COM LOOM Default Type (PCX 26/SMS) Default Type (PCX 256)
1 (Blue)
Fire (0001) Fire (0001)
2 (Orange)
HU Device Any (0009) HU Device Any (0009)
3 (Yellow)
Unconfirmed Any (0018) Unconfirmed Any (0018)
4 (Brown)
Final Arm Any (0022) Final Arm Any (0022)
5 (Purple)
Tamper Any (0007) Tamper Any (0007)
6 (Green)
Confirmed Any (0006) Confirmed Any (0006)
7 (Black)
Omit Rearm Any (0017) Omit Rearm Any (0017)
8 (Purple)
Global Fault 2 (0056) AC Fail (0052)
9 (White)
Global Fault 1 (0055) Global Fault 2 (0056)
10 (Light Grey)
Test ATS (0064) Test ATS (0064)
17.5.4 STU/ATE Plug-On Loom Diagram
Purple (ATE Output 8)
Light Grey (ATE Output 10)
White (ATE Output 9)
Black (ATE Output 7)
Brown (ATE Output 4)
Red (0V)
Orange (ATE Output 2)
Yellow (ATE Output 3)
Green (ATE Output 6)
Blue (ATE Output 1)
Purple (ATE Output 5)
Light Grey (+12V)
White (Red Care Reset/Failed To Communicate)
Black (Line Fault)
For programming / changing the ATE outputs please see ‘CHANGE OUTPUTS’ on page: 79.
17.5.5 STU/ATE 14 Pin Connector Diagram
The 14 pin connector can be found on the top left hand side of the PCX printed circuit board. The pins are
numbered below. Please see above for the corresponding outputs.
10
(Light
Grey)
8
(Purple)
1
(Blue)
6
(Green)
7
(Black)
9
(White)
+12
v
(Light
Grey)
5
(Purple)
0v
(Red)
4
(Brown)
Line Fault
Input (Black)
RCR, Failed to
Comm (White)
3
(Yellow)
2
(Orange)
