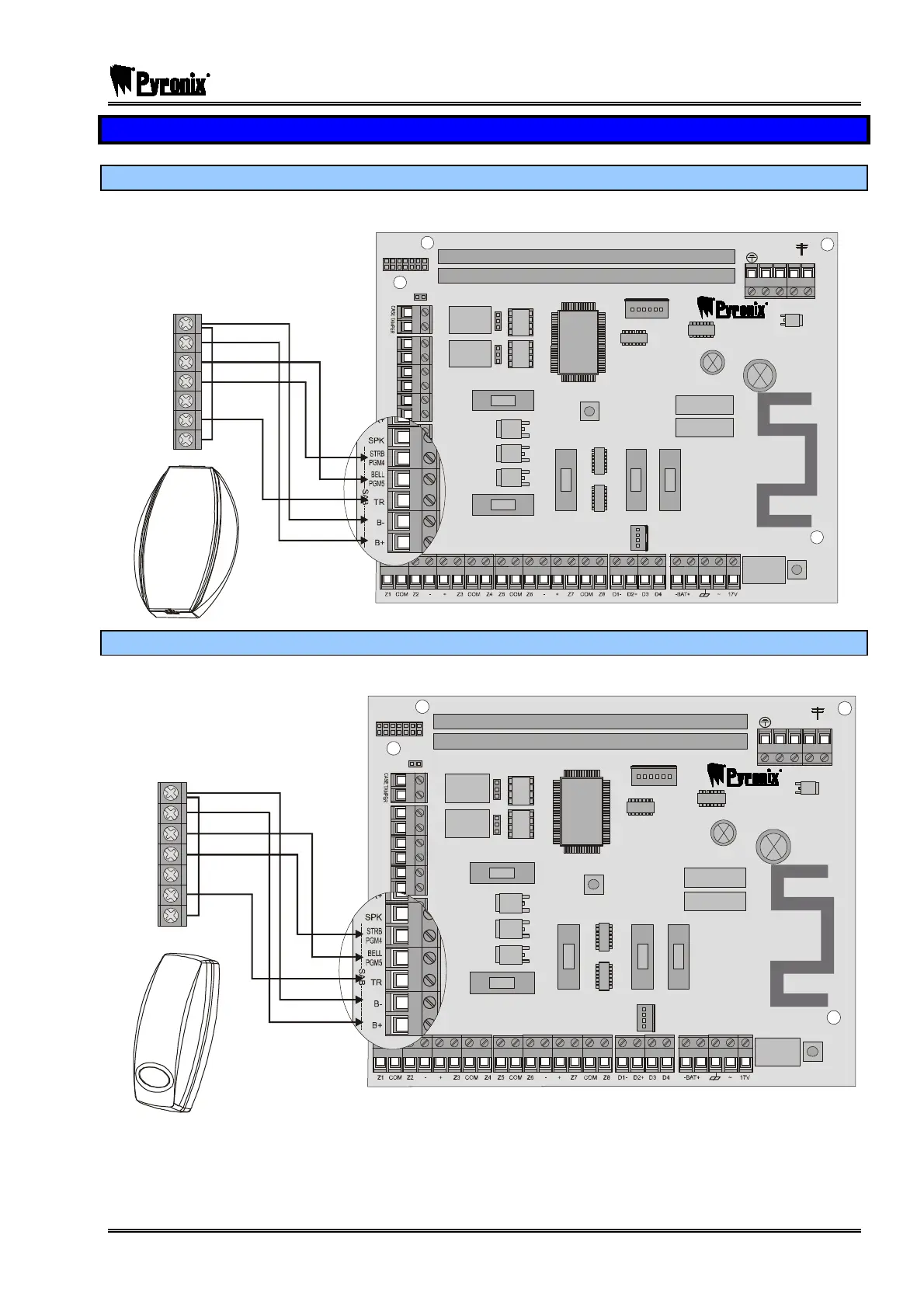

17.15 Programmable Outputs Wiring
17.15.1 Belle Connection
NOTE: PGM 5 is programmed as “Bell Any”, and PGM 4 is programmed as “Strobe Any”.
NC1
COMMS PGMS
TAMPER
RESET
ENGINEER
KEYPAD
RS232
BATTERY
CONNECT
----------------SAB----------------
COMMUNICATION CARD
EXPANSION CARD SLOT
AUX+
C1
SPK
NO1
NC2
A
-1 B-1 A B
C2
TR
NO2
B-
B+
F2
F3 F4 F5
F1
PGMS
BELL
AUX
BUS
BATTERY

BELLE
B–
B+
BA
STB
SPARE
BT
TF
17.15.2 Decibell Connection
NOTE: PGM 5 is programmed as “Bell Any”, and PGM 4 is programmed as “Strobe Any”.
NC1
COMMS PGMS
TAMP ER
RESET
ENGINEER
KEYPAD
RS232
BATTERY
CONNECT
----------------SAB----------------
COMMUNICATION CARD
EXPANSION CARD SLOT
AUX+
C1
SPK
NO1
NC2
A-1 B-1 A B
C2
TR
NO2
B-
B+
F2
F3 F4 F5
F1
PGMS
BELL
AUX
BUS
BATTERY

DECIBELL
B–
B+
BA
STB
SPARE
BT
TF
