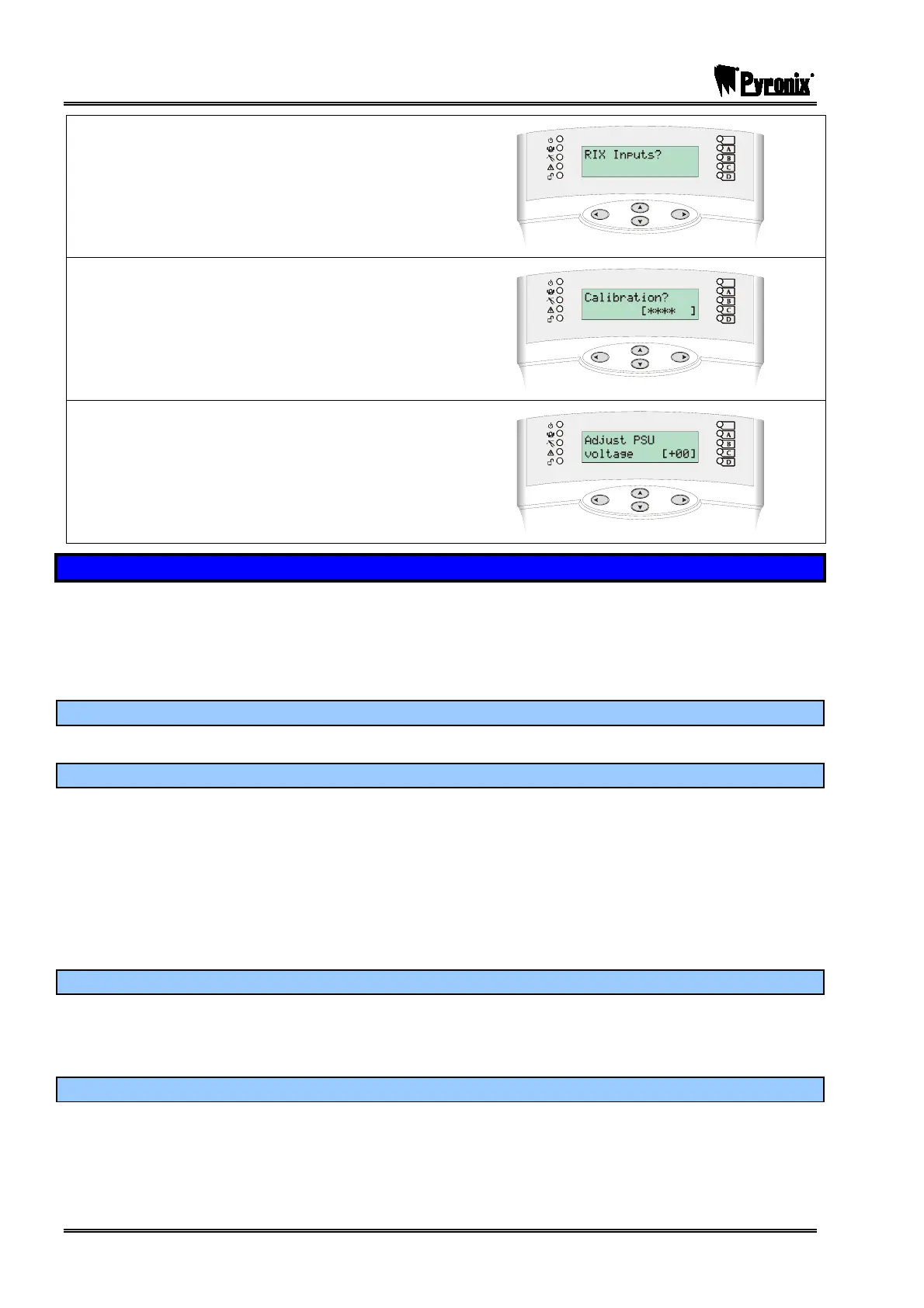

Enter a RIX address and repeat the above for the RIX
inputs. Press the Pkey. Repeat for the keypad and
reader inputs. Press the Pkey. ‘View Inputs’ will be
displayed, press the Pkey.
If you would like to calibrate the PSU voltage of the
PCX system, Press the Okey and enter
#.
Place a calibrated volt meter across the battery
connectors (with the battery disconnected) or across
the auxiliary terminals and use the ^and`until
you reach the desired voltage (13.7V is the
recommended value). Press the Okey. You will be
returned to the Engineer Menu.
13.22 Set Up Downloading
The PCX system has uploading and downloading capability. The PCX UDL Software allows you to monitor
the status of each input, alter programming, and review the logs.
There are two way that the panel communicates with the PC, one is remotely; via the telephone line (thus
you will require the digi modem card (PCX-DIGI+ARM) and the other is directly; by using an RS232 lead
(PCX-RS232L) which connects into the PCX 256 expander card and your PC.
13.22.1 Download By
Select either RS232 (direct connection) or Modem (remote dial in connection).
13.22.2 Security Mode
This function allows you to choose a range of dialling modes that can be used:
Auto Answer: permits the PC to dial into the panel.
Dial Back: permits the PC to dial the panel, which hangs up the call and dials the PC back to establish
communication.
Panel Dials: does not allow the PC to dial into the panel at all.
All modes allows the panel to dial the PC without restriction. At any time, the panel can be forced to dial the
PC by entering the Manager menu and selecting the Dial Out Menu. Please see page 109.
13.22.3 Telephone Line
Dedication Line: When the PC dials the panel, it will respond immediately.
Shared Line: When the PC dials the panel, it will hang up after the second ring, and dial again. The first call
primes the panel, which will then answer the second call.
13.22.4 ARM / Modem Telephone Number
To be used in conjunction with the ‘DIAL OUT MENU’ function (see page: 109), these are programmed for
the appropriate PC. The ARM telephone number is used in order for the panel to dial to a PC that shows all
activations (Not available on the PCX 26/SMS). The Modem telephone number is used to dial to a PC in
order to get all the data back.
