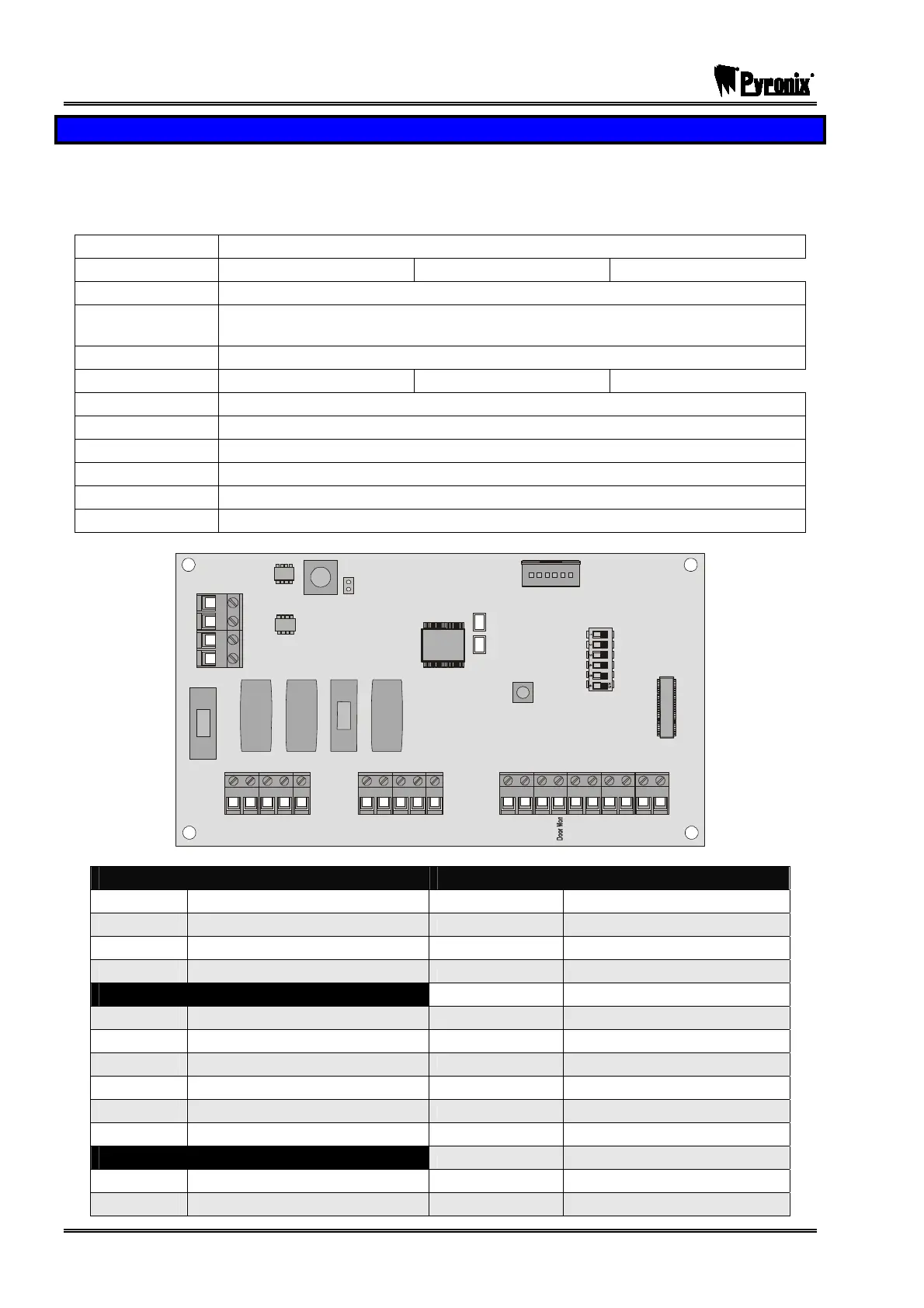

17.14 Access Control (PCX-ACCESS)
PLEASE NOTE THIS CANNOT BE USED ON THE PCX 26/SMS SYSTEM
The PCX system provides access control facilities integrated into the alarm system, incorporating the
following features:
Number of Doors 1 per door station, max (dependant upon other control devices fitted):
PCX-256: 15
Reader Head Fully sealed to IP66 for exterior use.
Lock Release
Suitable for any type, including car park barriers. Voltage or volt-free outputs
available, for 12V or 24V DC, or AC mechanisms.
Tags Proximity tags shared with system operation. Max:
PCX-256: 500
Lock Open Timer programmable individually 0 – 250 seconds.
Door Open Timer programmable individually 0 – 250 seconds.
Door Monitor Yes – may be integrated into alarm system.
Local Alarm Yes – changeover relay contacts.
Request to Exit Input for normally open push button.
Power Supply Integrated with door station. Can power second station for two-way access.
0V
PTE
0V 0V
13V
D-
D+
LED
SDR
LOCK 0V
L
O
C
K
A
L
M
R
E
L
A
Y
13V
NC
C
NO
0V
13V
NC
C
NO
D1
D2
D3
D4
R
E
S
E
T
T
A
M
P
E
R
1
2
4
8
16
BATT
A
DDRESS
RS-485 Outputs etc
D1 RS485 0V Supply 0V Lock 0V
D2 RS485 +12V Supply 13V Lock +12V
D3 RS485 ‘A’ Data NC Lock Normally Closed
D4 RS485 ‘B’ Data C Lock Common
Reader Connections
NO Lock Normally Open
0V Black (0V) 0V Supply 0V
13V Red (+12V) 13V Supply +12V
D- Brown NC Alarm Normally Closed
D+ Blue C Alarm Common
LED Green NO Alarm Normally Open
SDR White 0V RTE (Exit Button)
Fuse Values
RTE RTE (Exit Button)
F1 3.15A 0V Door Mon.
F2 3.15A Door Mon Door Mon.
