PCX SMS AND PCX 256 SYSTEM MANUAL
RINS871-3 Page: 63

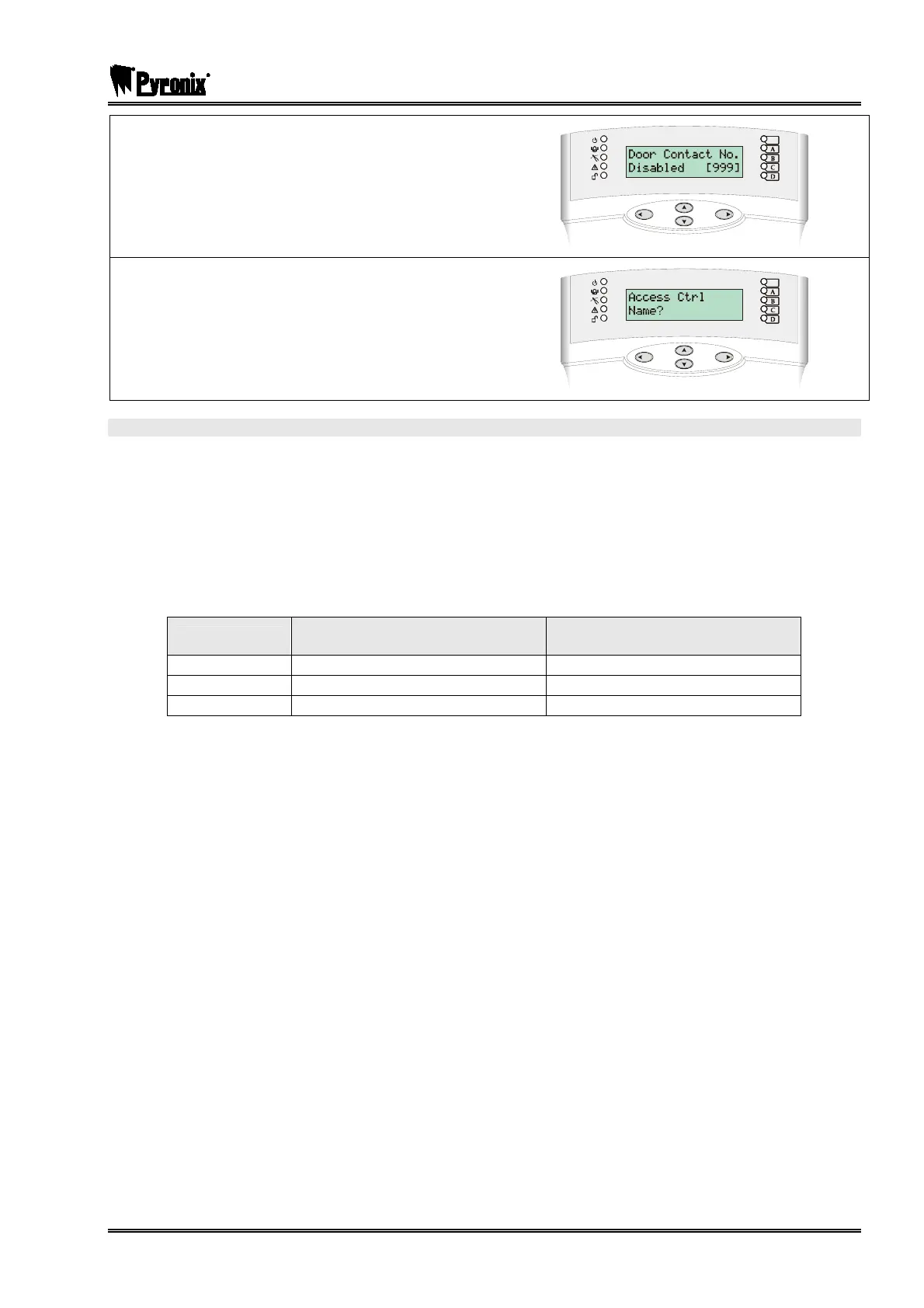

Enter the input number to monitor the chosen door.
Please note that this must be selected for the door
monitoring to function.
Entering ‘999’ disables the monitoring for this door.
To enter a personal name for the access control,
press the Okey. Use the text programming to enter
this, see page: 42.
Press the Okey, you will be returned to the engineer
menu.
Door Monitoring Facility
If the door is to be monitored by the alarm system only, the door monitoring input should be wired direct to
the end station (not via the door station) and programmed appropriately (see table below).
If the door is to be monitored by the door station only (providing local alarm), the door monitoring input
should be wired as page 138, and should be programmed as omitted in ‘Change Inputs’ menu. The ‘Door
Contact No.’ should be an input number that is unused on the system.
If the door is to be monitored by the door station and the end station, the door monitoring input should be
wired as page 138, and be programmed in the ‘Change Inputs’ menu (see table below). The ‘Door Contact
No.’ should correspond to this input.
Input Type
Valid door open (i.e. valid tag or
‘request to exit’)
Door forced (i.e. no valid tag,
nor ‘request to exit’)
Final Exit Starts entry time, if system armed Day alarm
Switcher No response Day alarm
All other types No response Normal input response
NOTES: If input is programmed as ‘isolated’ then monitoring will be SOLELY at the door station. If the input
is to be monitored by the alarm system ONLY, it should be wired directly to the system, and NOT via the
door station.
