Matrix 832 / 832+ / 424
RINS428-5
Page 113

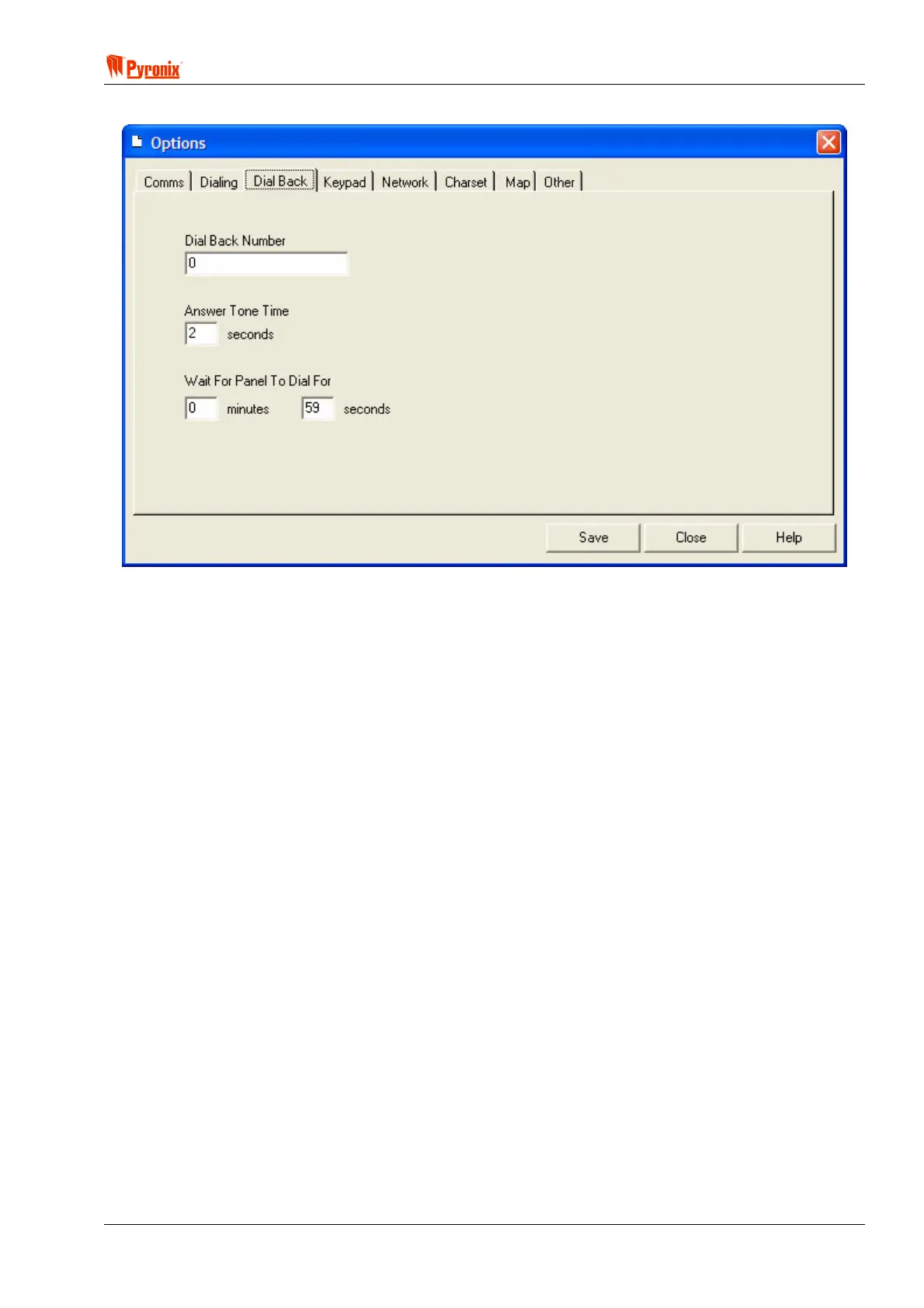

11.5.4 Configuring Dial Back Options
Dial Back Number -
This is the number that the panel will dial.
Answer Tone Time -
When the panel dials it will keep the
answer tone going for thi
s length of time, the value
of this can be 1 to 51
seconds. This all
ows time for the MXUDL software to a
nswer the phone a
nd make the
connectio
n.
Wait for panel to dial for
- This is in minutes and seconds. Thi
s
is how long the PC
will wait before timing
out.
