8.1 Digital Communicator
PC Programming Procedure

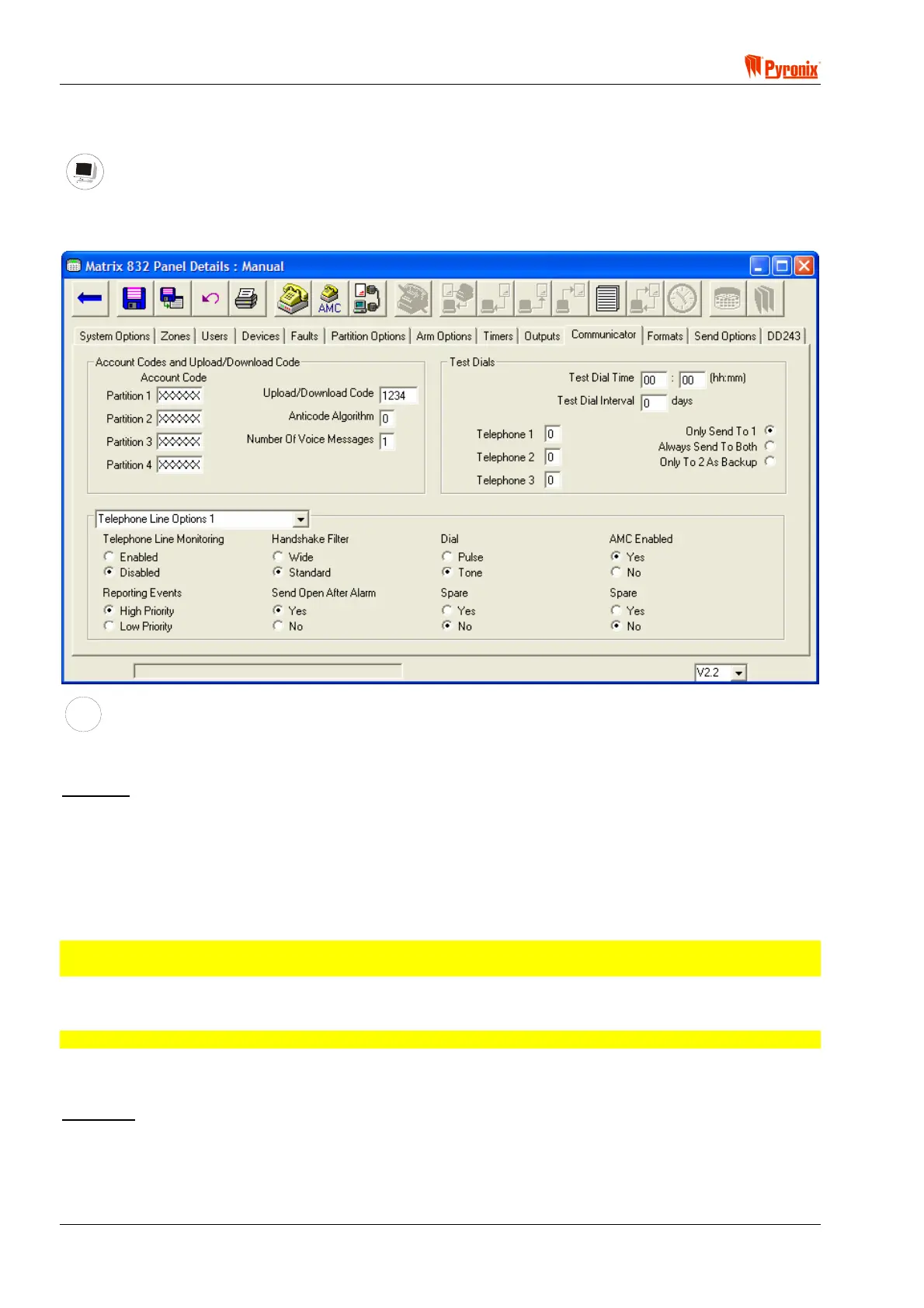

The PC screen below shows how to program the digital communicator options from PC software. Once an
option has been chosen press the <save> button and proceed to the next screen.
MEANING
Programmable Options Explanation
Account, Upload /Download Load Codes & Test Call Dials
Numbers
Account Codes - There are 4 to 6 hexadecimal digit codes that are used to identify each partition when
reporting to the monitoring station. These codes are used as well as customer identification numbers for the
UDL and PC Monitoring software. It is possible to allocate the same or different account codes to each
partition.
Upload / Download Code - This is 4 digit decimal code that is used for security purposes when the engineer
uses the PC software to program and assist the system. Connecting to the system will be only possible if the
code on the PC software is the same as the one programmed on the panel.
NOTE: The Upload /Download Code must be changed from factory default (1234) if the system is
connected to the telephone line.
Anti-code Algorithm Number - This is a 1-digit number (from 0 to 8) that tells the panel which algorithm to
use to generate the seed code.
NOTE: Most Pyronix Anti-code generating software will only generate codes for Algorithm 0.
Number of Voice Messages – This is the number of times a voice message is dialled for each telephone
number.
Test Dials
The panel will dial to the CMS and send test report at any programmable time and interval. This is used to
report to the CMS that the system is OK and no other events have been created during the programmed
interval of time.
Test Dial Time - This may be programmed to any time when test dial is required.
To Next Page
