Matrix 832 / 832+ / 424
Page 40 RINS428-5
7.7 Zone Types, Configuration, Attributes & Partition Allocation
PC Programming Procedure

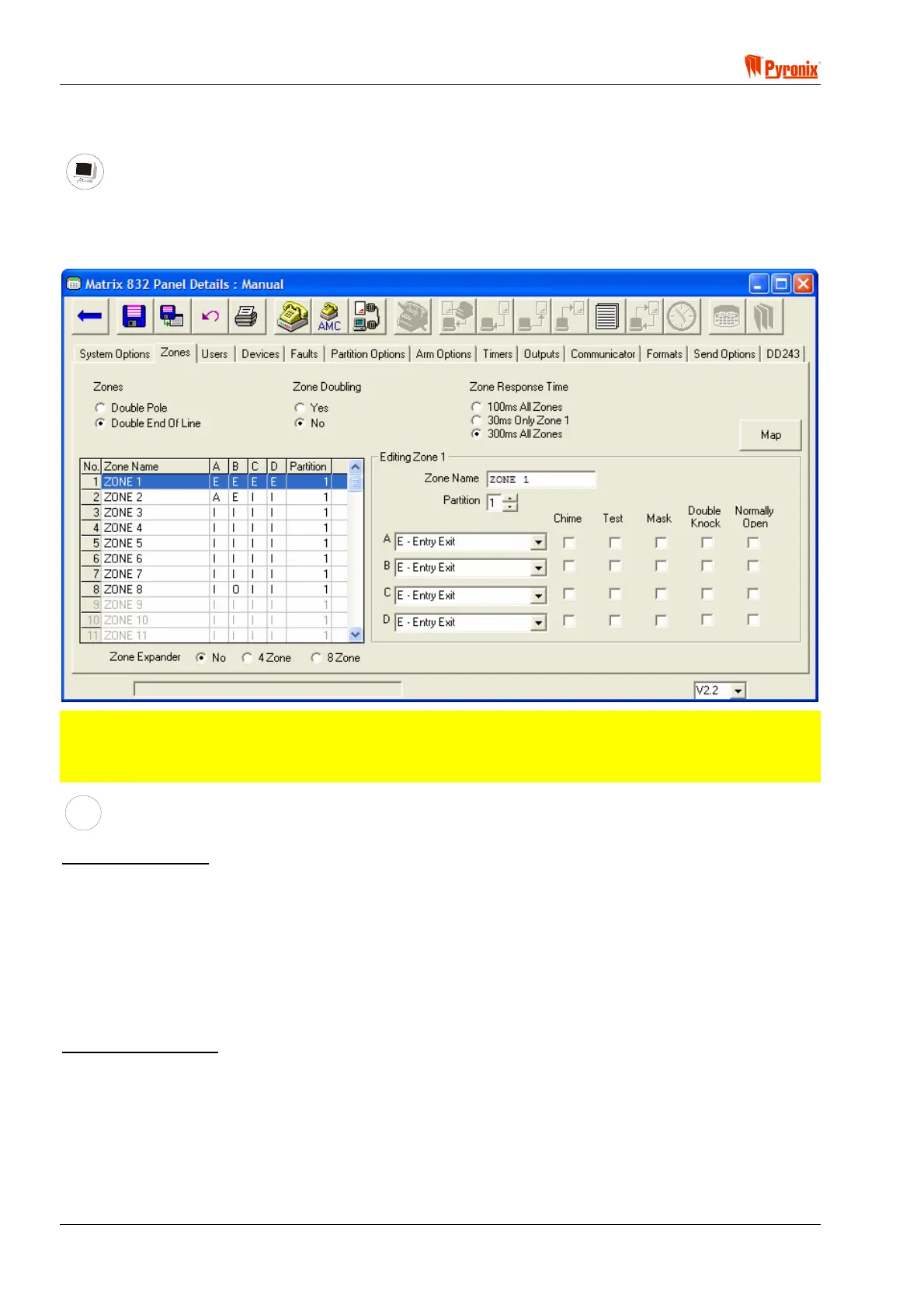

The PC window below shows how to program zone types, arm modes, zone partition allocation and zone
attributes from the UDL software. Once an option has been chosen, press <save> and proceed to the next
window.
NOTE: The system has been designed to allow the engineer to divide the panel into 4 fully
independent subsystems. Any zone can be allocated to one of the 4 available partitions, and within
each partition the zone can be assigned any of the 4 different arm mode options. The zone attribute
option determines how the zone will operate.
MEANING
Programmable Options Explanation
Zones (Zone Types)
Double Pole (N/C zones) - This is a normally closed zone configuration. One zone can be dedicated as an
alarm or tamper.
Double End of Line (DEOL) -This configuration uses end of line resistors (4k7Ω), which allows the detection
of both zone states alarm and tamper on the same zone connection.
Zone Doubling - This option allows the engineer to double the number of zones on the panel. By using 3
resistors (1 x 2k2Ω and 2 x 4k7Ω), all zones will be split into 2 alarm zones. For instance zone 1 will become –
zone 1 and zone 17. For the way zones are split, see the table below. By default the normally closed option
will be disabled and the Double End Of Line (DEOL) option will be enabled when zone doubling is selected.
Zone Response Time
100ms All Zones - In normal condition the minimum sensitivity of all zones is 350ms. When this option is
enabled the zone sensitivity will be converted from 350ms to 100ms (Fast zones). This is a global option
applying the option to all zones.
30ms Only Zone 1 - When this option enable then only zone No 1 will be converted to be high sensitivity
zone. It will be converted from 350ms to 30ms. Zones from 2 to 32 will be still sensing 350ms.
350ms All Zones - This is the default sensitivity of all zones that is normally used, and is 350ms.
To Next Page
