Matrix 832 / 832+ / 424
Page 136 RINS428-5

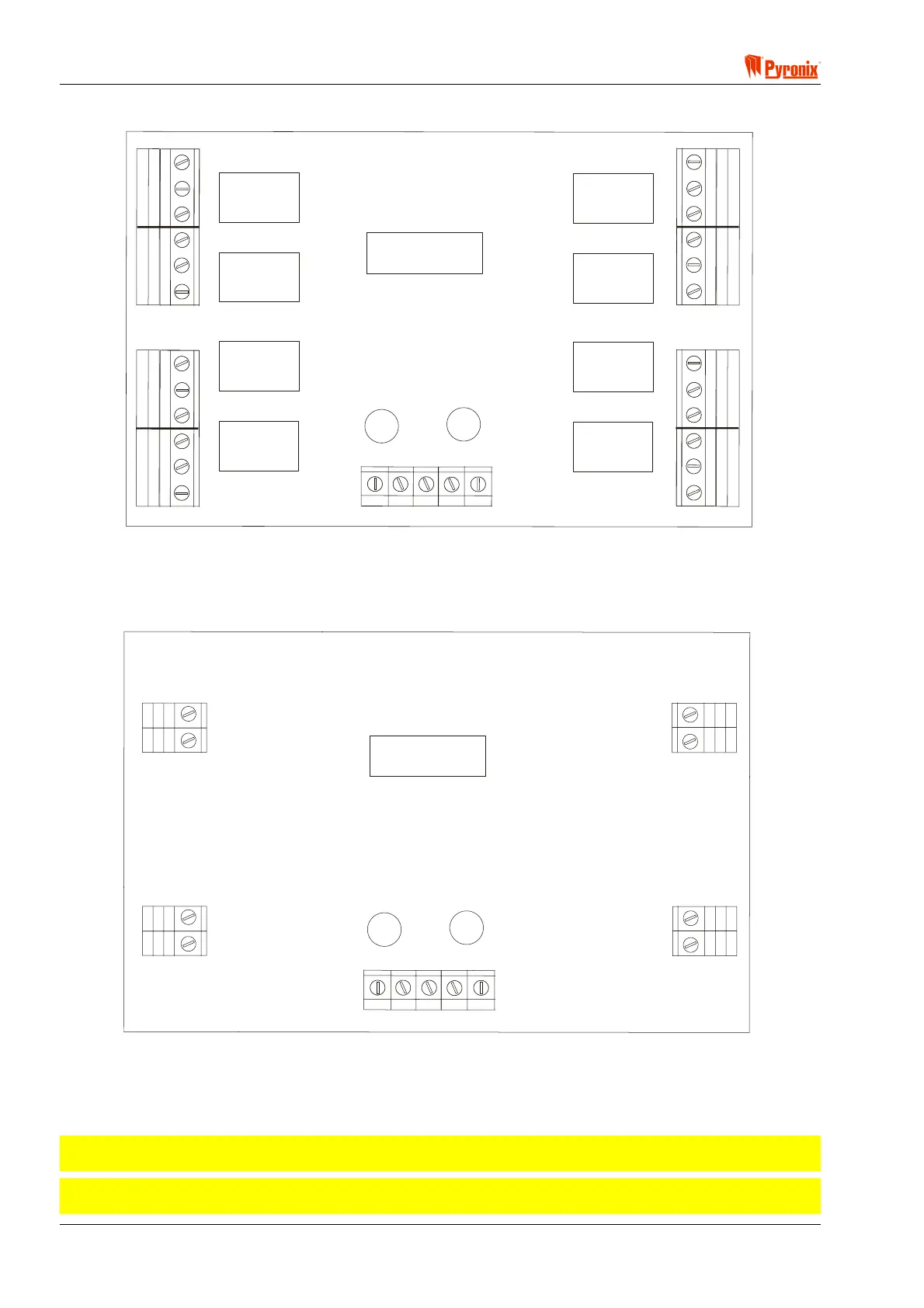

12.8 Matrix PGM Expanders
1
2
7
1
0
6
5
1
1
8
9
K- KD K+ TT
RELAY
RELAY
RELAY
RELAY
RELAY
RELAY
RELAY
RELAY
NC C NONC C NO
NC C NO
NC C NO
NC C NO
NC C NO
NC C NO
NC C NO
MX-ROX8R
NC = Normally Closed
C = Common
NO = Normally Open
K- KD K+ TT
NO
NO
NO
NO
NC
NC
NC
NC
PGM
PGM
PGM
PGM
PGM
PGM
PGM
PGM
5
6
7
8
12 11 10 9
MX-ROX8T
The ROX8R/8T is an additional feature to the Matrix panel, which will enable all 12 programmable outputs on
the matrix panel to be used. (Internal sounders, smoke detectors may be connected to the output expander.
See cabling restrictions in section 4 for the KEN values, which may be used with the output expander.
NOTE: The relay output expander provides voltage free change over contacts. (This is more flexible
and can isolate the circuit from the system).
NOTE: In order to create a tamper loop for a Matrix 424, the connection from KTR must go into a zone
programmed as ‘Tamper’; Other terminal connections as the same as for the Matrix 832.
