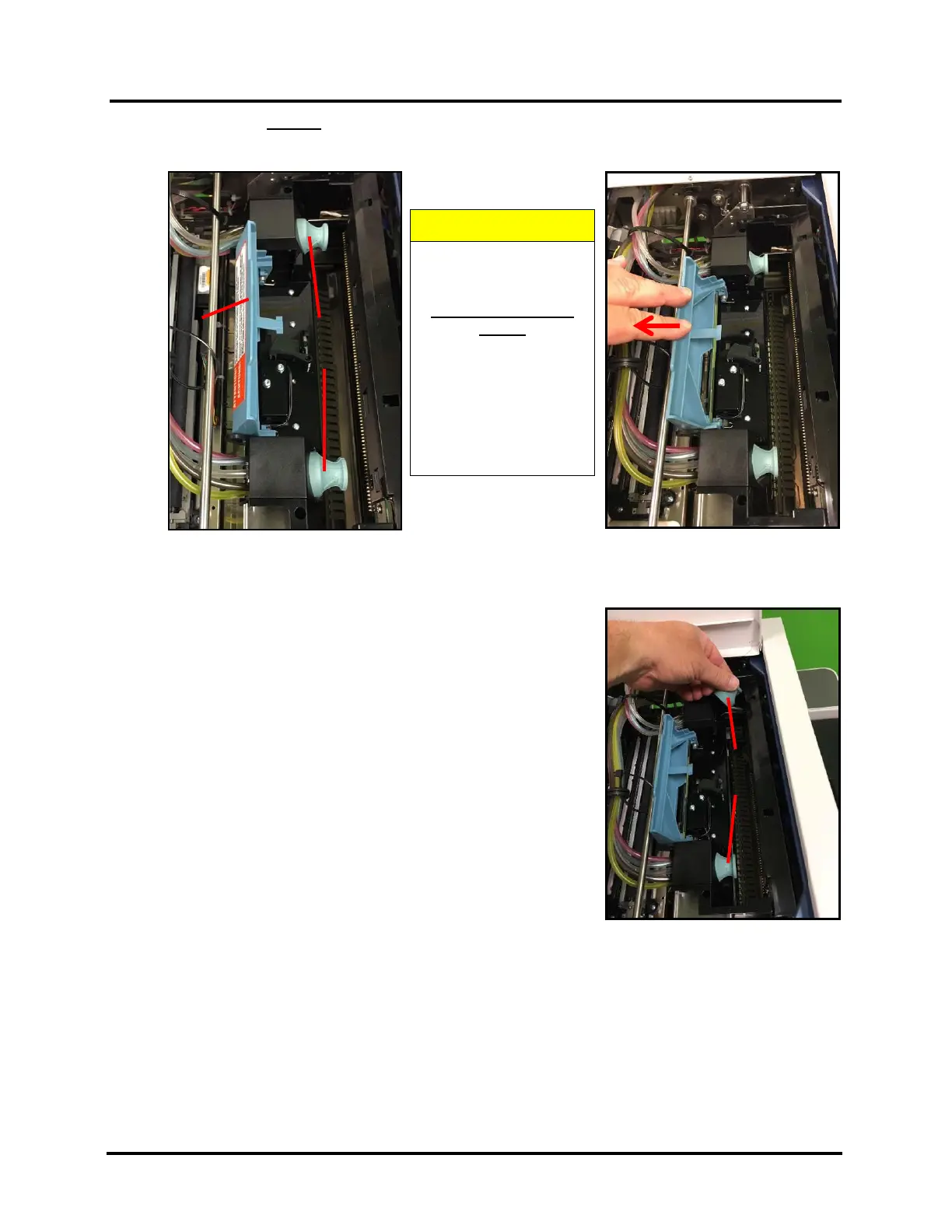

4. Fully open the released Printhead Latch [1]. This will fully retract the Ink Revolver Couplings.
Ink Revolver Couplings are shown with Fluidic Cap Protectors [2] installed, in images below.
5. Remove Fluidic Cap Protectors [2], if present, on Ink Revolver
Couplings. Save these items. They should be used to seal and
protect the open ink system whenever a Printhead Cartridge is not
installed.
If the Printhead Latch
failed to release, don’t
force the latch open.
Severe damage will
result.
Release the Latch
using the
“Release Printhead”
or “System Deprime”
buttons on the
Touchscreen or
Toolbox.
