882 Video Test Instrument User Guide (Rev A.35) 651
TintAlign
Description
Toshiba

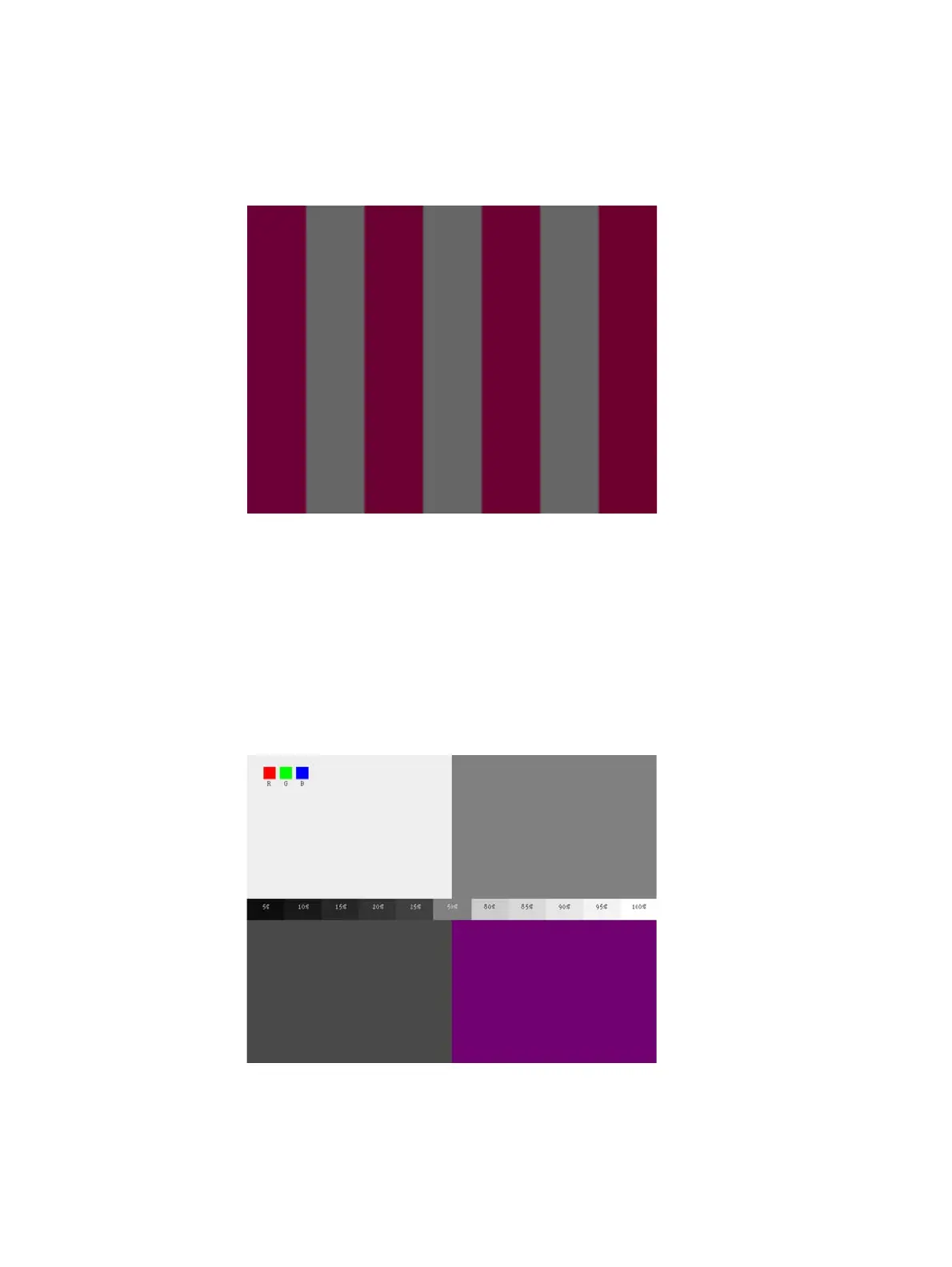

Description Special test image developed per customer specifications. There are two sub images, the
secondary image is depicted below. The top half of the image has three small boxes (red,
green, blue) with the upper left half at 92.7% luminence and the upper right half at 50%
luminence. There is a series of 11 small boxes of increasing luminence left to right with the
luminence identified in text. The lower left quarter of the image is 28.5% luminence and
the lower right is magenta at 44.3 IRE.
