652 Appendix B Image Reference
TPVAOC1 and TPVAOC2

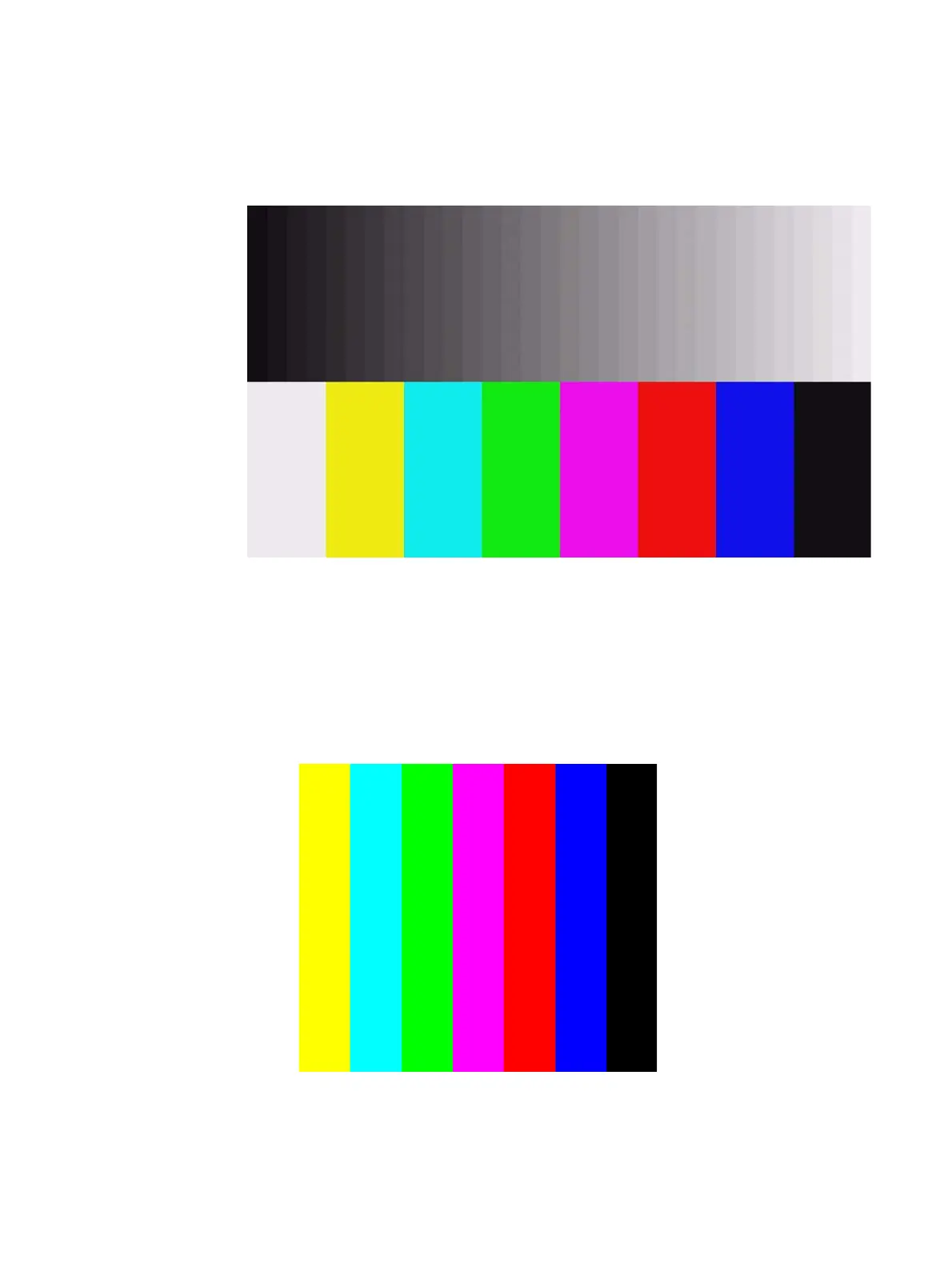

Description The TPVAOC1 pattern is shown below.
TVBar100 & TVBar_75 (TV formats only)
Description The image consists of seven vertical bars that fill the entire active video area. The color
and order of the bars is shown in the figure below. The TVBar100 image has a peak video
level of 100 IRE and the TVBar_75 image has a peak video level of 75 IRE.
The TVBar100 image is shown below.
Test Color video performance
